Network Rack, V-Rack Wall Mount Brackets w/ Tapped Rails

SKU: WR-K10-3441-2V
Rack Units
Made in USA

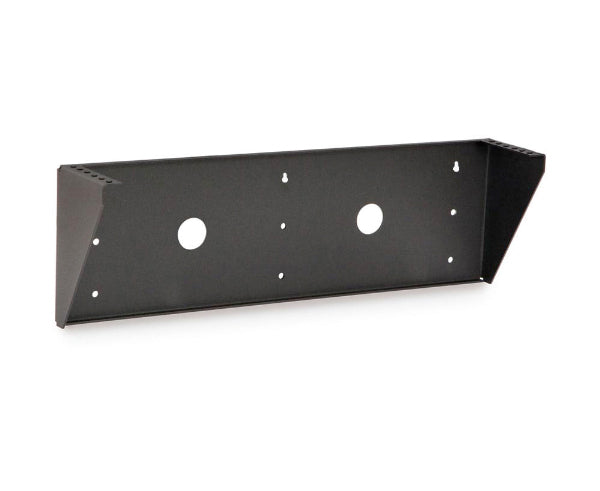

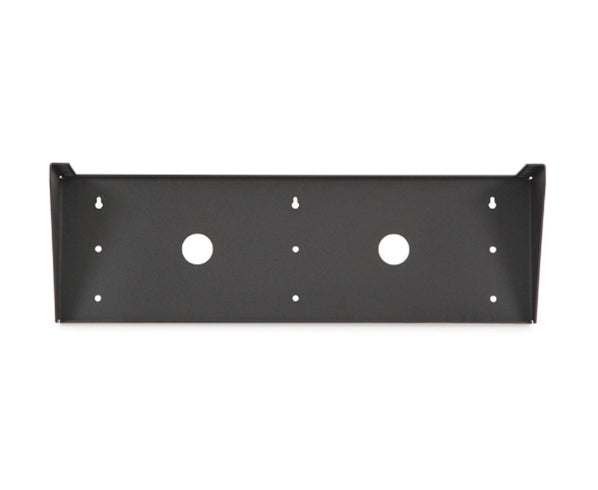

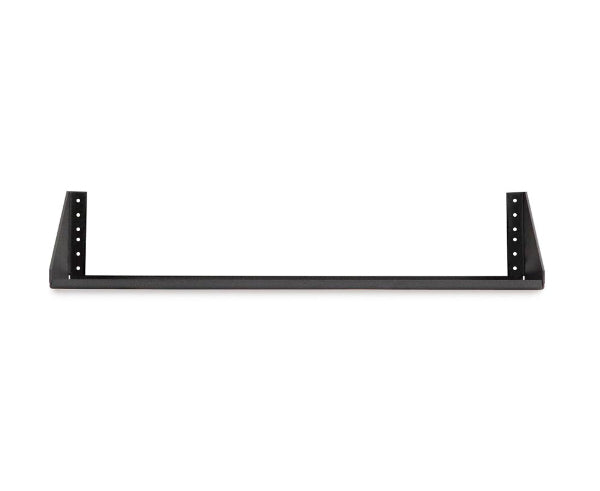

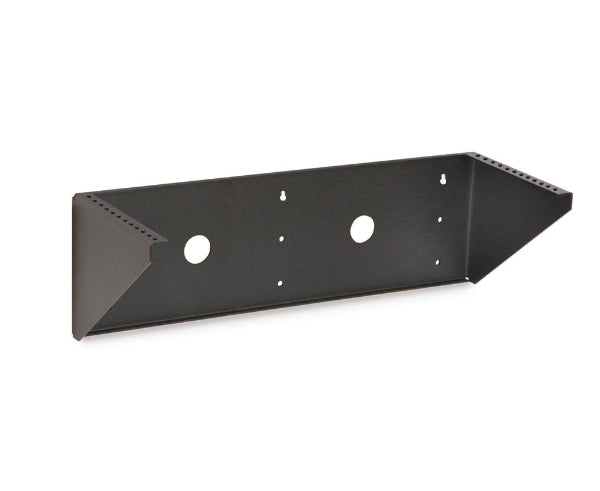

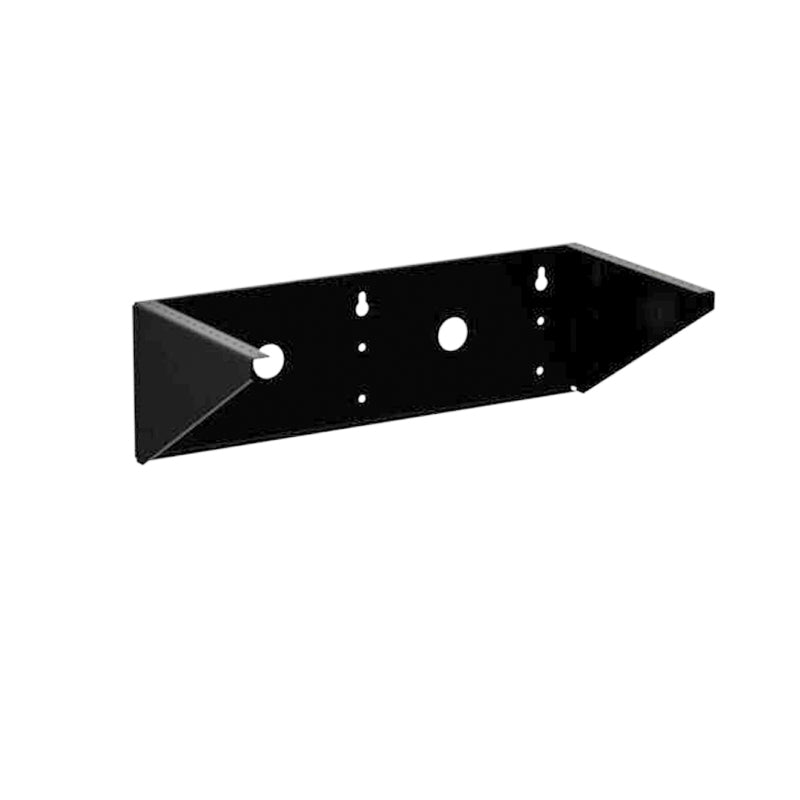

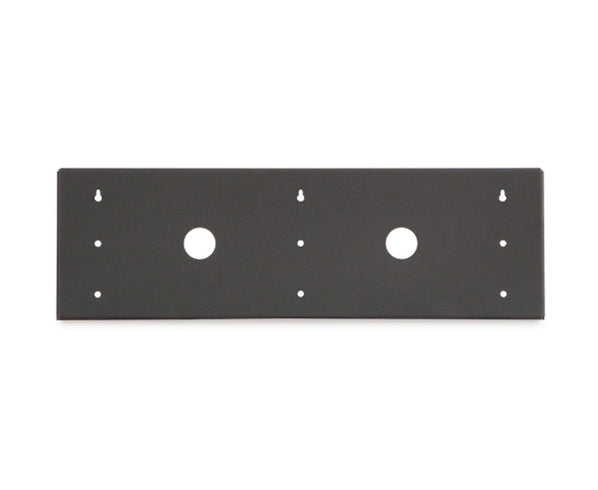

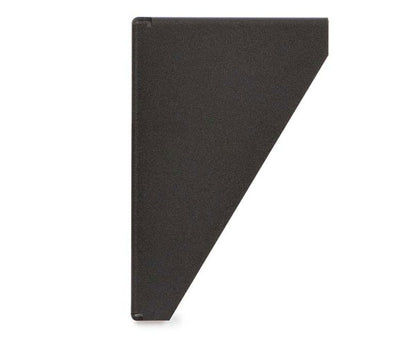

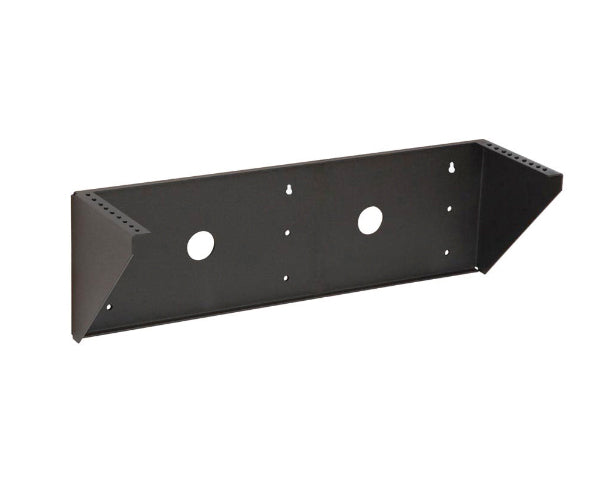

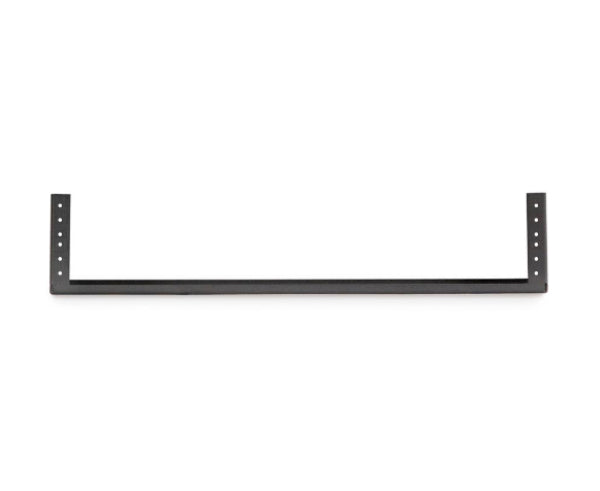

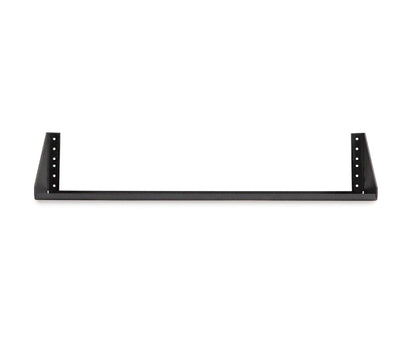

V-Rack Wall-Mount Bracket

Kendall Howard V-Racks allow you to vertically or horizontally mount servers or other rack-mountable devices regardless of depth. The V-Racks with 10-32 tapped rails are great for smaller rackmount equipment. Designed to mount on a wall or under a desk, the Kendall Howard V-Rack provides users more versatility on where they can place their products while saving them space.

  • Low profile design
  • Tapped rails
  • Includes 10-32 Rack Screws
  • No depth restrictions
  • 150 lb. weight capacity
  • 19" EIA 310-D compliant
  • Made in the USA
  • Limited Lifetime Warranty



  • Low Profile Design - The V-Rack sticks out less than 4" from the wall! Mounting equipment like this is perfect for applications where space is at a premium.
  • No Depth Restrictions - The open design allows you to install servers, switches, and other network equipment regardless of depth.
  • Multiple Uses - Designed to mount to the wall, under a desk or any surface to provide a 19" EIA compliant rail system where needed. Users needing a 4-point mounting system can effectively do so by using two V-Rack systems.
  • Tapped Rails - Tapped rails are great when mounting small rackmount equipment. This rail style is especially useful for one-time installations.



Depth 3.89" (2U), 5.64" (3U), 7.39" (4U)
Width 19.25"
Height 6"
Weight 4.00 lbs. (2U), 4.50 lbs. (3U), 5.00 lbs. (4U)
Weight Capacity 150 lbs.
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish

V-Rack Wall Mount Bracket

Additional Information

Additional Information

Network Wall Rack & Bracket System Accessories

The network wall rack provides innovative networking and cable management solutions, especially when floor space is limited. Install a network wall rack and you can keep networking cables conveniently out of the way and organized. We offer a variety of network wall racks and bracket solutions including: swing-out open frame wall mounts, swing-out brackets, V-line open frame wall mounts and brackets. Our network wall rack solutions will help maximize the efficiency of your system.

To learn more about our Network Wall Racks & Wall Brackets please visit our overview page. Kendall Howard's V-Rack Wall Mount Brackets can be combined with a wide array of products such as:

What's in the Box?

What's in the Box?

2U V-Rack

  • Qty 1 - 2U V-Rack
  • Qty 12 - 10-32 Rack Screws

    3U V-Rack

    • Qty 1 - 3U V-Rack
    • Qty 18 - 10-32 Rack Screws

      4U V-Rack

      • Qty 1 - 4U V-Rack
      • Qty 24 - 10-32 Rack Screws
