Description
Description
Neutral Connectors 1/0-14 AWG and 6-14 AWG wire holes
Primus Cables’ multiple combination connectors are made from aluminum and are tin-plated for low contact resistance. Suitable for use with both copper and aluminum conductors.
Features
Features
- Multiple combination connectors are made from aluminum and are tin-plated for low contact resistance.
- Suitable for use with both copper and aluminum conductors.
- Each connector contains a combination of 1/0-14 AWG and 6-14 AWG wire holes.
- Economical and compact due to innovative design and hole spacing.
- Dual rated for use with aluminum and copper cables.
Specifications
Specifications
| Part# | No. of 4-14 AWG Circuits | No. of 1/0 - 14 Circuits | Main Lug Size | Mounting Base | Length (in.) | Height (in.) | Width (in.) |

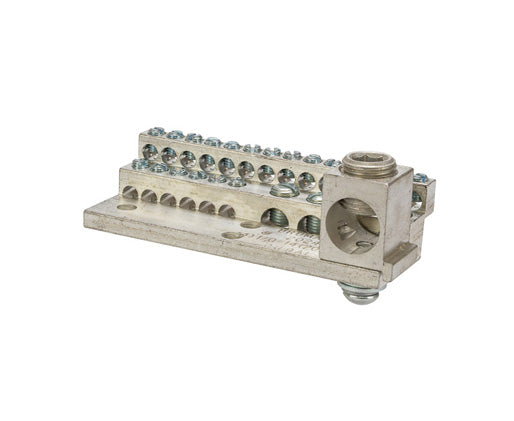

| NPNB-2024M | 20 | 4 | 350-6 | No | 4.457 | 1.525 | 1.687 |

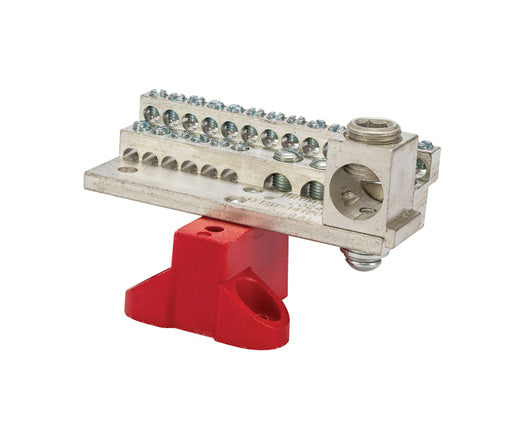

| NPNB-2024MB | 20 | 4 | 350-6 | Yes | 4.457 | 2.900 | 2.437 |

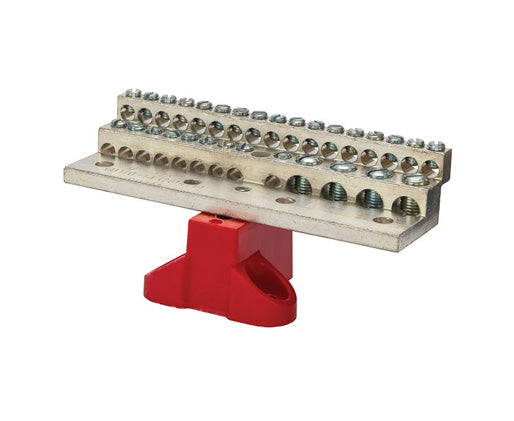

| NPNB-2030B | 26 | 4 | None | Yes | 5.244 | 2.400 | 2.437 |

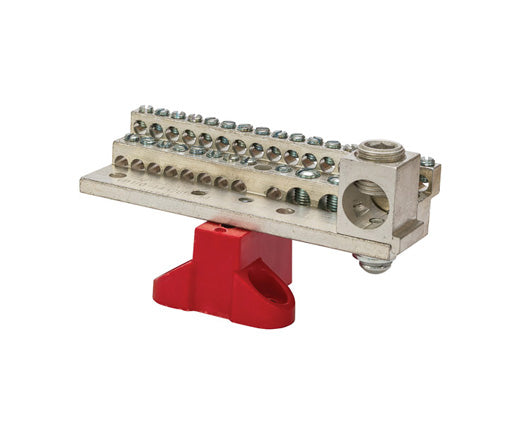

| NPNB-2030MB | 26 | 4 | 350-6 | Yes | 5.369 | 2.900 | 2.437 |

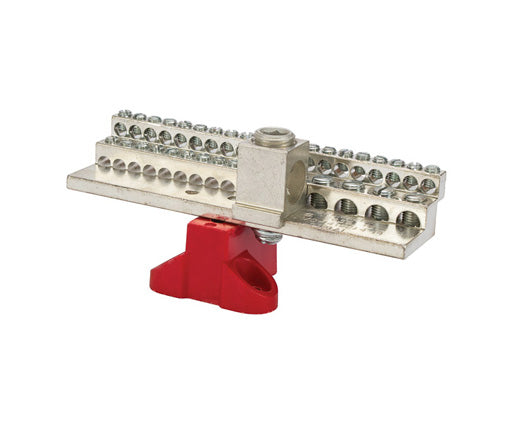

| NPNB-2036MB | 32 | 4 | 350-6 | Yes | 6.281 | 2.900 | 2.437 |

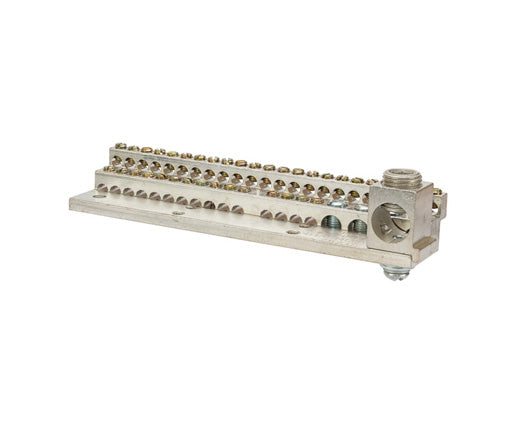

| NPNB-2042M | 38 | 4 | 350-6 | No | 7.193 | 1.525 | 1.687 |

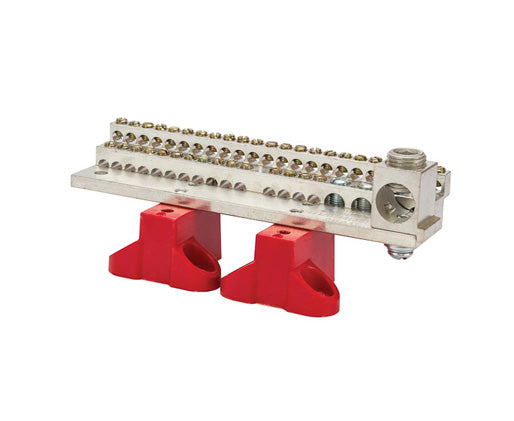

| NPNB-2042MB | 38 | 4 | 350-6 | Yes | 7.193 | 2.900 | 2.437 |
What's In The Box
What's In The Box
- Qty 1 - Neutral Connector 1/0-14 AWG and 6-14 AWG wire holes
