Description

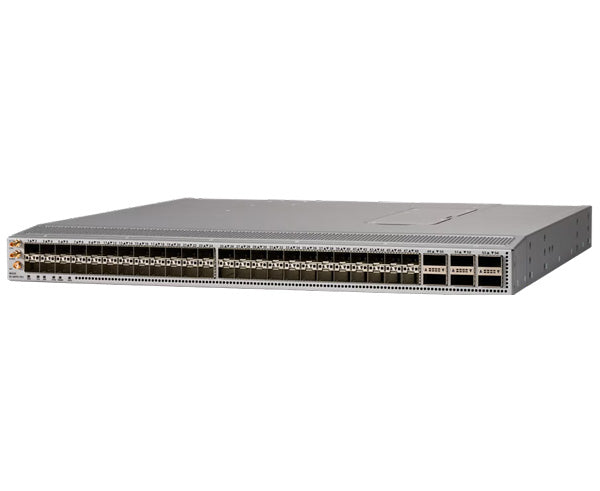

The Cisco Nexus 93180YC-FX3 Switch is a 1RU switch that supports 3.6 Tbps of bandwidth and 1.2 Bpps. The 48 downlink ports on the 93180YC-FX3 are capable of supporting 1-, 10-, or 25-Gbps Ethernet, offering deployment flexibility and investment protection. The 6 uplink ports can be configured as 40 or 100-Gbps Ethernet, offering flexible migration options. The Cisco Nexus 93180YC-FX3 switch supports standard PTP telecom profiles with SyncE and PTP boundary clock functionality for telco data-center edge environments.
Features
- 48 100M/1G/10GBASE-T ports (ports 1-48)
- 6 40/100-Gigabit ports QSFP28 (ports 49-54)
- Two management ports (one 10/100/1000BASE-T port and one SFP port)
- One console port (RS-232)
- 1 USB port
Specifications
Specifications
| Specification | |
|---|---|
| Dimensions (W x D x H) |
17.3 x 19.6 x 1.72 in. (43.9 x 49.6 x 4.4 cm) |
| Form Factor | 1 RU |
| Ports | Downlinks: 48 x 1/10/25G SFP28 ports Uplinks: 6 x 40/100G QSFP28 ports |
| 1/10 GE fiber ports | 48 |
| 25 GE ports | 96 |
| 40 GE ports | 16 |
| 100 GE ports | 6 |
| Latency (microseconds) | ~1 |
| Buffer (MB) | 40 |
| Management Ports | 1 port: 1 RJ-45 |
| Fans | 4 |
| Power supply (Watts) 2 per switch | 650 |
| Typical Power (Watts) | 375 |
| System Memory | Default: 16GB Expandable: 16GB |
| Frequency (AC) | 50 to 60 Hz |
| AirFlow | Port-side intake and exhaust |
| Acoustics |
Port-side exhaust: Fan speed at 50%:63.4 dBA Fan speed at 70%:74.3 dBA Fan speed at 100%: 83.4 dBA Port-side intake: Fan speed at 50%:64.4 dBA Fan speed at 70%:76.1 dBA Fan speed at 100%: 85.4 dBA |
| MTBF (Mean Time Between Failures) | 303,190 Hours |
| RoHS compliance | Yes |
