Description

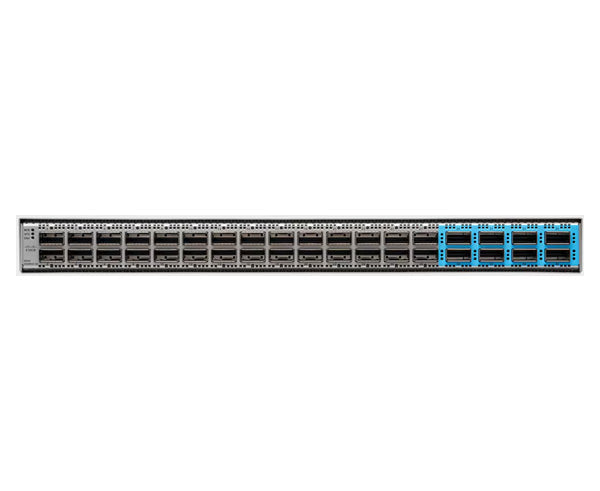

The Cisco Nexus 93600CD-GX Switch is a 1RU switch that supports 12 Tbps of bandwidth and 4.0 bpps across 28 fixed 40/100G QSFP-28 ports and 8 fixed 10/25/40/50/100/200/400G QSFP-DD ports. The 28 ports support 10/25-Gbps.
Features
- High-performance data center switches designed for modern cloud, AI/ML, and scale-out network fabrics.
- Supports Cisco ACI (policy-based automation) or Cisco NX-OS operating modes.
- Architectural Flexibility
- Cisco Nexus 9000 Series Switches support Cisco Application Centric Infrastructure (Cisco ACI), Cisco NX-OS VXLAN EVPN, Cisco IP Fabric for Media, Cisco Nexus Data Broker, and IP routed or Ethernet switched Layer-2 fabrics using a comprehensive set of unicast and multicast IPv6/IPv4 and Ethernet protocols.
- Purpose-built Cisco NX-OS Software operating system with comprehensive, proven innovations. The operating system is modular, with a dedicated process for each routing protocol: a design that isolates faults while increasing availability.
- Industry-leading Cisco Software-Defined Networking (SDN) solution with Cisco ACI support
- Support for standards-based VXLAN EVPN fabrics, inclusive of hierarchical multisite support (Refer to VXLAN network with MP-BGP EVPN control plane for more information.)
- Three-tier BGP architectures, enabling horizontal, nonblocking IPv6 network fabrics at web scale
- Comprehensive protocol support for Layer-3 (v4 and v6) unicast and multicast routing protocol suites, including BGP, Open Shortest Path First (OSPF), Interior System to Interior System (IS-IS), Enhanced Interior Gateway Routing Protocol (EIGRP), Routing Information Protocol Version 2 (RIPv2), Protocol Independent Multicast Sparse Mode (PIM-SM), Source-Specific Multicast (SSM), and Multicast Source Discovery Protocol (MSDP)
- Segment Routing (SR and SRv6) allows the network to forward MultiProtocol Label Switching (MPLS) packets and engineer traffic without Resource Reservation Protocol (RSVP) Traffic Engineering (TE). It provides a control-plane alternative for increased network scalability and virtualization.
- Cisco IP Fabric for Media helps you migrate from an SDI router to an IP-based infrastructure. In an IP-based infrastructure, a single cable has the capacity to carry multiple bidirectional traffic flows and can support different flow sizes without requiring changes to the physical infrastructure.
- Cisco Nexus Dashboard Data Broker provides customers complete observability into their network and solution(s) that can help them to identify and mitigate security threats, realize and remediate performance bottlenecks, adhere to data compliance, and have insight into capacity-planning operations.
Specifications
Specifications
| Specification | |
|---|---|
| Dimensions (W x D x H) |
17.37 x 25.5 x 1.72 in. (44.13 x 64.8 x 1.72 cm) |
| Form Factor | 1 RU |
| Ports | 28 x 100/40-Gbps QSFP28 ports and 8 x 400/100-Gbps QSFP-DD ports |
| Supported speeds |
|
| Usage | ACI Spine & Leaf / NXOS |
| Latency (microseconds) | ~1.7 |
| Buffer (MB) | 80 |
| Management Ports | 2 ports: 1 RJ-45 and 1 SFP |
| Fans | 5+1 redundancy |
| Power supplies | 1100W AC, 1100W DC, 1100W HVAC/HVDC |
| Typical Power (Watts) | 586 |
| System Memory | Default: 16GB Expandable: 16GB |
| Frequency (AC) | 50 to 60 Hz |
| AirFlow | Port-side intake and exhaust |
| Acoustics | 73.2 dBA at 50% fan speed, 81.8 dBA at 70% fan speed, and 88.8 dBA at 100% fan speed |
| MTBF (Mean Time Between Failures) | 295,515 hours |
| RoHS compliance | Yes |
Compatible
Cisco Optics-to-Device Compatibility
