Description
Description

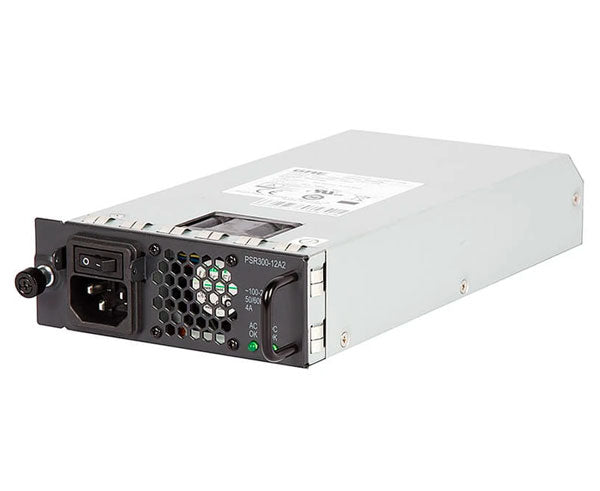

Protect your NVRs with large quantities of hard disk drives from short circuits, overloads, and overvoltage with this NVR Redundant Power Supply. The front panel indicator lights will alert you to normal and abnormal conditions while providing output protection.
Features
Features
- Redundant Power Supply for recorders with large quantities of hard disk drives, such as NR6416 & NR12816
- Protection against short circuit, overload & overvoltage
- Front panel indicator lights alert to normal and abnormal conditions
- Meets regulatory standards: UL, TUV, CE
Specifications
Specifications
| AC INPUT | |
|---|---|
| Voltage | 90~264VAC |
| Frequency | 47~63Hz |
| Power factor | ≥0.95 |
| Input current | ≤4A |
| Input protection | Input under voltage or over voltage |
| DC OUTPUT | |
| Voltage / Electricity | +12VDC/25A, +12Vsb/1A |
| Source Regulation | ±1% |
| Load Regulation | ±3% |
| Stabilized Voltage Precision | ±5% |
| Output Power | 312W max |
| Output Protection | Output short circuit, over current & over voltage protection |
| GENERAL | |
| Indicator Light | Normal: Green "On"; Abnormal: Green "Off" |
| Working Temperature | 0~55°C |
| Storage Temperature | -40~70°C |
| Heat Dissipation | Fan draft design |
| Dimension (D×H×W) | 234.9 × 40.13 × 101.6mm |
| CONFORMITY STANDARDS | |
| EMC | EN55022, EN55024 |
| NEBS | GR-63-CORE ISSUE 2 |
| Safety | IEC60950-1, GB4943-2001 |
| Approvals | UL, TUV, CE |
What's in the Box
What’s in the Box
- Qty 1 - NVR Redundant Power Supply Module
- Qty 1 - Power Cable
- Qty 1 - Quick Start Guide or User Manual
- Qty 1 - Mounting Screws (set)
- Qty 1 - Protective Packaging (box or anti-static bag)
