Description
2.4GHz 867Mbps 9dBi Outdoor CPE
The EAP211 highlights a versatile outdoor networking solution capable of covering distances up to 0.62 miles (1 km), making it ideal for remote network setups. It features a 70° beamwidth for broader deployment, allowing one central access point to serve multiple distributed devices without requiring additional central units. With three ports, it supports connecting more cameras and devices directly, eliminating the need for an extra switch. Designed for durability, it boasts an IP65 weatherproof rating and operates in extreme temperatures ranging from -40°F to 158°F (-40°C to 70°C). The device offers flexible management options, functioning in both standalone and SDN modes for streamlined batch deployment and remote control via app or web interface.
Long-Distance PtMP & PtP Wi-Fi Transmission, Perfect for Multiple Scenarios
Up to 0.62 mi (1km) Distance: Ideal for setting up networks in remote locations.
Up to 70° Beamwidth for Wider Deployment: One central AP covers more distributed APs and cameras, eliminating the need for multiple central APs.
Three Ports for More Devices: Connect more cameras and devices without an extra switch
IP65 Weatherproof for Outdoor Use: Durable performance with IP65 rating and operating range of -40°F to 158°F (-40°C to 70°C).
Standalone or Omada SDN Mode: Flexible dual modes for batch deployment and remote management via the Omada app or Web UI.
Outdoor PtP (Point-to-Point) Wi-Fi Connection
Extend Wi-Fi to Additional Buildings: Extend your home network or Wi-Fi to your shop, barn, garage, farm, storehouse, guesthouse, or RV.
Extend Wi-Fi to Additional Offices: Provide 550 Mbps bandwidth within a 328ft (100m) range using the EAP215-Bridge KIT or EAP211-Bridge KIT. *
*Tested in an open area without obstacles on a sunny day. Actual range and throughput depend on the transmission power and environmental factors such as wireless interference, obstacles, weather, etc.
Elevator PtP Wi-Fi for Surveillance: Record real-time video to an NVR with virtually no hardwiring required
Outdoor PtMP (Point-to-Multipoint) Wi-Fi for Surveillance
Parking Lots: Remotely connect cameras to reduce crime and accidents
Farms / Orchards: Remotely connect cameras to protect your property
Construction Sites: Rapidly deploy wireless networks to monitor real-time construction progress or manage logistics remotely.
Easy Setup and Installation
LED Signal Indicator for Easy Alignment
Pole/Wall Mount for Easy Installation
Features
Features
- 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.
- Ideal for long-range wireless transmission up to 1 km
- Auto-pairing and agile LEDs for efficient deployment
- 3× Gigabit Ethernet ports for more high-speed IP camera connections
- Supports Omada SDN for remote and centralized management.
- IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.
- Supports Passive PoE for flexible deployment (adapter included)
Specifications
Specifications
| HARDWARE FEATURES | |
|---|---|

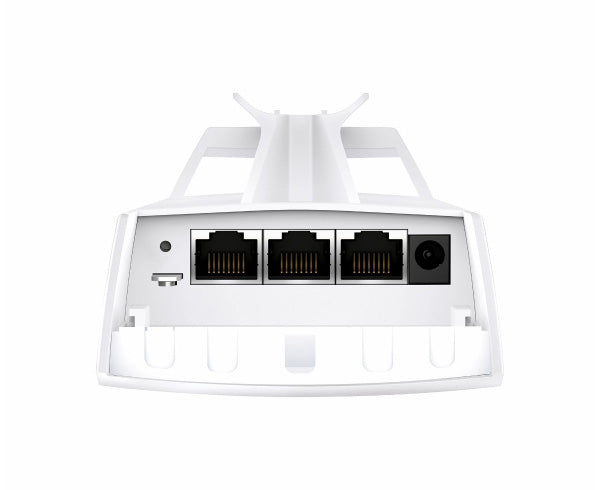

| Interface | 3x Gigabit Ethernet Ports*6 |
| Button | Reset |
| Power Supply | 12V DC / 24V Passive PoE (Passive PoE adapter included.) |
| Max. Power Consumption | 11.5W |
| Dimensions (W x D x H) | 3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm) |
| Antenna | Internal 2×2 Dual-polarized directional MIMO antennas 5 GHz: 7.0 dBi Horizontal:70°, Vertical: 70° |
| Weatherproof Enclosure | IP65 |

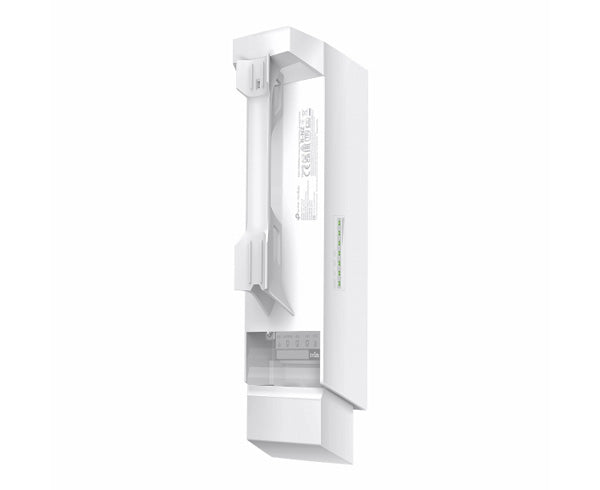

| Mounting | Pole Mounting (Accessories included) |
| WIRELESS FEATURES | |
| Coverage | 1000m(3280ft)5 |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac |
| Frequency | 5 GHz |
| Signal Rate | 5 GHz: Up to 867 Mbps |
| Wireless Functions | • Mesh*4 • MU-MIMO: 5G 2x2 MU-MIMO DL • Load Balance • Seamless Roaming(802.11r) • Beamforming • Airtime Fairness • Multiple SSIDs:8 • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • MAC Authentication • Static IP/Dynamic IP |
| Wireless Security | • VLAN • Access Control • Rogue AP Detection • Captive Portal Authentication*4 • Maximum number of MAC Filter: 4,000 • WPA-Personal/Enterprise, WPA2-Personal/Enterprise |
| Transmission Power | • CE: <23dBm (5 GHz, band 1/2, EIRP); <28.5dBm (5 GHz, band3, EIRP) • FCC: <22dBm (5 GHz, band1/4) |
| Management Features | |
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller. |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes |
| OTHERS | |
| Certification | CE, FCC, RoHS |

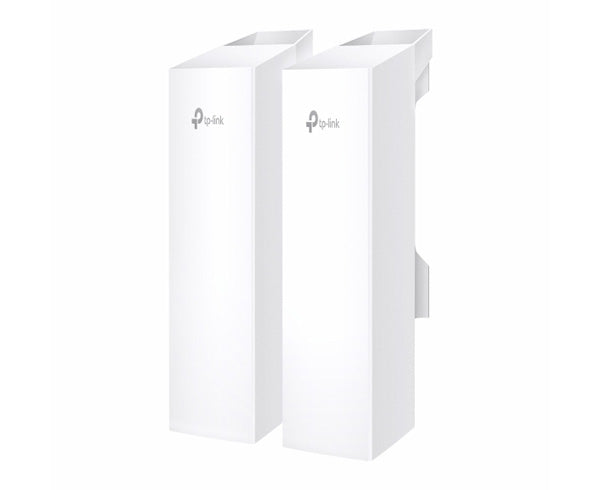

| Package Content | • EAP211-Bridge KIT • Passive PoE Adapter • Power Cord • Installation Guide • Mounting Kit |
| Environment | • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing. |
Installation Information
How to setup EAP Bridge Kit
single gang cover Video

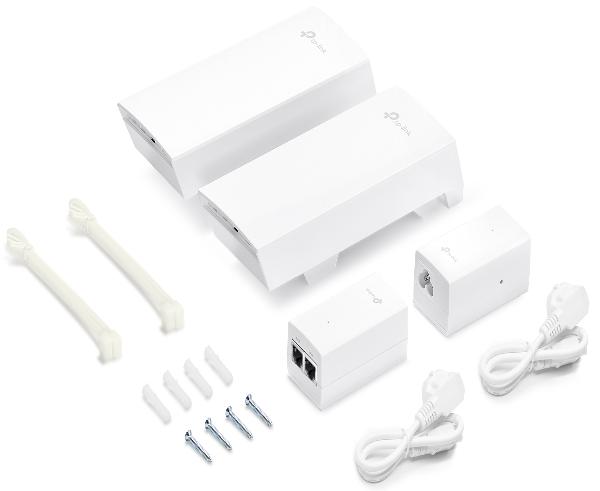

What’s In The Box
