Description
Optical Fusion Splicer and Cleaver Kit

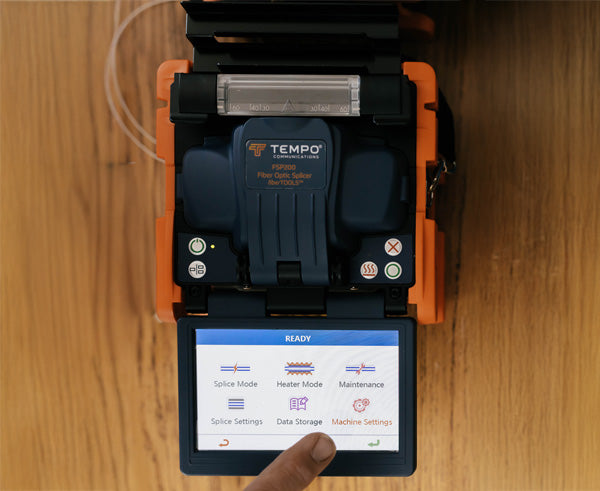

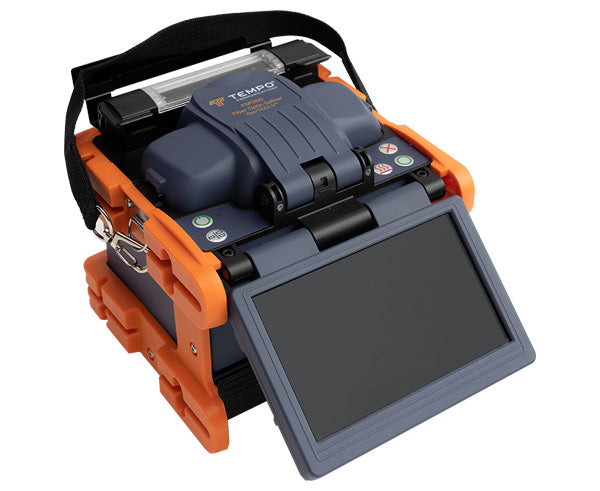

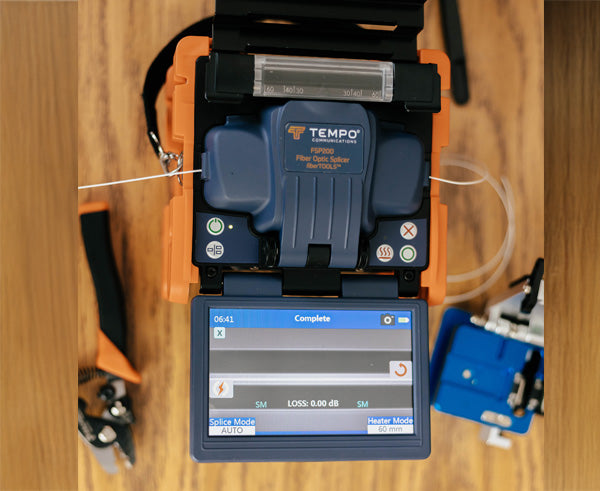

The FSP200 touchscreen optical fusion splicer uses core alignment technology, which allows the technician to reliably fuse fiber optic cables with low splice losses in as little time as seven seconds. The intuitive user interface keeps the learning curve short and enables the technician to be productive in a very short time. FTT(x), P2P installations, and all standard fibers are supported with pre-qualified splicing profiles that can be modified and subsequently stored for more demanding fiber applications.
The FSP200 uses the Tempo Communications Splice on Connector, which provides a low loss, low return loss, and reliable connection that surpasses the failure-prone mechanical connector. Splice-on connectors also allow for easier fiber routing, which reduces fiber preparation since the splice-on connector is pre-cleaved and also eliminates the need for a splice tray.
Other manufacturers’ splice-on connectors are compatible with the Tempo Communications fusion splicers with the use of an optional splice-on connector adapter.
- AFL
- Belden (contact Belden for adapter FXFSSHFM3)
- Corning
- FIS
- Hubbell
- Sumitomo
The FSP200 is available in the popular Contractor Kit (FSP200-KIT2) which bundles the fusion splicer, FCL200 cleaver, an extra battery, and fiber strippers so the technician has all of the tools they will need to get the job done right. The Splicer and Cleaver Kit configuration (FSP200-KIT1) includes the FSP200 fusion splicer and FCL200 cleaver. Backed by a 3-year warranty.
Features
Features
- Core alignment six motor technology
- Lowest insertion loss splicing technology
- Seven seconds splicing
- Five-second boot time
- 200 complete cycles per battery charge
- Compact and light weight for the most demanding jobs
- Compatible with loose tube fibers
- Screen shot capable
- Drop tested to 76cm
- Eighteen second shrink time
- 5,000 burns electrode life
- Attenuation mode capable
- Password protection for anti-theft
- Compatible with splice on connectors, SC, LC, FC, and ST
- IP52 compliant
- On-board instruction manual
- 5.0” Color LCD touchscreen
- 3-year warranty
Specifications
| Optical Fusion Splicer | |
| Applicable Fibers | SSM (G.652); MM (G.651); DS (G.653); NZDS (G.655); BIF (G.657); EDF |
|---|---|
| Fiber Cleaved Length | 10mm |
| Cladding Diameter | 100 to 1000µm |
| Fiber Count | Single |
| Fiber Aligning Method | Core Alignment |
| Splice Loss | (Typical) 0.02 dB (SM); 0.01 dB (MM); 0.04 dB (DS); 0.04 dB (NZDS & BIF) |
| Splicing Mode | 60 Preset / User Definable Modes |
| Splice Time | 7 seconds |
| Boot Time | 5 seconds |
| Number of Splices Per Battery Charge | 200 (including 60mm heat shrink cycle) |
| Splice Connector | SC, LC, FC, ST |
| Arc Calibration Mode | Automatic & Manual |
| Protection Sleeve Length | 60mm, 40mm, Micro Sleeves |
| Ingress Protection | IP5X (Dust); IPX2 (Water) |
| Storage of Splice Results | 5,000 Results, 100 screenshots |
| Drop Test | 76cm on five axis |
| Tension Test | 2N |
| Fiber Display Magnification | 200x |
| Tube Heating Time | 18 seconds |
| Attenuator Mode | 0.1 to 15 dB |
| Electrode Life | 5,000 Splices |
| Display | 5" Color LCD Touchscreen |
| Connectivity | USB |
| Storage Temperature | -40 to +158F (-40 to +70°C) |
| Operating Conditions | Pressure: 0 to 16,404 feet (0 to 5,000 meters) above Sea Level Humidity: 0 to 95% Temperature: -4 to +131F (-20 to +55°C) |
| Power Supply | 100 to 240V AC Adapter; Li-ion Battery (4400 mAh) |
| Power Supply | 3.74lbs (1.7kg) |
| Dimensions | 4.9" x 4.9" x 5.3" (125 x 125 x 135mm) |
| Password Protection | Yes |
Additional Information
| Product Videos | |
|---|---|
|
How To Perform A Fiber Optic Fusion Splice with Your Tempo Communications 915FS and 915CL |
Fusion Splicing Do It Right the First Time |
|
How To Safely Clean A Fusion Splicer - 915FS & FSP200 |
How to Perform an Arc Calibration |
|
How To Perform a Fusion Splice With Your FSP200 & FCL200 |
|
What's in the Box
What's in the Box

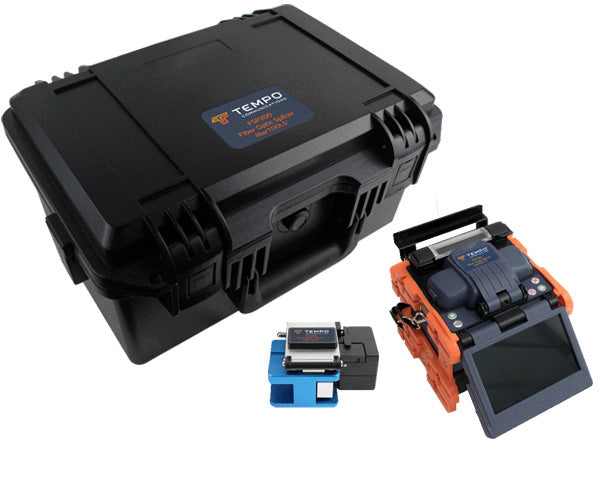

FSP200-KIT1

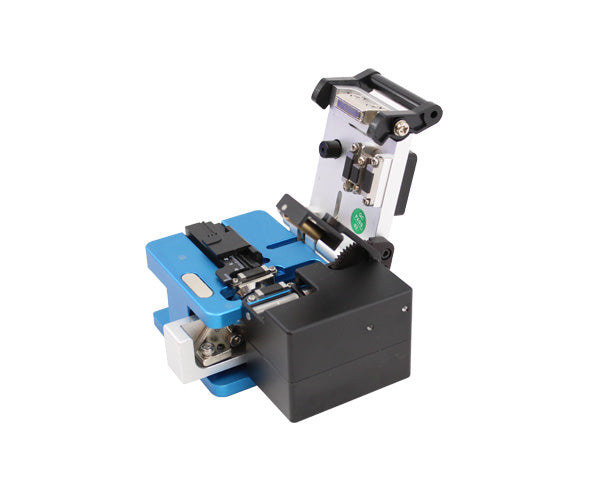

Includes: FSP200 Optical Fusion Splicer and FCL200 Optical Fiber Cleaver
Every FSP200S includes:
- Black carrying case
- Tweezers
- Extra set of electrodes
- USB cable
- 200/250μm Adapter (Pair)
- 900μm Adapter (Pair)
- Splice on Connector oven insert 3 YEAR WARRANT
- Allen key
- Power supply with line cord
- Quick reference card
- Carrying strap
- Cooling tray
- Battery
- Electrode Cleaner
