Description
Description

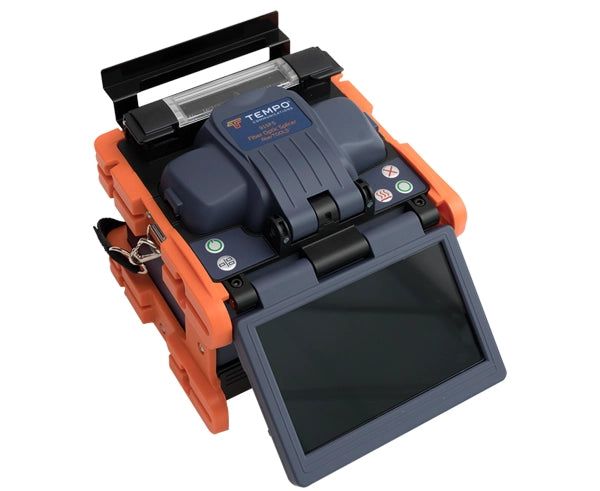

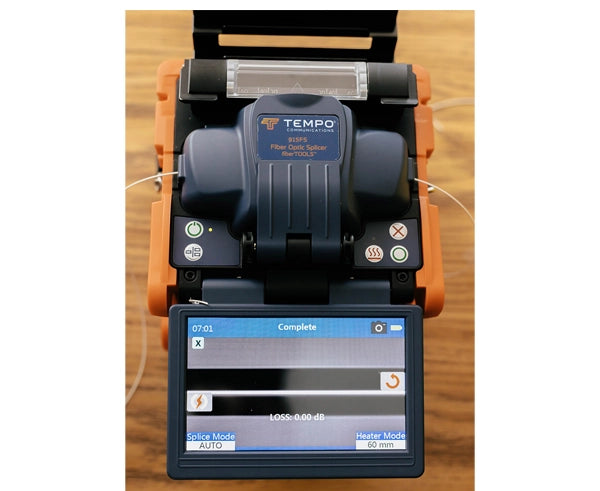

The 915FS touchscreen optical fusion splicer uses active cladding alignment technology which allows the technician to reliably fuse fiber optic cables with low splice losses. Active clad technology splicers provide a more cost-effective splicing alternative to core alignment but still provides low splice losses which is ideally suited for FTTH installations. The intuitive user interface keeps the learning curve short and enables the technician to be productive in a very short time. FTTx, P2P installations, and all standard fibers are supported with pre-qualified splicing profiles that can be modified and subsequently stored for more demanding fiber applications.
The 915FS uses the Tempo Communications Splice on Connector, which provides a low loss, low return loss, and reliable connection that surpasses the failure-prone mechanical connector. Splice-on connectors also allow for easier fiber routing, which reduces fiber preparation since the splice-on connector is pre-cleaved and also eliminates the need for a splice tray.
Other manufacturers’ splice-on connectors are compatible with the Tempo Communications fusion splicers with the use of an optional splice-on connector adapter.
- AFL
- Belden (contact Belden for adapter FXFSSHFM3)
- Corning
- FIS
- Hubbell
- Sumitomo
Features
Features
- Active clad four motor technology
- Seven-second splicing
- Five-second boot time
- 200 complete cycles per battery charge
- Compact and lightweight for the most demanding jobs
- Compatible with loose tube fibers
- Screenshot capable
- Drop tested to 76cm
- Eighteen-second shrink time
- 5,000 burns electrode life
- Attenuation mode capable
- Password protection for anti-theft
- Compatible with splice on connectors, SC, LC, FC, and ST
- IP52 compliant
- On-board instruction manual
- 5.0” Color LCD touchscreen
- 3-year warranty
Specifications
Specifications
| Optical Fusion Splicer & Cleaver Kit | |
| Applicable Fibers | SM (G.652); MM (G.651); DS (G.653); NZDS (G.655); BIF (G.657); EDF |
|---|---|
| Fiber Cleaved Length | 10mm |
| Cladding Diameter | 100 to 1000µm |
| Fiber Count | Single |
| Fiber Aligning Method | Active Clad |
| Splice Loss | (Typical) 0.02 dB (SM); 0.01 dB (MM); 0.04 dB (DS); 0.04 dB (NZDS & BIF) |
| Splicing Mode | 60 Preset / User Definable Modes |
| Splice Time | 7 seconds |
| Boot Time | 5 seconds |
| Number of Splices Per Battery Charge | 200 (including 60mm heat shrink cycle) |
| Splice Connector | SC, LC, FC, ST |
| Arc Calibration Mode | Automatic & Manual |
| Protection Sleeve Length | 60mm, 40mm, Micro Sleeves |
| Ingress Protection | IP5X (Dust); IPX2 (Water) |
| Storage of Splice Results | 5,000 Results, 100 screenshots |
| Drop Test | 76cm on five axis |
| Tension Test | 2N |
| Fiber Display Magnification | 200x |
| Tube Heating Time | 18 seconds |
| Attenuator Mode | 0.1 to 15 dB |
| Electrode Life | 5,000 Splices |
| Display | 5" Color LCD Touchscreen |
| Connectivity | USB |
| Storage Temperature | -40 to +158F (-40 to +70C) |
| Operating Conditions | Pressure: 0 to 16,404 feet (0 to 5,000 meters) above Sea Level Humidity: 0 to 95% Temperature: -4 to +131F (-20 to +55C) |
| Power Supply | 100 to 240V AC Adapter; Li-ion Battery (4400 mAh) |
| Power Supply | 3.3lbs (1.5kg) |
| Dimensions | 4.9" x 4.9" x 5.3" (125 x 125 x 135mm) |
| Password Protection | Yes |
What's in the Box
What's in the Box

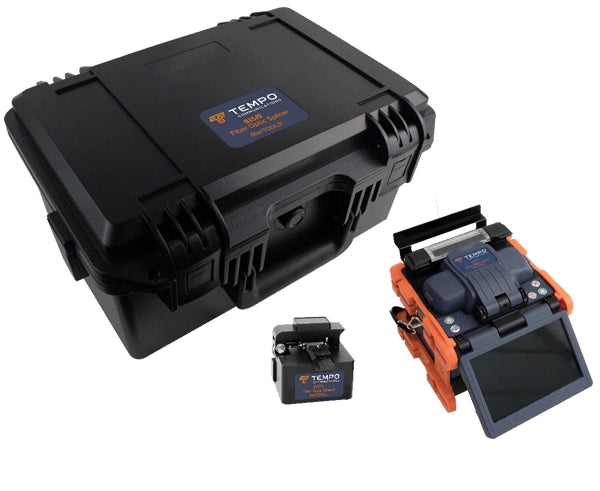

915FS-KIT1

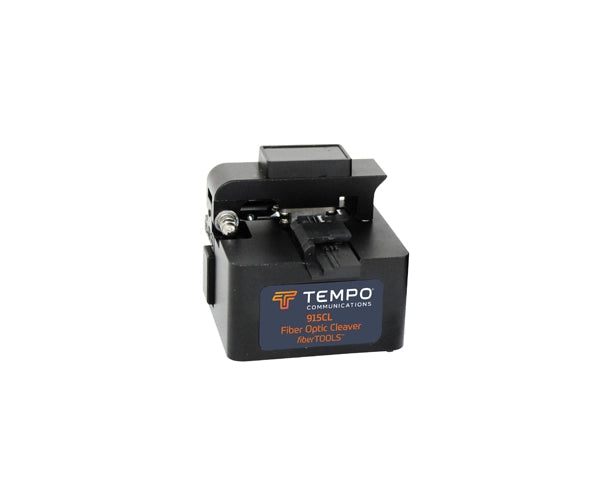

Includes: 915FS Optical Fusion Splicer and 915CL Optical Fiber Cleaver
Every 915FS includes:
- Black carrying case
- Tweezers
- Extra set of electrodes
- USB cable
- 200/250μm Adapter (Pair)
- 900μm Adapter (Pair)
- Splice on Connector oven insert 3 YEAR WARRANT
- Allen key
- Power supply with line cord
- Quick reference card
- Carrying strap
- Cooling tray
- Battery
- Electrode Cleaner
Additional Information
Additional Information
