Description

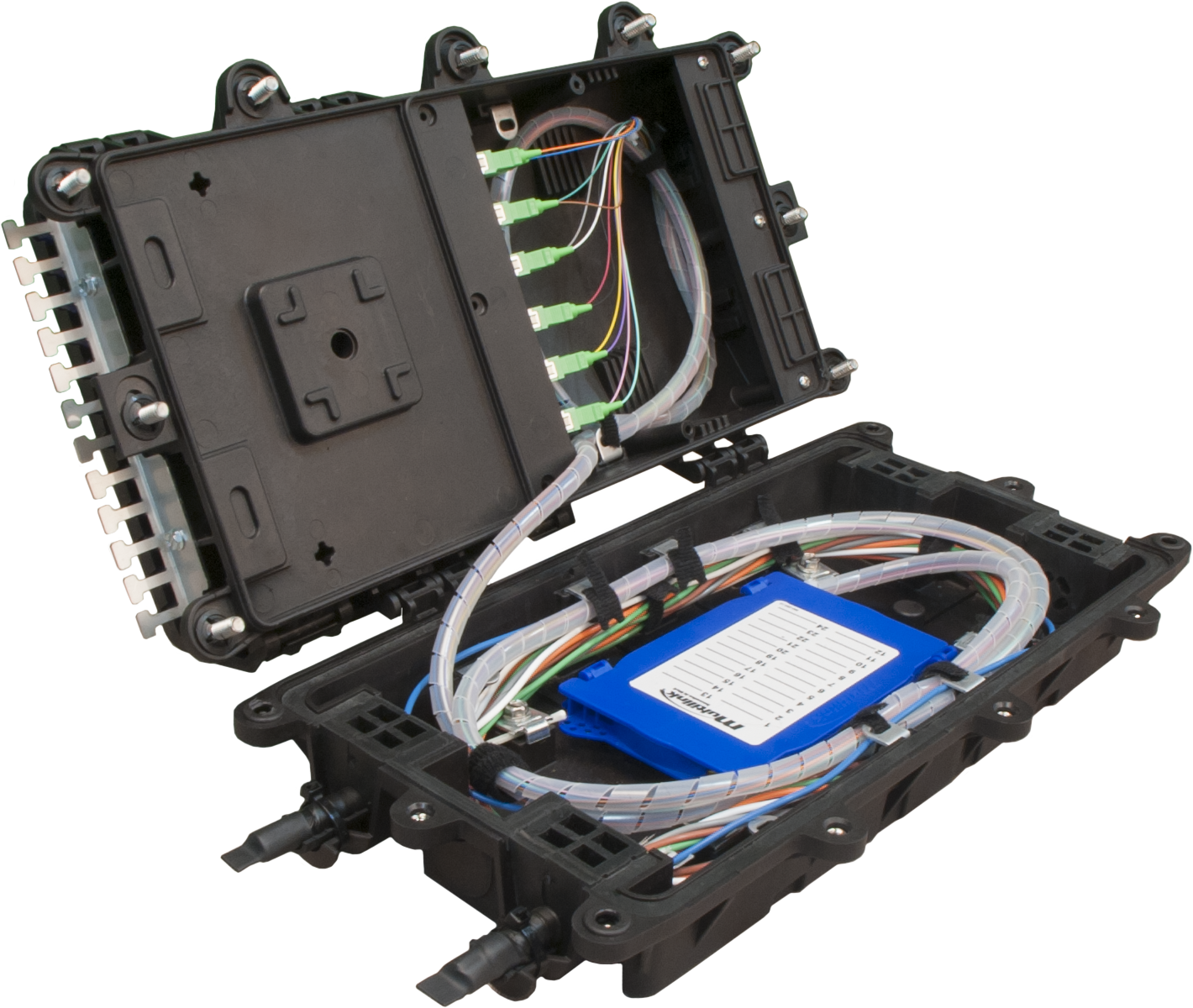

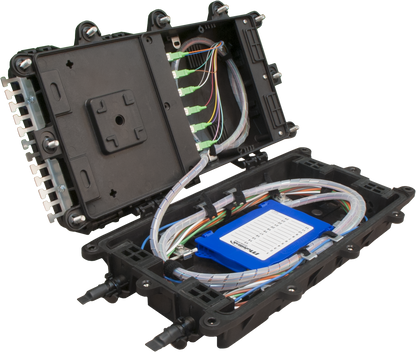

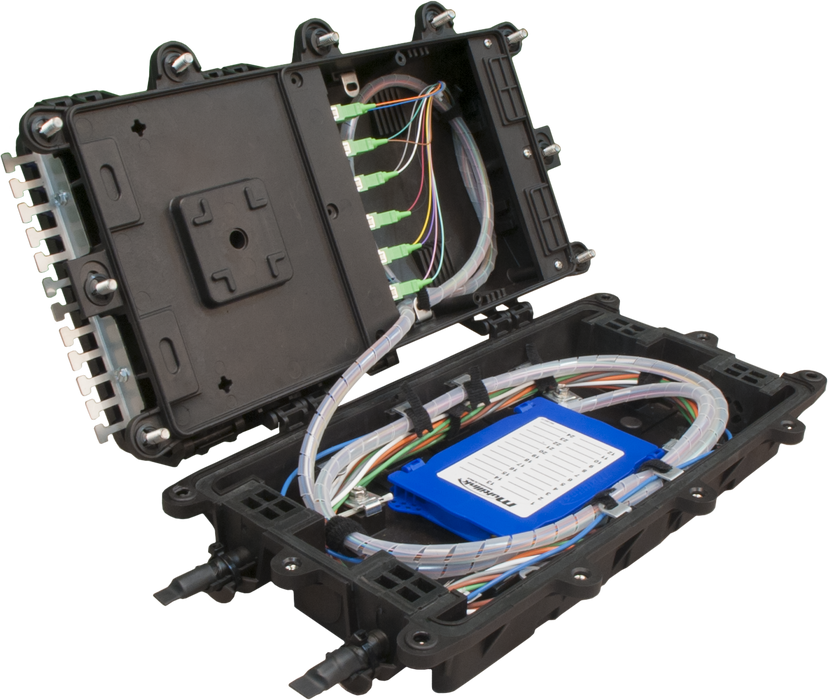

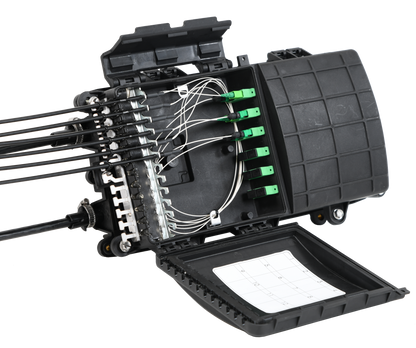

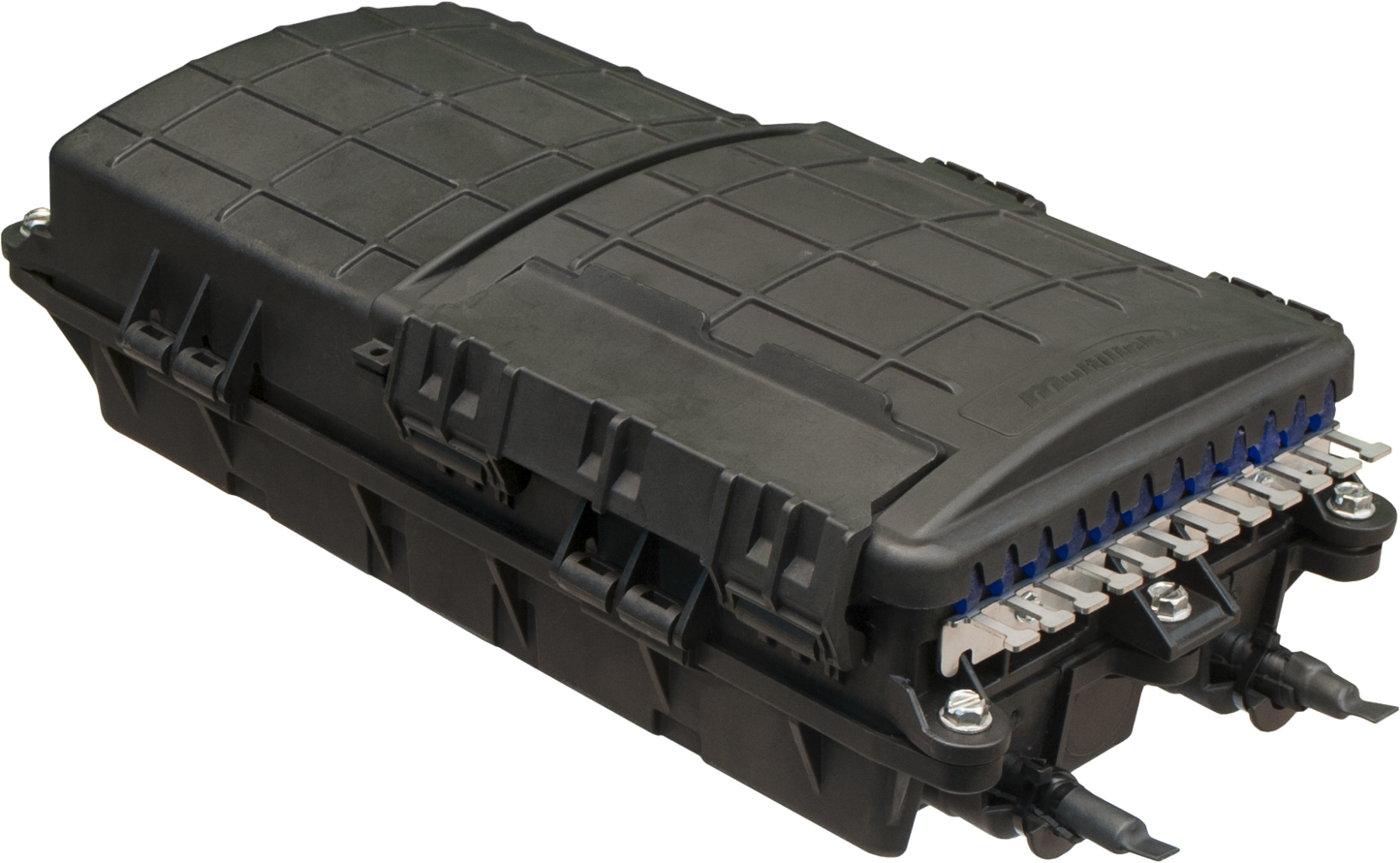

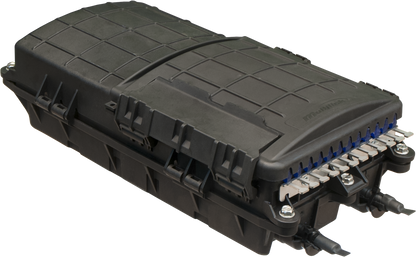

Outdoor Aerial Fiber Optical Cross Connect Splicing Terminal
Optical cross connect splicing terminal offers the fastest hook up and disconnect speeds of any drop cable field connection. The Optima S™ utilizes computer aided engineering for optimal use in the Outside Plant and FTTX networks, with separate compartments for splices and fiber drops. It also utilizes a specially designed precision cost effective drop system with standard bulkhead adapters. The Optima™ S raises subscriber terminal deployment to a new level for field installations. It also has provisions for an expandable feed through capability to other Optima™ S terminal devices. Available in factory terminated OR field installable variations.
Features
Features

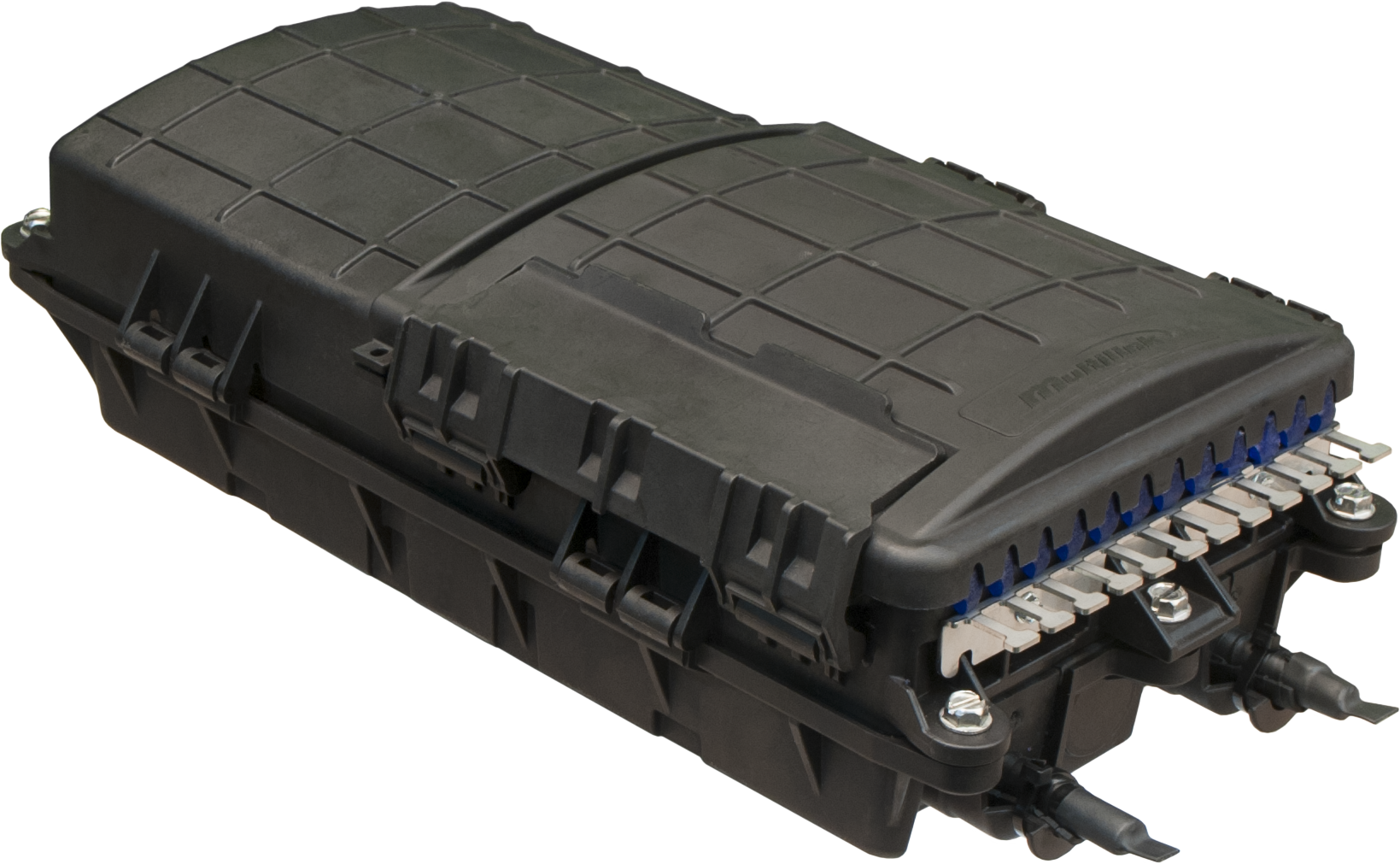

- AERIAL SERVICE
The Optima™ is available in 4, 8 and 12 port configurations for residential distribution, also allowing for pass-through network designs. Has a compact size, comparable to typical line equipment.
- SURFACE/WALL MOUNTING
The Optima™ has a compact size for wall mounting capabilities and can be placed in demarcation areas, providing fiber solutions to various MDU or single tenant buildings.
- PEDESTAL SERVICE
Vertical mounting capabilities allow both feeder and distribution drop fibers to enter and exit from a single side of the Optima™. Its size allows it to be mounted on 10" wide pedestals.
- VAULT SERVICE
Similar to dome splice enclosures, the Optima™ allows a one sided entry for both feeder and distribution drop fibers.

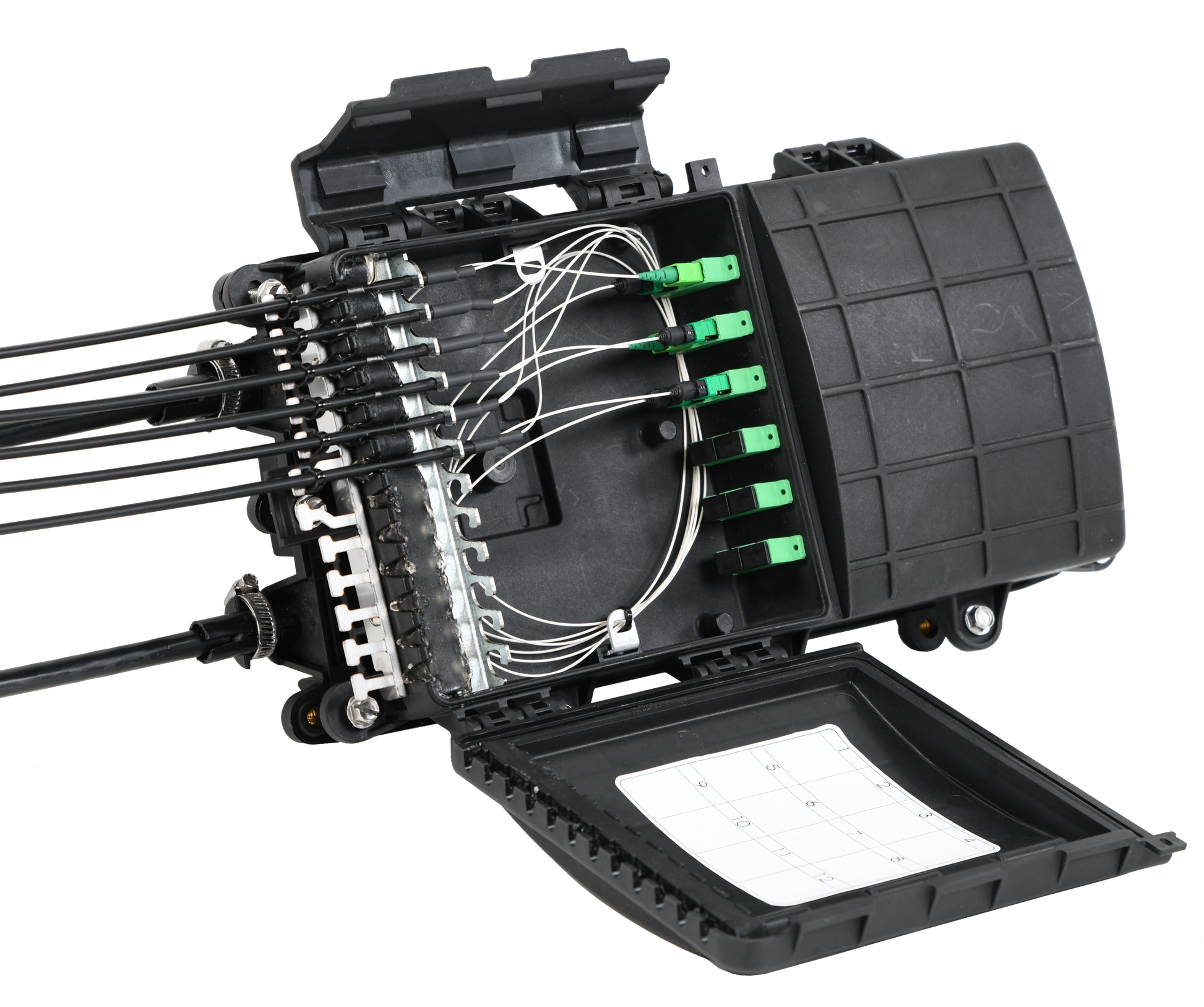

- OptiDrop™ Connector
The Optima™ S is engineered to utilize OptiDrop™ Connector. The OptiDrop™ is a field terminated drop cable, reducing installation times and cost. Connectors can be installed within 2 - 3 minutes and have an average light loss of less than .3dB.
- WHY OPTIDROP™?
The OptiDrop™ is a field tested and proven field installable connector that can be installed within minutes, reducing service and maintenance times without sacrificing quality. The OptiDrop™ also utilizes bulk fiber, lessening the need for pre-terminated cable stock.
- 4, 8, 12 & 16 OUTPUT PORTS
The Optima™ S is capable of housing up to 16 output ports, utilizing the OptiDrop™. The output port panel can handle most industry standard connections.

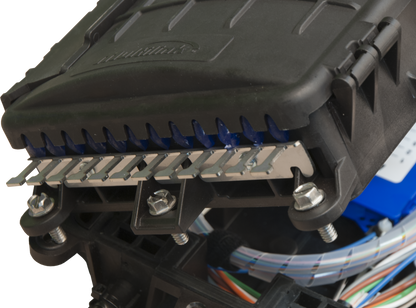

- MULTI-GROMMET SYSTEM
Different grommets can be used for various cable types such as Flat/Round Drop and SpeedFlex™. There is also a grommet to plug entry ports.

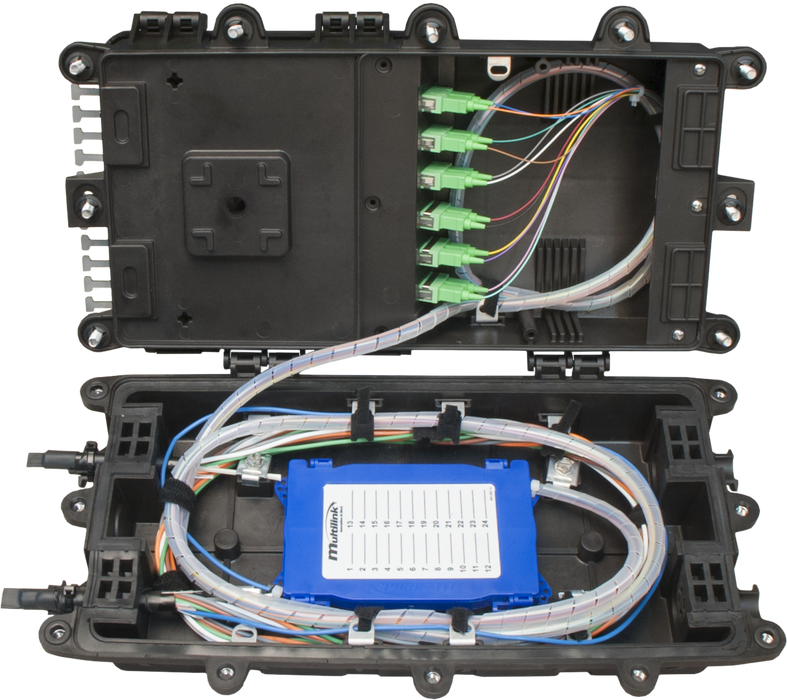

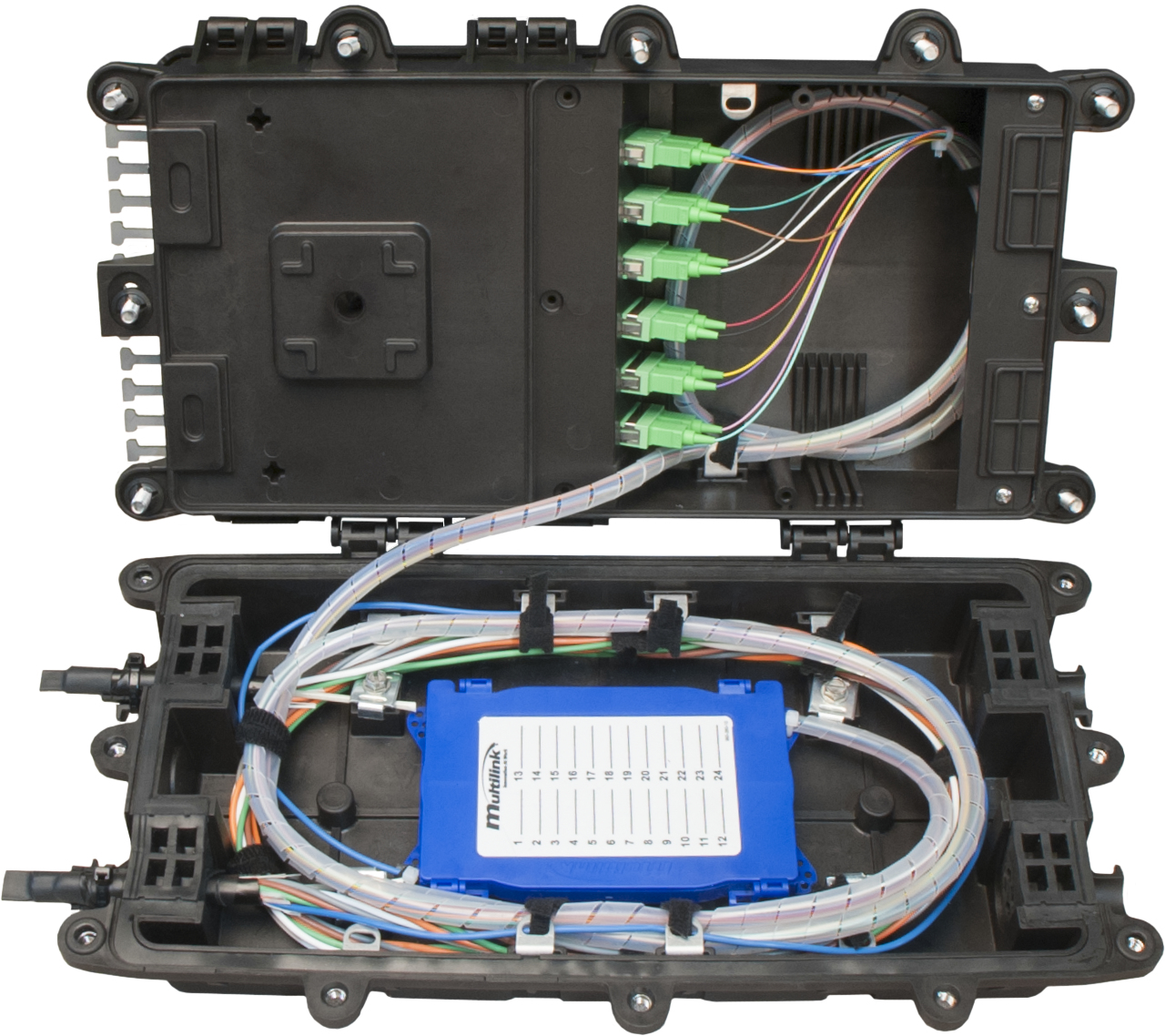

- SEPARATE ENTRANCE
Encompassing two separate entry ports, the drop fiber installation is located in its own compartment, ensuring the installer only comes into contact with the drop installation cables.

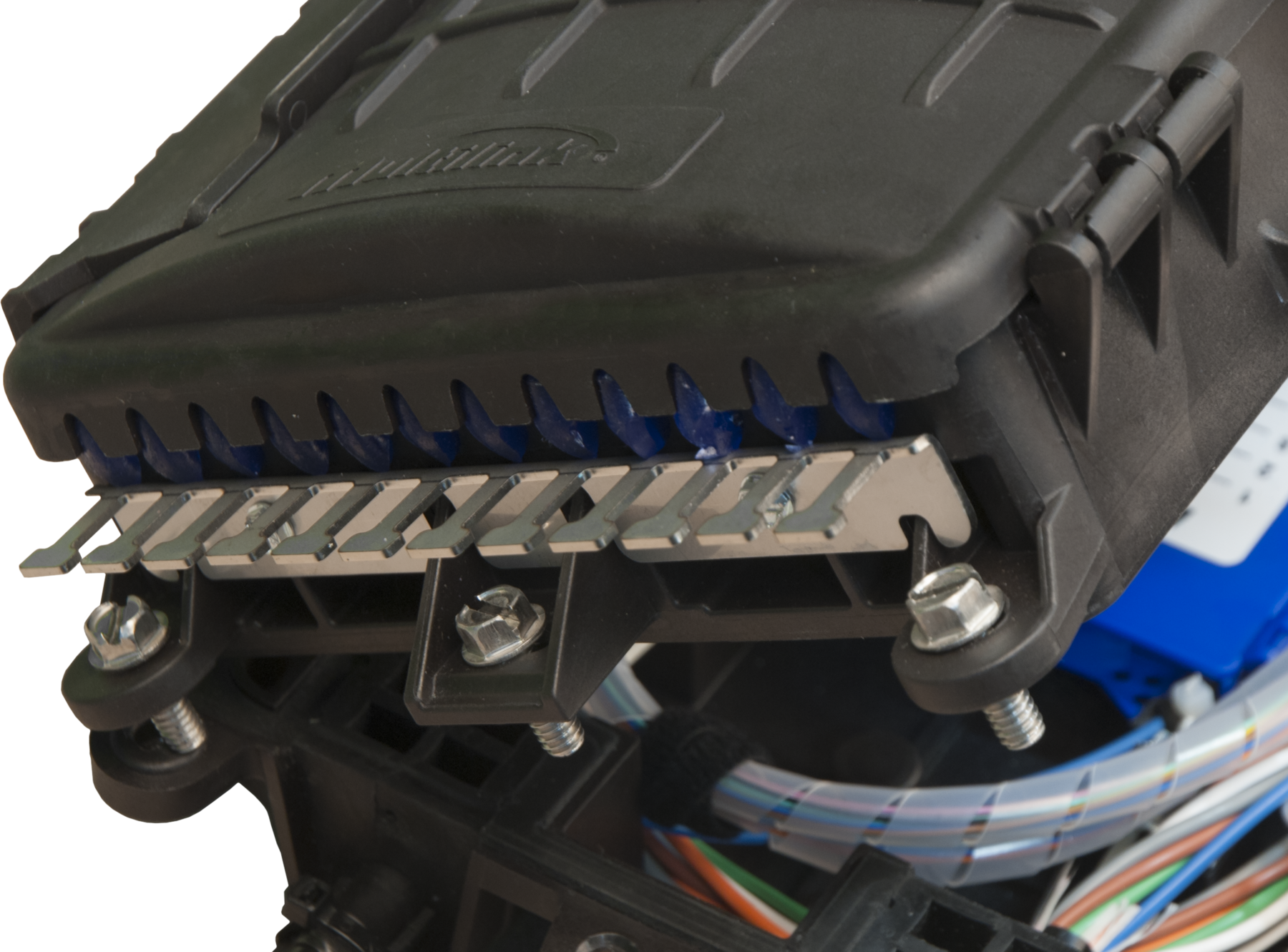

- FIBER PASS THROUGH
4 non captive ports surround the base of the unit, allowing mid-span access for up to 144 count fiber runs. Each grommet has the ability to handle various different cable sizes.
- FIBER SPLICING
The Optima™ S has the capability to do mid entry splicing. Capable of housing up to 144 count fibers utilizing (3) 24 count splice trays which can be stacked.
- RE-ENTERABLE CLOSURE
A re-enterable closure allows for easy maintenance access for technicians to trouble shoot and connectorize each drop right in the field.
- FAST INSTALLATION
A simple re-enterable design allows the installer to quickly access the closure and complete installations in minimal time.
- FIELD TESTED
Certified and tested by industry leading service providers, the Optima™ has proven its worth in the field.
- COST EFFECTIVE
The use of OptiDrop™ connectors make the Optima™ the most cost effective FTTH closure on the market.
- QUALITY MANUFACTURED
Made to meet industry standards including IP68 weather proofing, the Optima™ S is manufactured under strict Six Sigma processes, ensuring quality in every closure.
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.
Specifications
| General Specifications | |
|---|---|
| Feeder Cable Compatibility |
|
| Physical Specifications | |
|---|---|
| Dimensions | 14.83"W x 8.25"H x 4.38"D |
| Color | Black |
| Material | UV Stabilized Plastic |
| Output Ports | 4 |
| Feeder Ports | 2 |
| Mechanical Specifications | |
|---|---|
| Mounting Options |
|
| Splice Tray Specifications | |
|---|---|
| Splice Tray Capacity | 2 |
| Splice Capacity | 24 - Per Tray |
| Safety Standard Specifications | |
|---|---|
| Standards |
|
Additional Information
Preparations
Installation Outline
The general procedure of the Optima S installation includes:
- Removal of cable jacketing and excess CSM (Central Strength Member)
- Ring cut, fiber separation, CSM tie down, and routing fiber
- Securing fiber in place to the Optima S closure
- Configuring grommets for cable entry and exit drop
- Splicing and fiber termination
Optima S Checklist Each kit includes the following items:
- SC Duplex Adapters
- Grommets
- Splice Tray Kit
- Hardware Kit
Recommended Tools and Equipment
The Following list includes tools and equipment that you may need for a successful installation (these tools ARE NOT INCLUDED with the product or accessories):
- Safety Glasses
- Cut-Resistant Gloves
- Torque Screw Driver (inch pounds)
- Phillips Screw Driver
- Scissors / Razor Knife
- Tape Measure
- Side Cutters/Diagonal Cutters
- Fiber Strippers
- Colored Marker(s)
- Ring Cut Tool
- Mastic Tape
What's in the Box
What’s in the Box
- Qty 1 - Outdoor Aerial Fiber Optical Cross Connect Splicing Terminal
