• Miniature Floor Mount Cast Aluminum Overhead Door Switch Set Magnetic Contact, 2 1/2" Gap

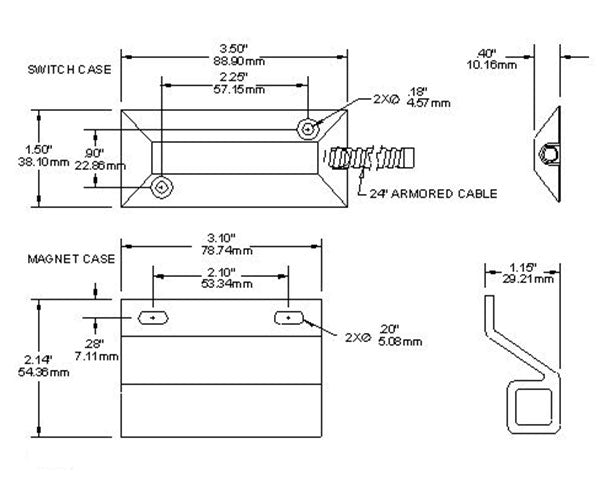

  • Miniature Overhead Door Magnet - Dimensions
1 2

Miniature Overhead Door Magnetic Floor Mount Switch Set, 2 1/2in Gap

Miniature Overhead Door Magnetic Floor Mount Switch Set, 2 1/2in Gap

BY GRI

$39.08 USD
$39.08 USD
Sale Sold out

SKU: 4532B

Loop Type

 ⚠ Various lead times may apply to this product. Please contact us for more details.

View full details

These products are all Made to Order

Which means they are non-cancelable and non-refundable

UL Listed

Description

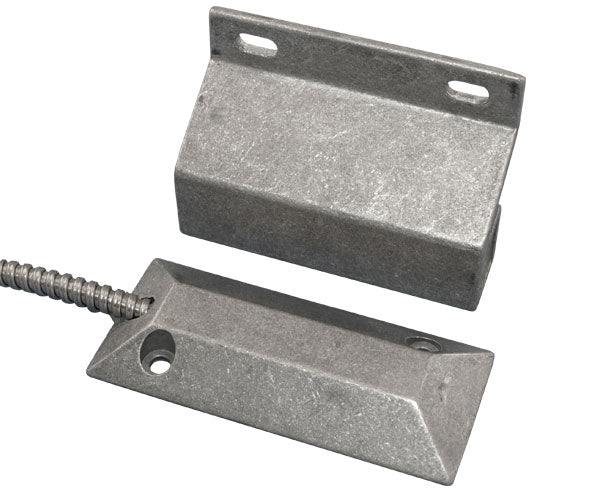

Miniature Overhead Door Floor Mount Magnetic Switch Set

The Overhead Door Contact Miniature Floor Mount Switch Set comprises a low-profile reed switch crafted from durable cast aluminum. It comes in closed loop, open loop, open/closed SPDT, or DPDT configurations. With a wide working gap of up to 2 1/2" (three feet for DPDT version), it includes heavy-duty armored cable for added durability.

The armored cable ensures protection from the elements, while the universal magnet allows for flexible mounting angles in challenging installations. Installation requires a 1/4" masonry bit for lead anchor installation.

Features

Features

  • Miniature floor mount
  • Available in closed loop, open loop, SPDT or DPDT
  • 24" armored cable (DPDT version comes with 36" cable)
  • Universal magnet for flexibility in mounting
  • Cast aluminum casings for harsh environments
  • Plated contacts resist sticking or freezing
  • Up to 2 1/2" gap for loose overheads
  • Reed switch for reliability
  • Mounting hardware included
  • Hermetically sealed
  • UL and ULC approved
  • Made in U.S.A.
  • Low cost

Specifications

TECHNICAL SPECIFICATIONS
Technical Specs: Closed Loop
Loop Type: Closed
Electrical Config: N/O
Reed Form: A
Maximum Intitial Contact Resistance (Ω): .150
Maximum Contact Rating (W): 10
Maximum Switching Voltage (VDC): 200
Maximum Switching Current (A): .500
Technical Specs: Open Loop
Loop Type: Open
Electrical Config: N/C
Reed Form: B
Maximum Intitial Contact Resistance (Ω): .140
Maximum Contact Rating (W): 5
Maximum Switching Voltage (VDC): 175
Maximum Switching Current (A): .250
Technical Specs: Open/Closed SPDT
Loop Type: Open/Closed
Electrical Config: SPDT
Reed Form: C
Maximum Intitial Contact Resistance (Ω): .140
Maximum Contact Rating (W): 5
Maximum Switching Voltage (VDC): 175
Maximum Switching Current (A): .250
Technical Specs: Open/Closed DPDT
Loop Type:  Open/Closed
Electrical Config: DPDT
Reed Form: Cx2
Maximum Intitial Contact Resistance (Ω): .140
Maximum Contact Rating (W): 5
Maximum Switching Voltage (VDC): 175
Maximum Switching Current (A): .250

What's in the Box

What's in the Box

  • Qty 1 - Miniature Overhead Door Floor Mount Switch Set
  • Qty 1 - Two Feet of Armored Cable
  • Qty 1 - Mounting Hardware
