Description

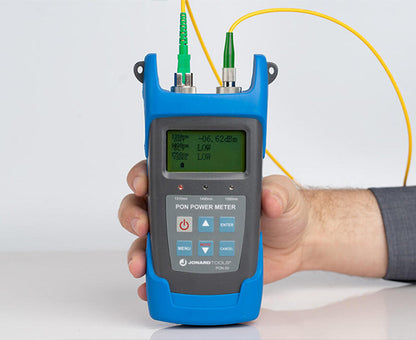

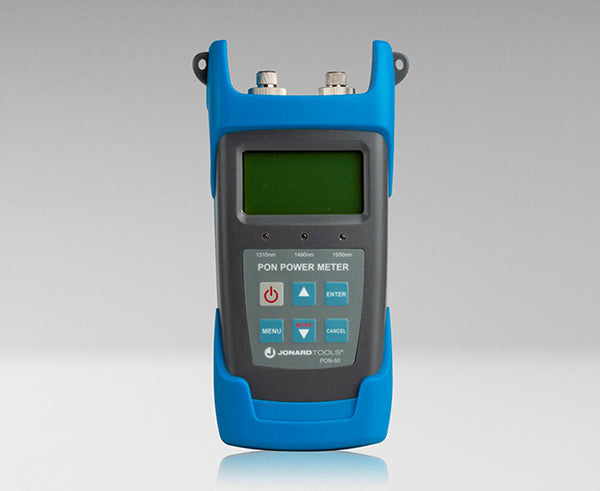

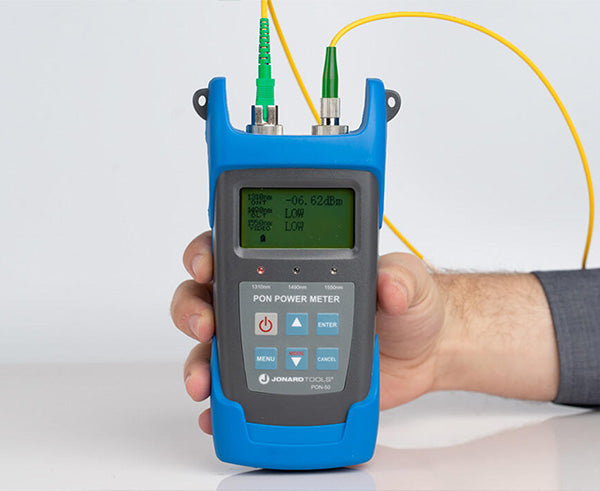

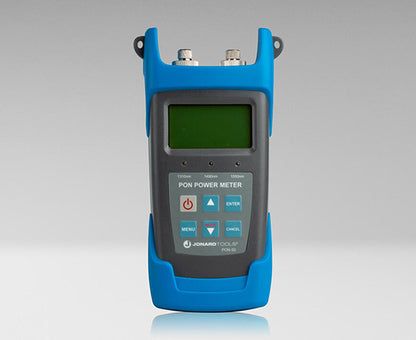

Passive Optical Network Power Meter for BPON/EPON/GPON
Designed to perform live testing with OLT equipment, this PON Power Meter is perfect for use during FTTx/PON service tune-up or maintenance. It is able to simultaneously test and measure the signal power of voice, data, and video connections, and is essential for the construction and maintenance of PON systems.
Features
Features

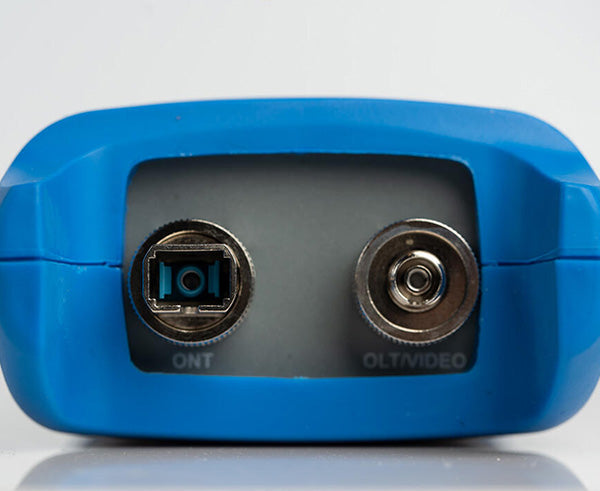

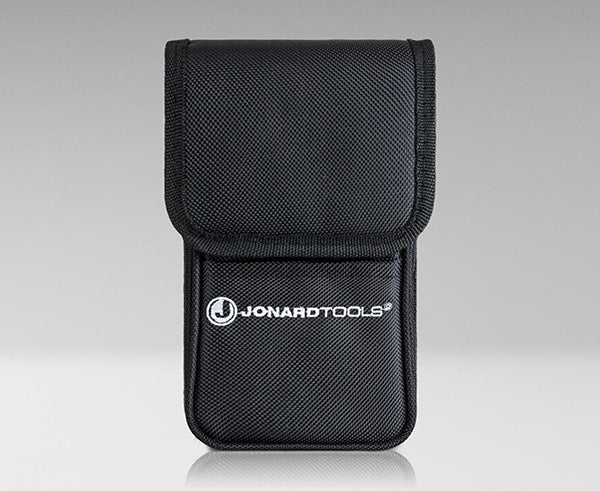

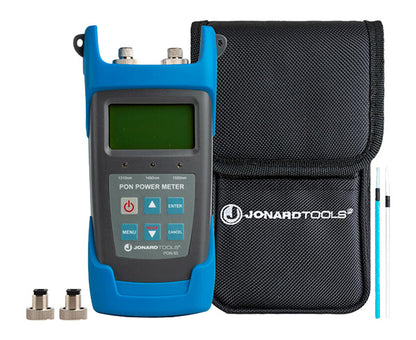

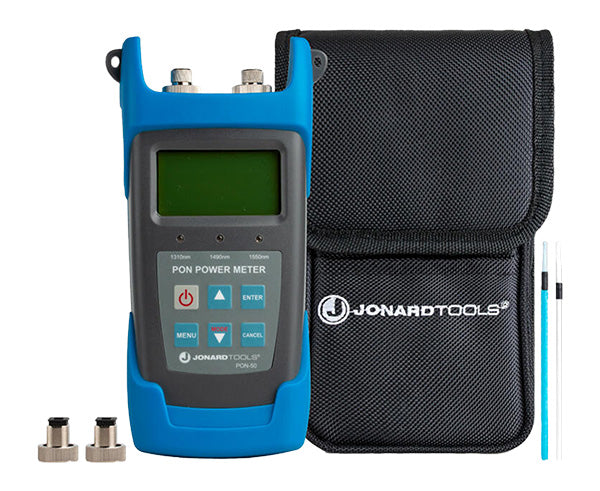

- Includes carrying case, instruction manual, and FC and SC adapters to directly connect to UPC/PC FC and SC fiber connectors
- Analyzes voice, data, and video signals in BPON/EPON/GPON FTTx systems

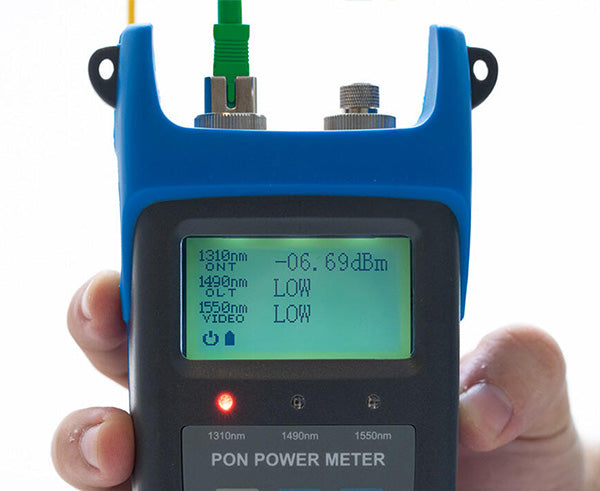

- Concurrently measures 1310 nm Upstream Burst Signals and 1490/1550 nm Downstream Signal Measurements anywhere in the network

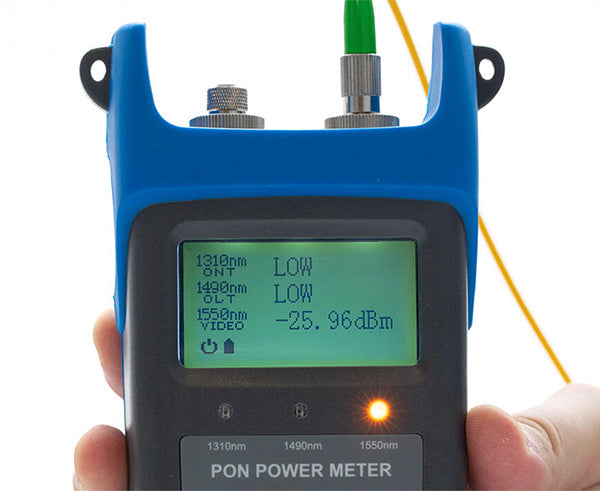

- Three pass, warning, and fail LED indicators to allow you to quickly assess your network's power level
- Supports 1310 nm Upstream Burst Signal and 1490/1550 nm Downstream Signal Measurements
- USB port allows quick transfer of data, and up to 1,000 measurement items can be saved at once
- Optional 10 minute auto-off can be activated or deactivated

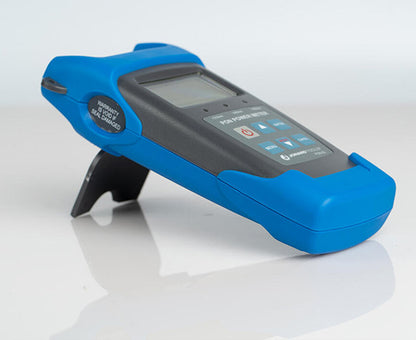

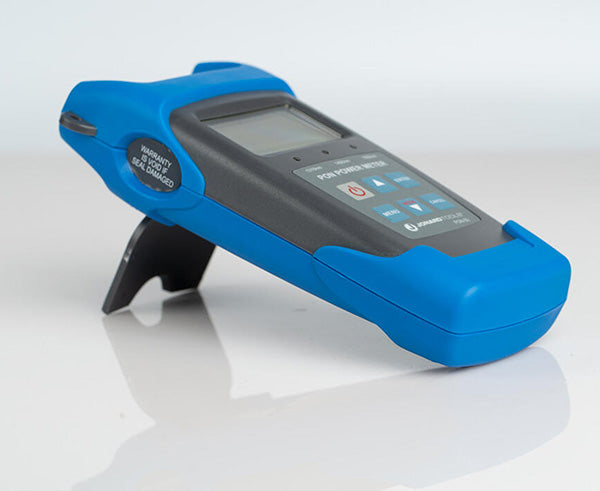

- Shatter-resistant sleeve protects it from accidental falls or other damage
- Included software allows you to set the thresholds, transfer data, and calibrate the wavelength from your PC
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| TOOL SPECIFICATIONS | |
| Network Types | BPON/EPON/GPON |
| Connector Types | FC/SC |
| Wavelengths | 1310 nm, 1490 nm, 1550 nm |
| Measurement Range | -35 dBm 〜 +10 dBm @ 1310/1490 nm, -35 ~ +10 dBm @ 1550 nm |
| Max Output Power | 15 dBm @ 1310/1490/1550 nm |
| Detector Type | InGaAs |
| Connatural Uncertainty (dB) | ±0.5 dB |
| Linearity (dB) | ±0.1 dB |
| PHYSICAL CHARACTERISTICS | |
| Batteries | (3) 1.5V AA |
| Dimensions | 6.25” x 9” x 2.8” (15.88 cm x 22.86 cm x 7.11 cm) |
| Tool Weight | 0.93 lb (0.423 kg) |
| IDENTIFICATION | |
| UPC # | 811490016095 |
What's In The Box
What's In The Box
- Qty 1 - Passive Optical Network Power Meter for BPON/EPON/GPON
