This product is sold by the foot. Minimum 1,000FT.
Description

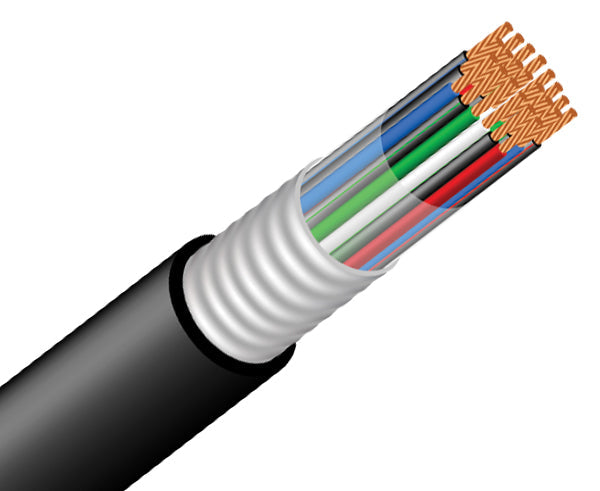

PE-89 Direct Burial Telecom Cables, 24 AWG
This 24AWG PE-89 Direct Burial Telecom Cable is ideal for running cables outside though the dirt and mud. These durable PE Cables are designed to keep moisture off its copper conductors. Designed with a foam insulated skin coating around each conductor, this cable is best suited for installation underground or inside conduit. PE-89 outdoor cable is manufactured with dual insulation made up of an inner layer of foamed polyolefin surrounded by a solid polyolefin skin.
This PE-89 Direct Burial Cable is sold by the foot and has solid annealed copper conductors measuring 24 AWG in diameter. The core assembly of this cable has 12 twisted pairs assembled in a single group. It is compliant with the Rural Development Utility Program (RDUP) 7CFR 1755890. Make sure corrosion doesn't jeopardize your telecom needs, get our PE-89 Cables today.
Specifications
| PRODUCT SPECIFICATIONS | |
|---|---|
| CABLE PHYSICAL PROPERTIES | |
| Pairs | 12 |
| Conductor Size | 24 AWG |
| Outer Diameter (OD) | 0.43" |
| Weight | 90 lbs. / MFT |
| CORE CONSTRUCTION | |
| Conductors | Solid, annealed copper; available sizes: 19, 22, and 24 AWG |
| Insulation | Dual insulation (inner foamed polyolefin layer + solid polyolefin outer skin); color-coded to telephone industry standards |
| Twisted Pairs | Insulated conductors twisted into pairs with varying lay lengths to minimize crosstalk |
| Core Assembly |
• ≤ 25 Pairs: Assembled together in a single group • > 25 Pairs: Arranged in groups with color-coded unit binders |
| Filling Compound | Core assembly completely filled with ETPR compound to fill interstices between pairs and under the core tape |
| Core Wrap | Non-hygroscopic dielectric tape applied longitudinally with an overlap |
| SHEATH & JACKET SPECIFICATIONS | |
| Aluminum Shield | Corrugated, copolymer-coated, 0.008" aluminum tape applied longitudinally with an overlap (interfaces flooded with adhesive water-blocking compound) |
| Jacket Material | Black, linear low-density polyethylene (LLDPE) |
| COMPLIANCE & LOGISTICS | |
| Application | Duct, direct buried, or aerial installations requiring protection against water and moisture entry |
| Compliance | Rural Development Utility Program (RDUP) 7CFR 1755.890 (RUS PE-89), RoHS Compliant |
| Packaging | Standard lengths shipped on non-returnable wood reels (non-standard packaging available upon request) |
