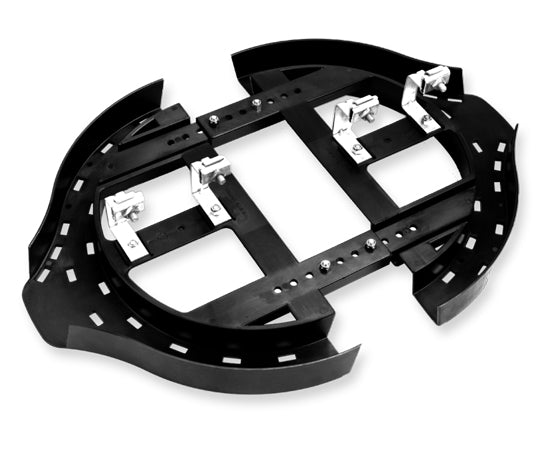

Plastic Adjustable Sno-Shoe® with Aerial Mounting Bracket & Hardware, 16"

$78.28
SKU: FB26-4617-16A
Various lead times may apply to this product. Please contact us for more details.
Made in USA

Description

Plastic Adjustable Sno-Shoe® 16" Aerial Mounting Bracket

The Plastic Adjustable Sno-Shoe® is used to store slack fiber cable effectively and efficiently. Using a Sno-Shoe® for your cable run is a great precautionary choice and is cheaper than having to buy additional cable when emergency repairs, growth and expansion, splicing and general maintenance occurs. A Snoe-Shoe® will adhere to the bend radius of the cable, offering a more convenient method of storing extra cable when compared to other options such as a vault or storage box.

Product Quality

These cable management solutions are offered in adjustable and non-adjustable models. The adjustable models offer more flexibility in how you store slack. The closed, extended and fully open positions allow you to store the amount of slack needed for the situation. They allow much more to be stored than the non-adjustable model. In terms of cable fittings, our 10" shoe can hold cables up to 60 fibers and all-dielectric fibers up to 72 fibers. Our 16" shoe can hold cables up to 216 fibers and all-dielectric fibers up to 240 fibers. Lastly, our 24™ shoe can hold all currently available fiber counts and cable configurations.

Durability & Strength

This product has been manufactured to withstand high winds and weather, the plastic does not have sharp edges so it will not cut the cable you are storing. The plastic on this product has been designed to expand and contract in the event of a freeze with no permanent damage.

Features

Features

  • Prevents macrobends in fiber optic cable.
  • Stores slack cable in one location to reduce repair time.
  • Eliminates the need for costly slack storage vaults in the fiber plant.
  • Reduces operating costs. With all the different mounting options, it also allows for one slack storage device to be used throughout the entire system.
  • Establishes proper installation practices while insuring your installation is within telephone and utility regulations.
  • Solves spacing problems on the pole.
  • 20 year pro-rated warranty.

Specifications

External Dimensions

Length 24.5"
Width 20.5"
Depth 2.3"

Channel Dimensions

Length 50" - 62"
Width 2"
Depth 2"

Internal Dimensions

Diameter 16"
Bend Radius 8"

Physical Properties

Weight 6.5 lbs
Material Plastic
Color Black

Installation Applications

Two typical applications for the Plastic Sno-Shoe® are illustrated below:

Application 1
Strand Storage Installation

Application 2
Butt Splice Installation

Sno-Shoe Installation Applications

Additional Information

When figuring out which Sno-Shoe size® is right for you, the rule of thumb we go by is 10 x Fiber radius = Sno-shoe® size. For example if your cable has a outside diameter of 1/2™ then the calculation would be .5 x 10 = 5" minimum bend radius, in this case the 10™ Sno-Shoe® would be used. You can always go bigger than what the formula calls for, just not smaller. If more cable length is needed, Sno-Shoes® can be placed separately on the same strand to attain the desired distance. Our Sno-Shoes® even allow there to be a second cable installed without removing the first cable. The 24™ adjustable shoe has the ability to accommodate a second cable on the bottom side
