Description

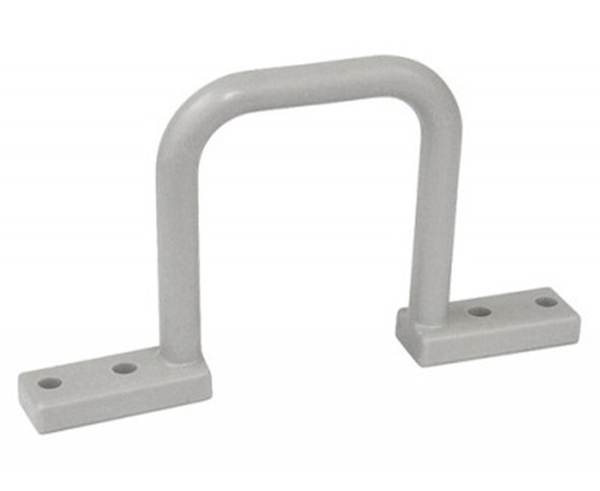

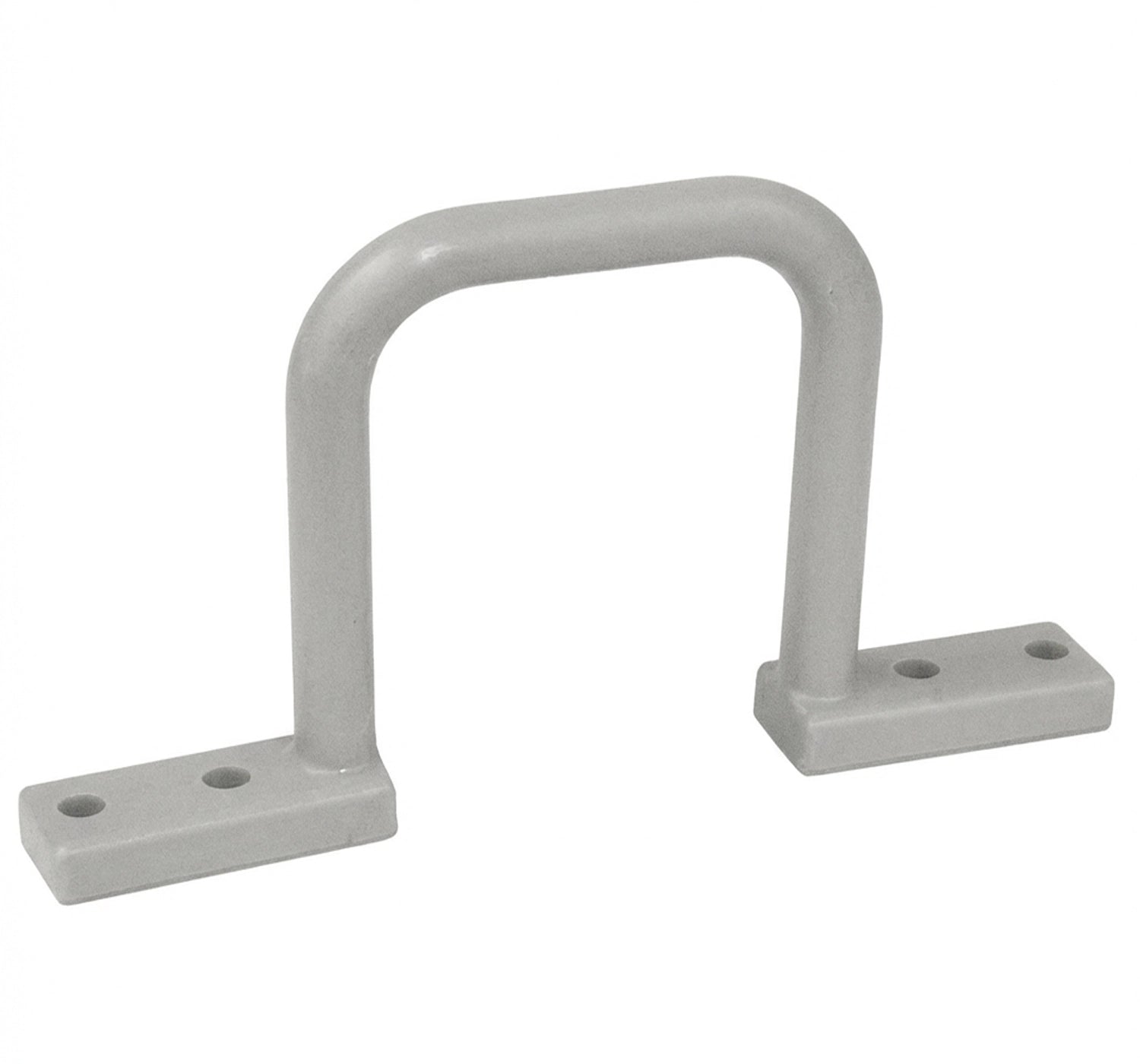

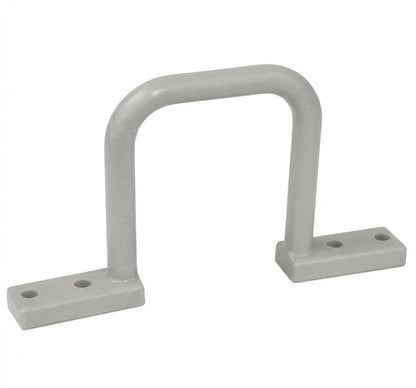

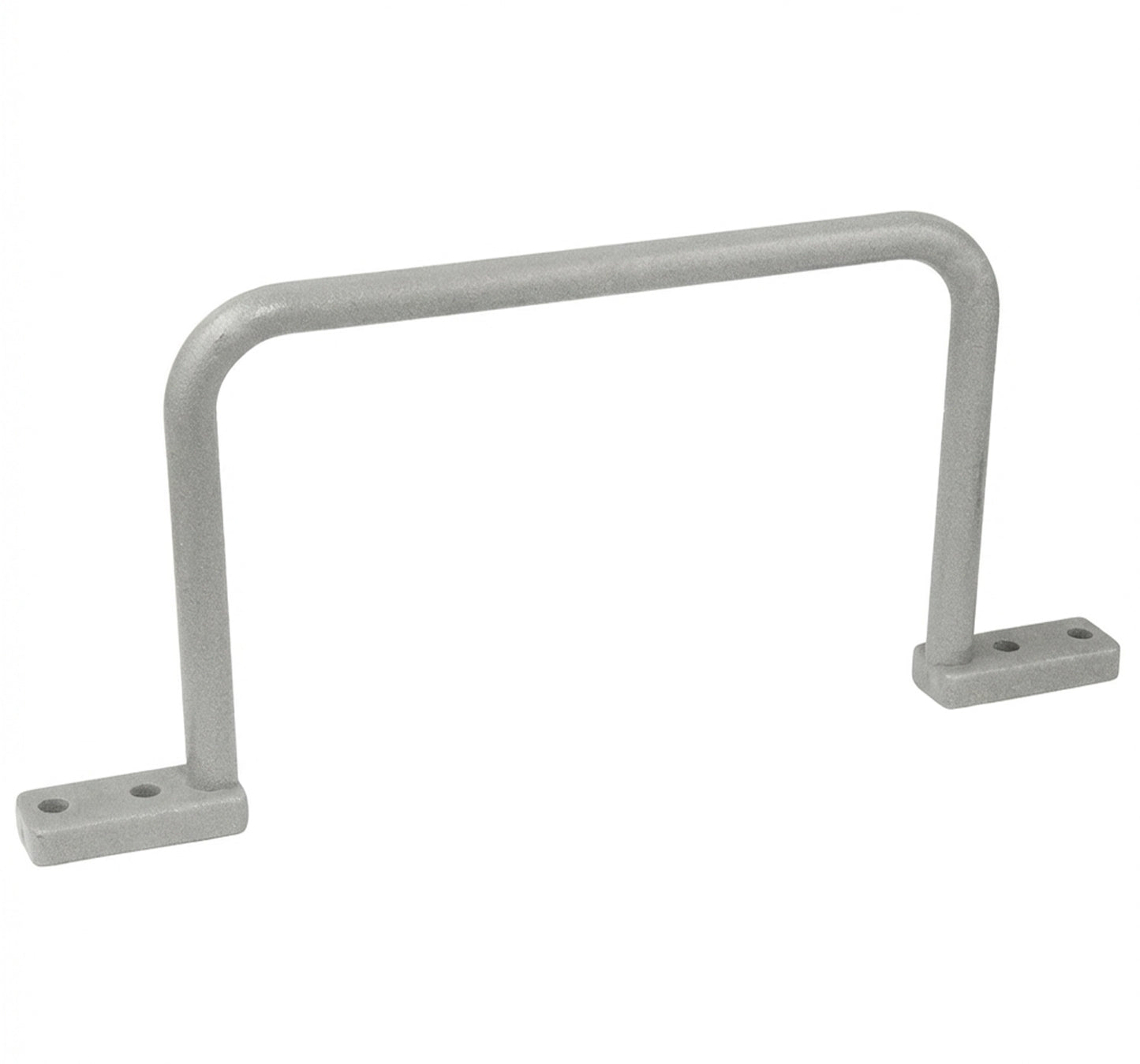

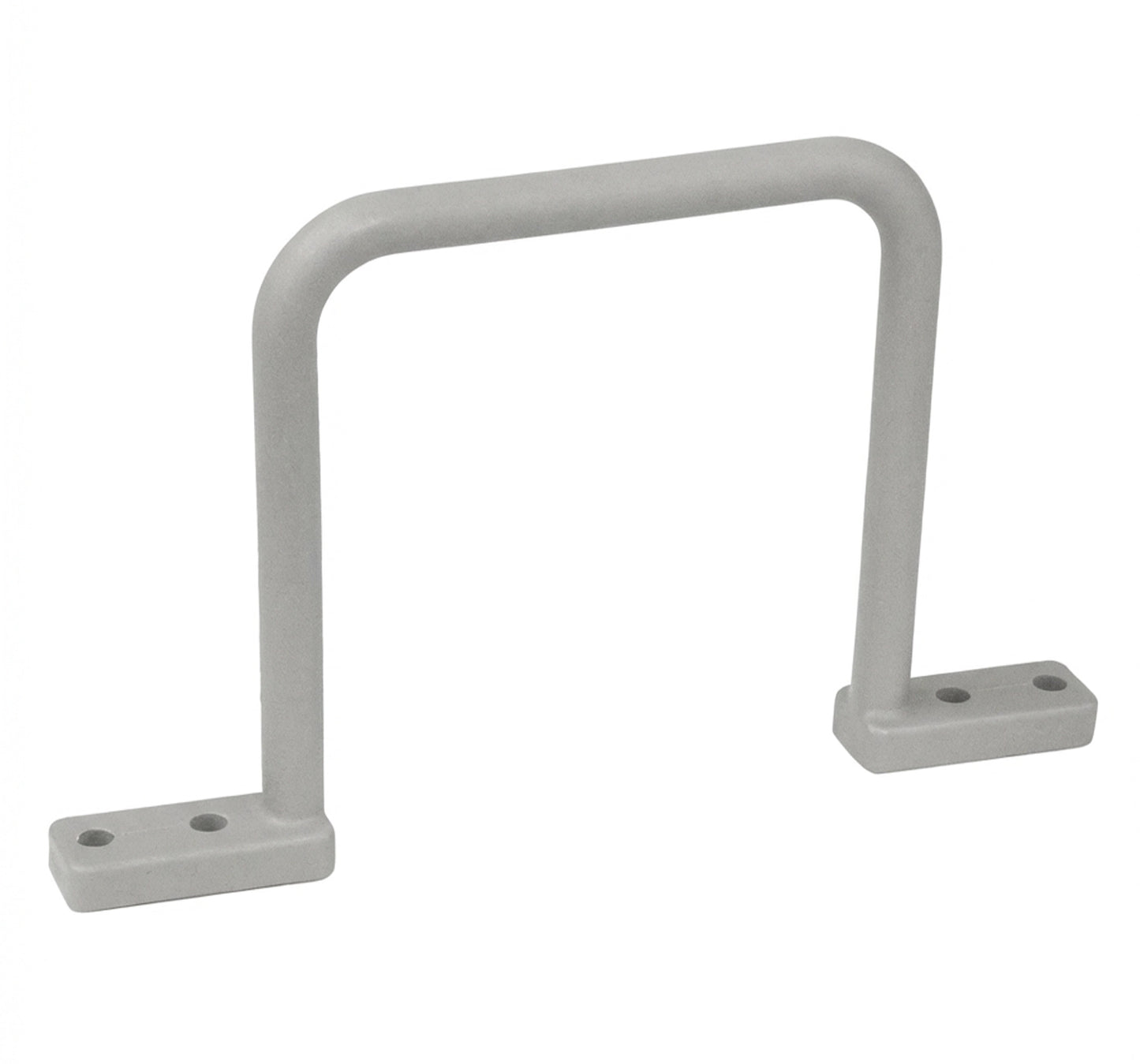

Plastic Distribution D Ring

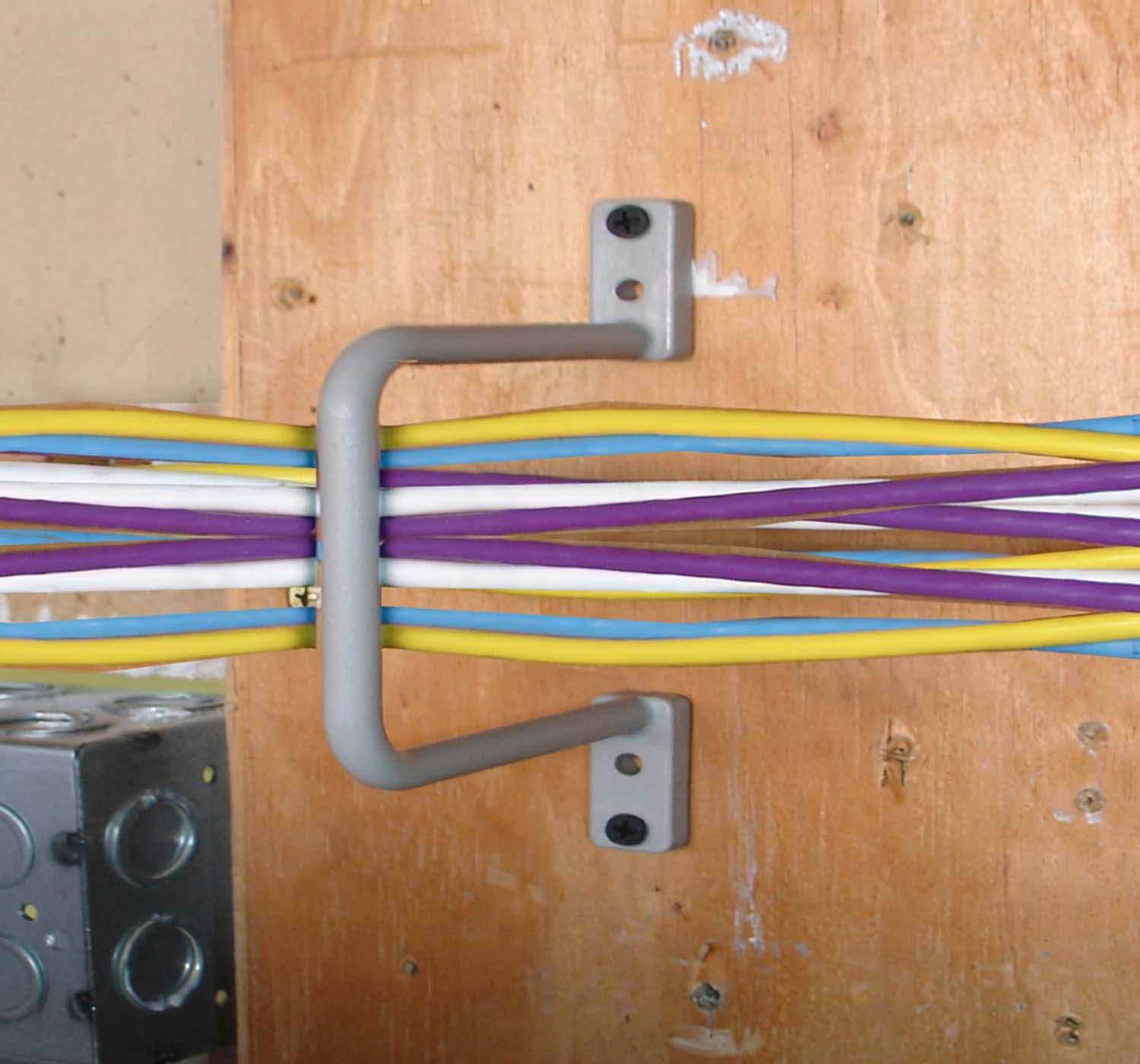

Our plastic distribution rings are used to support multiple vertical or horizontal cable runs in walls or ceilings for both residential and commercial low voltage cabling applications. The inside diameter is listed in the product size, these distribution rings have a smooth surface that prevents cables from being damaged. The holes are used to mount this product to almost any flat surface. Once mounted, you can easily route your cables through the opening so you can organize and manage cables properly while giving your installation a clean professional look.
Product Quality
The professional grade surface mount cable distribution D-ring make cable management easy and cost-effective. This product is perfect for all commercial and residential installations.
Application
Distribution rings are used when support for multiple vertical or horizontal cable runs is required on walls or ceilings.
Features
Features
- Sold Individually
- Designed with two mounting holes per side
- Will not damage conductor insulation
- Distribution rings have a smooth surface that prevents cables from being damaged
- .21" diameter mounting holes
- Cable I.D.: 2", 3", 5"
- UL, CUL, RoHS Compliant
Specifications
| TECHNICAL SPECIFICATIONS | |||
|---|---|---|---|
| CABLE I.D | 2" | 3" | 5" |
| PRODUCT HEIGHT | 0.63 INCH | 0.63 INCH | 0.63 INCH |
| PRODUCT WIDTH | 2.76 INCH | 6.2 INCH | 8.31 INCH |
| PRODUCT WEIGHT | 0.08 LBS | 0.044 LBS | 0.809 LBS |
| MATERIAL | GRAY PLASTIC, GRAY | GRAY PLASTIC, GRAY | GRAY PLASTIC, GRAY |
| CAT 5E CABLE CAPACITY | 75 | 150 | 250 |
| CALIFORNIA PROP 65 | YES | YES | YES |
What's in the Box
What's in the Box
- Qty 1 - Plastic D Ring
