Plastic Insulating Bushings 105 degree C Rated

$0.13
SKU: 440
Trade Size
Various lead times may apply to this product. Please contact us for more details.

Description

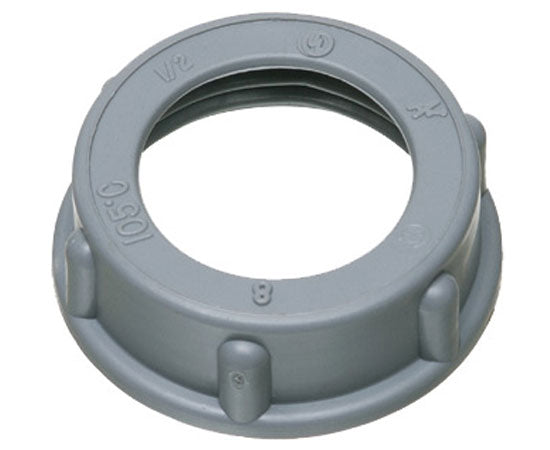

Plastic Insulating Bushings 105 degree C Rated

This Plastic Insulating Bushing is 105º C Rated and available in sizes from 1/2" to 6". It is UL Listed and CSA compliant.

Specifications

Specifications

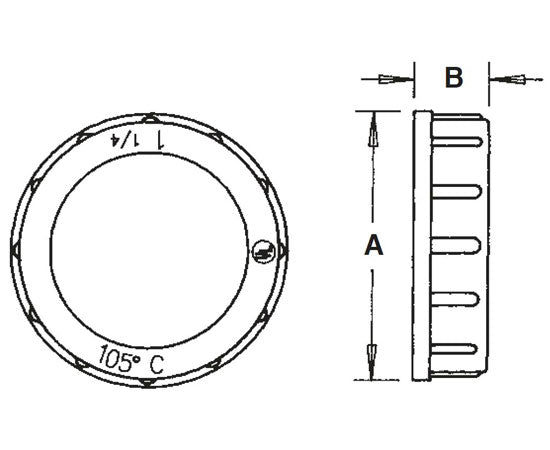

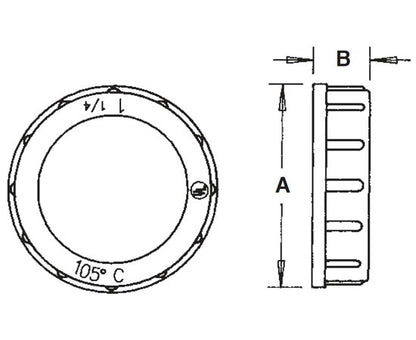

Plastic Insulating Bushings 105™ C Rated Diagram

Part Number Trade Size Dim A Dim B
NPNB-440 1/2" 1.050 .365
NPNB-441 3/4" 1.280 .390
NPNB-442 1" 1.632 .490
NPNB-443 1-1/4" 1.986 .535
NPNB-444 1-1/2" 2.160 .550
NPNB-445 2" 2.680 .600
NPNB-446 2-1/2" 3.150 .635
NPNB-447 3" 3.800 .725
NPNB-448 3-1/2" 4.275 .725
NPNB-449 4" 4.775 .750
NPNB-4491 5" 6.350 .975
NPNB-4492 6" 7.475 .975

What's in the box?

What's in the box?

  • Qty 1 - Plastic Insulating Bushings 105º C Rated
