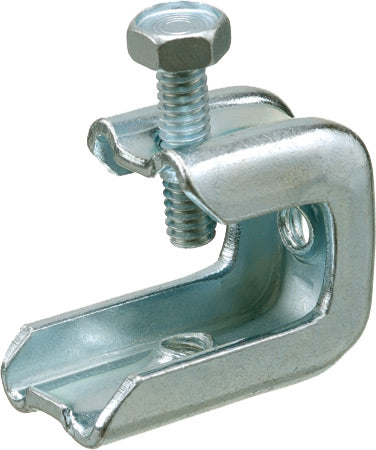

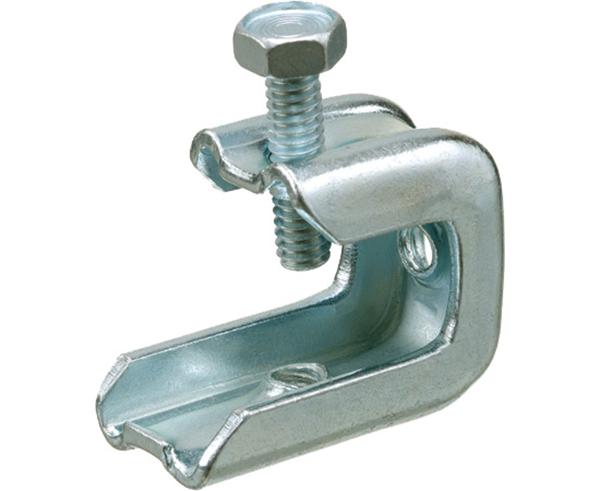

Pressed Steel Beam Clamps With Screw
The Pressed Steel Beam Clamps are made of plated steel designed for flanges up to 1/2" thick such as I-beams. Secure the plated beam clamp to a beam flange with the included bolt. The Plated Beam Clamp is ideal for hanging ceiling wires. High-quality all-steel construction. Has both threaded and non-threaded holes to accommodate a jack chain, ceiling wire, or threaded rod.
Features
Features
- 1/4" - 20 threaded holes tapped on the side and bottom of the clamp
- Made from high-quality zinc-plated steel
- Works with Purlin Clip Vertical Hangers, Eye Lag Screws, Hammer-On Beam Flange Clip
- 75 lbs. load rating
Specifications
Specifications
Pressed Steel Beam Clamps:
| BASIC INFORMATION | |
|---|---|
| Part Number | BC25 |
| Description | Beam Clamp. Plated Steel. 1/4-20 threaded rod size. Static Load rating 75lbs. |
| UPC-A | 018997232502 |
| Unit Packaging | 25pcs |
| Standard Packaging | 100pcs |
| PHYSICAL INFORMATION | |
| Weight | 0.130 lbs/each |
| Height | 1.312" |
| Width | 1.718" |
| Color | Silver |
| Material(s) | Plated Steel |
| TECHNICAL INFORMATION | |
|---|---|
| Load Rating | 75lbs |
| Threaded Rod Size | 1/4-20 |
| Trade Size | 1" |
Additional Information
Additional Information
Installation Instructions:
What's in the Box
What's in the Box
- Qty 1 - Plated Beam Clamp with Screw
