Description
Description

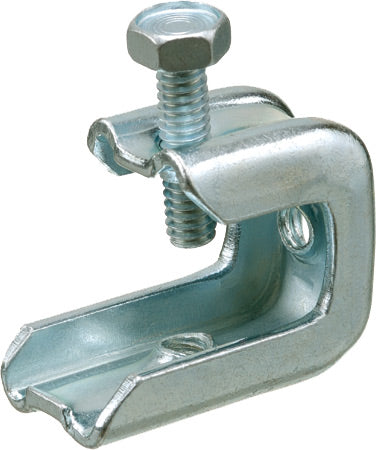

Plated Steel Beam Clamp With Screw
The Plated Steel Beam Clamps are zinc-plated steel designed for flanges up to 3/4" thick such as I-beams. Secure the plated beam clamp to a beam flange with the included bolt. The Plated Beam Clamp is ideal for hanging ceiling wires. High-quality all-steel construction. Has both threaded and non-threaded holes to accommodate a jack chain, ceiling wire, or threaded rod.
Features
Features
- 3/8" x 16 threaded holes tapped on the side and bottom of the clamp
- Made from high-quality plated steel
- Works with Purlin Clip Vertical Hangers, Eye Lag Screws, Hammer-On Beam Flange Clip
- 200 lbs. load rating
Specifications
Specifications
Pressed Steel Beam Clamps:
| BASIC INFORMATION | |
|---|---|
| Part Number | BC38 |
| Description | Beam Clamp. Plated Steel. 3/8 threaded rod size. Static Load rating 200lbs. |
| UPC-A | 018997233806 |
| Unit Packaging | 25pcs |
| Standard Packaging | 100pcs |
| PHYSICAL INFORMATION | |
|---|---|
| Weight | 0.298 lbs/each |
| Height | 1.875" |
| Width | 2.062" |
| Color | Silver |
| Material(s) | Plated Steel |
| TECHNICAL INFORMATION | |
|---|---|
| Load Rating | 200lbs |
| Threaded Rod Size | 3/8-16 |
| Trade Size | 2" |
Additional Information
Additional Information
Installation Instructions:
What's in the Box
What's in the Box
- Qty 1 - Pressed Beam Clamp with Screw
