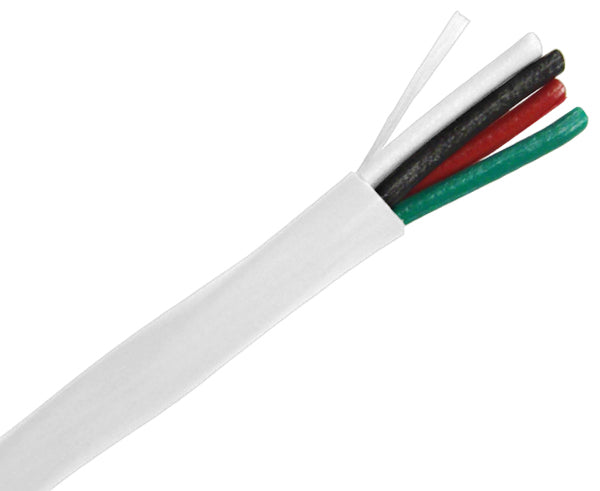

Security Alarm Cable - Plenum (CMP) - 22/4 AWG, CL3P, Stranded (7 Strand), Unshielded, 1000ft, White

$170.13
SKU: ASC1-2664/224

Made in USA RoHS Compliant ETL Verified logo

Description

Plenum (CMP) - Security Alarm Cable - 22/4 AWG, CL3P, Stranded (7 Strand), Unshielded, 1000ft, White'

This 22/4 Plenum Security Alarm Cable features four 22 gauge stranded copper conductors. Tailored for security systems but versatile enough to be used for intercom systems, power limited controls and sound/audio systems. Constructed from 7 strand bare copper cable. It is unshielded with a plenum CMP rated white colored jacket and is manufactured in the USA, this 22/4 plenum security cable is available in increments of 1,000 ft.

Features

Features

  • 22 AWG 4 conductors
  • 7 stranded bare copper conductors
  • Low smoke PVC insulation
  • Unshielded
  • Low smoke white PVC jacket
  • Sequential footage marking
  • CL3P/FPLP rated jacket
  • UL listed
  • ETL listed
  • RoHS compliant
  • NEC articles
    • 22-16 AWG: FPLP/760, CMP/800, CL3P, CL2P/725
    • 14-12 AWG: FPLP, CL3P

Residential or commercial applications:

  • Security systems
  • Intercom systems
  • Sound/audio systems
  • Power-limited controls

Specifications

Specifications


Physical Construction

Inner Conductor Stranded Bare Copper
Conductor Size 22 AWG
Insulation PVC
Nominal OD 3.63mm
Outer Jacket Diameter .38mm
Jacket Low Smoke PVC
Jacket Color Gray
Number of Strands 7
Inner Conductor Diameter 1.2mm

Electrical Characteristics

Temperature 75°C
Voltage Rating 300V
Center Resistance 21.20 (Ω/km)

Additional Information

Standards ETL | RoHS | CMP | CL3P
Applications Security Systems | Intercom Systems Sound | Audio Systems | Power-Limited Controls
Jacket Printing 22 AWG 4C (ETL) 725/CL3P 800/CMP (VID:###) XXXX FT
Important Notes The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only.

What's in the Box

What's in the Box

  • Security Alarm Cable - Plenum (CMP) - 18/4 AWG, CL3P, Stranded (7 Strand), Unshielded, White
  • 1000 Ft
