PoE++ Injector, 2 port

by TP-Link
Various lead times may apply to this product. Please contact us for more details.
FCC Verified logo CE Verified logo RoHS Compliant PoE Capable

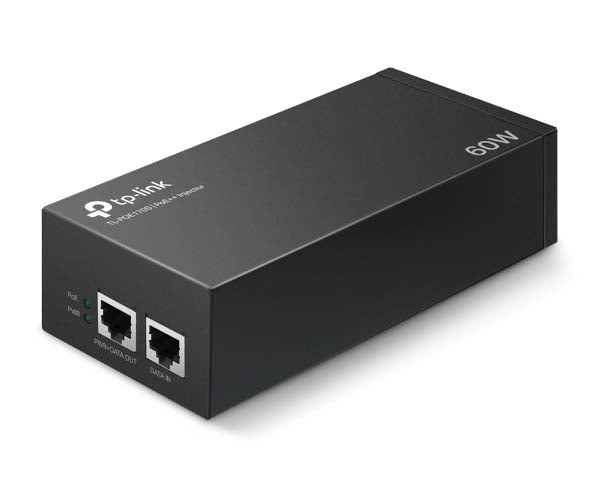

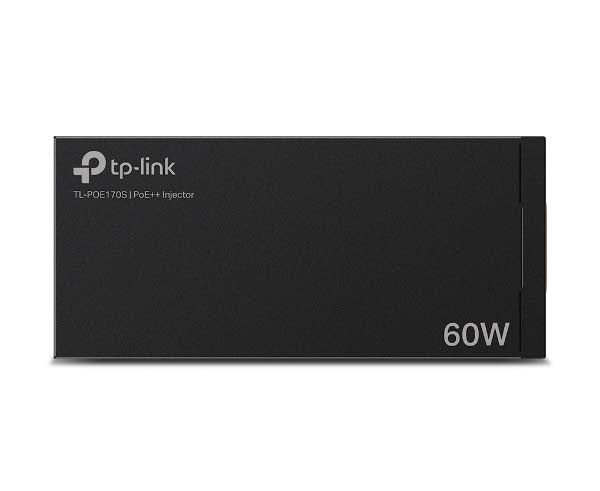

PoE++ Injector, 2 port

The PoE++ Injector TL-POE170S fully complies with IEEE 802.3af/at/bt* standards with up to 60 W power supply. It can easily expand your network to where there are no power line or outlet, where you wish to fix devices such as PTZ IP Cameras, LED, etc.

*TL-POE170S is incompatible with EAP235, EAP225, and EAP225-Outdoor. To power up these EAPs, TL-POE160S is recommended to use.

Product Quality

This product is compliant with IEEE 802.3af standards. This PoE Injector can auto-start and short-circuit to cut off a power supply if it is met with too high of a current or electricity. The interruption will prevent equipment burnout and avoid networking failure caused by an electricity interruption or installing error.


  • 2 Gigabit ports ensure faster transmission
  • Complies with IEEE802.3af/at/bt* standards, supplies up to 60 W
  • Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
  • Automatically determines and supplies the exact power to meet the device's need
  • Wall-mounting and desktop design accommodates most installation scenarios
  • Plug & Play installation, requires no configuration
  • Integrated power supply
  • Durable metal casing


Network Media

10BASE-T:UTP category 3, 4, 5 (maximum 100 m)

EIA/TIA-568 100Ω STP (maximum 100 m)

100BASE-TX:UTP category 5, 5e cable (maximum 100 m)

EIA/TIA-568 100Ω STP (maximum 100 m)

1000BASE-T:UTP category 5, 5e, 6 cable (maximum 100 m)


1 x 10/100/1000Mbps RJ45 data-in port

1 x 10/100/1000Mbps RJ45 power+data-out port

1 x AC Socket

Power Consumption

Input: 100-240 V, 50/60 Hz, 1.6A

Output: Auto-determine the necessary power requirements (max. 60 W)

Basic Function

Auto-Sensing Algorithm enables providing power with 802.3af/at/bt*PD

Auto-determine the necessary power  requirements

Wall-mounting and desktop installation supported


Dimensions (W x D x H)

6.1 x 2.8 x 1.7 in

(155 x 70 x 42 mm)




 Operating Temperature: 0°C to 45°C (32°F to 113°F)

Storage Temperature: -40°C to 70°C (-40°F to 158°F)

Operating Humidity: 10% to 90%RH non-condensing

Storage Humidity: 5% to 90%RH non-condensing

Package Contents

PoE++ Injector TL-POE170S

Installation Guide

Power Cord

RJ45 Cable

What's in the box?

  • Qty 1 - Gigabit PoE Injector
  • Qty 1 - Power Adapter
  • Qty 1 - RJ45 Cable
  • Qty 1 - Installation Guide
