Mixing Nozzle - MXR-24L-10
Description
Fast and efficient way to seal communication ducts, small conduits, and thin annular spaces.
Polywater ZipSeal Duct Sealant protects mission-critical communication, electrical, and utility infrastructure from water, gases, and other unwelcome intrusions. This two-part, expanding foam is quick to install and easy to remove. It is packaged in a syringe for a toolless installation.
Polywater® ZipSeal™ Foam Sealant System | Perfect for ducts with ID ranging from 1.25 in. /32 mm to 4 in. /100 mm
- Stops ingress of water, gases, and pests (includes a rodent deterrent)
- Each kit can produce multiple seals
- Holds up to 22 ft (7 m) water head pressure
Features
Features
-
PROTECTS Stops ingress of water, gases, and pests (includes rodent deterrent)
-
RELIABLE Holds up to 30ft (9m) water-head pressure
-
RE-ENTERABLE Quick and easy removal
-
MULTIPLE SEALS Each kit can produce multiple seals
-
COMPATIBLE Safe to use with all known cable jackets, duct/pipe materials
- COMPLIANT Meets industry standards, codes, and best practices
Product Notes
- Multi-use syringe can seal multiple ducts.
- UL Recognized Component-Passes UL 94 with a class HBF rating
- Meets global codes and industry standards for sealing raceways and building entrances
- In Service Temperature Use Range: -20°F to 200°F (-30°C to 120°C)
- Has excellent adhesion to HDPE, PVC and EMT. Holds up to 30 feet (9.1 m) of water head pressure. Effective for stopping the flow
of gasses as well.
- Has chemical resistance to gasoline, oils, dilute acids and bases, and most unsaturated hydrocarbon
Specifications
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| COMPONENT PROPERTIES | ||
| DESCRIPTION | PART A | PART B |
| CHEMICAL DESCRIPTION | Polymeric MDI | Polyether Polyol |
| APPEARANCE | Amber Liquid | Clear Liquid |
| VOC | 0 g/L | 0 g/L |
| SPECIFIC GRAVITY | 1.2 | 1.1 |
| VISCOSITY | 250 cPs | 8,000-10,000 cPs |
| SHELF LIFE | 15 Months | 15 Months |
| TYPICAL PHYSICAL PROPERTIES | ||
| DESCRIPTION | METHOD | VALUE |
| DENSITY | ASTM D1622 | 5.5 lb/ft³ (88 kg/m³) |
| COMPRESSIVE STRENGTH | ASTM D1621 | 95 psi (0.65 N/mm²) |
| % POROSITY | ASTM D2856 | >97% Closed Cell |
| TENSILE STRENGTH | ASTM D638 | 125 psi (0.86 N/mm²) |
| FLEXURAL STRENGTH | ASTM D790 | 105 psi (0.72 N/mm²) |
| WATER ABSORPTION | ASTM D2842 | <1.5% |
Additional Information
| Product Videos | |
|---|---|
Polywater® ZipSeal™ Syringe Installation Video |

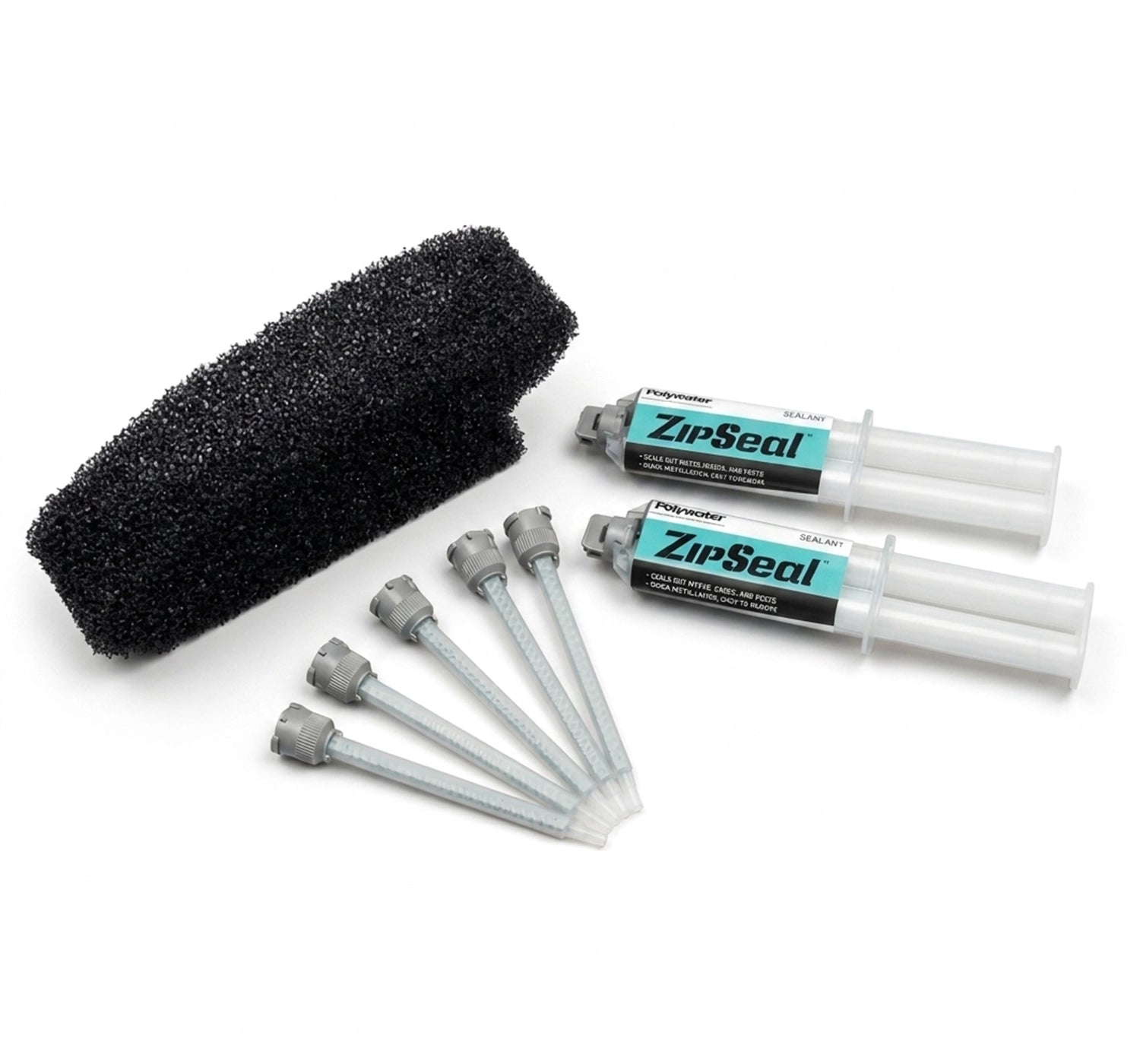

What's in the Box
What’s in the Box
- Qty 1 - Polywater® ZipSeal™ Foam Sealant System, FOAM CONDUIT SEALANTS, KIT
| SKU # | Package Description | Units/Case |
|---|---|---|
| ZIP-25KIT1 | 2 – 25ml Syringes; 5 Mixing Nozzles; 1 Mesh Strip; Gloves; Instruction Sheet |
1 |
| ZIP-25KITB6 | Case with 6 ZIP-25KIT1 | 1 |
| MXR-24L-10 | 10 pack of Mixing Nozzles – 25ml Syringe | 1 |
