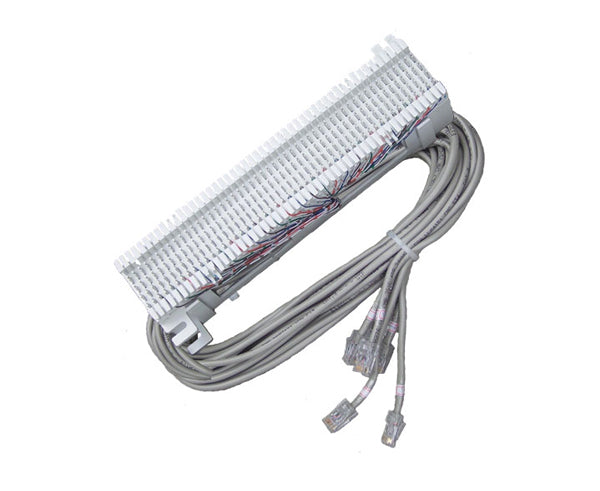

Pre-Wired 66 Block with RJ45 Hydra Cable, 7-Feet
Some items may require minimum order quantities which can be changed in your shopping cart.
Pre-Wired 66 Block and Hydra Cable, 6 RJ45 Plugs
Dynacom's 66 block is a punch down block containing rows of four IDC style clips. It is used for terminating 22-26 AWG solid copper cross-connect station wiring for many types of phone systems. The Pre-Wired 66 Block is available with a 7ft Hydra cable which contains six RJ45 plugs. This pre-wired block is ideal for setting up Private Branch Exchange (PBX) systems in commercial environments. Once the cross connect wires have been distributed to the proper terminals, a bridge clip is used to finish the terminations. A bridge clip is used to connect two center terminals of a split block, effectively completing the circuit and connecting the left and right side of the 66 block. The metal bridge clips can be easily removed in order to allow the service subscriber or the service provider to split a circuit or troubleshoot problem areas of the circuit. This pre-wired 66 block does not contain feet, meaning that it will require a backboard or 89B bracket in order to mount it securely to a wall.
To complete your CAT3 network we carry a full end to end solution including CAT3 bulk Ethernet cables, Phone cords, CAT3 modular plugs, CAT3 keystone jacks & couplers, Blank Patch Panels, Telco Blocks, wall plates. We also have a large assortment of tools, testers and cable management accessories that will help make your installation fast, smooth and organized. If you have any questions, feel free to give us a call.
- Voice Grade
- 7' Long 'Hydra' Cable
- Terminated with Six RJ45 Plugs
- Ideal for Cross Connecting PBX Systems
- USOC Wired
|Storage||-40º to +70ºC|
|Operation||-10º to +60ºC|
|Relative Humidity (Operational)||Maximum Noncondensing 93%|
|Insulation Resistance||500MΩ min. @ 100V d.c|
|Dielectric Withstanding Voltage||1000V RMS @ 60Hz for 1 min|
|Spring Wire Contact Resistance||20M Ω Max|
|IDC Contact Resistance||2.5M Ω Max|
|Total Contact Force||800 Grams for A 8 Wire Leads Minimum|
|Retention||50N (11 Ibf) for 60s±5s|
|Insertion / Extraction Life||750 Cycles Minimum|
|IDC Wire Gauge||22 ~ 26 AWG|
|Housing / Bezel||High Impact, Flame Retardant Plastic, UL94V-0|
|Spring Wire||50N (11 Ibf) for 60s±5s|
|Insertion / Extraction Life||Phosphor Bronze Alloy Plated with 50 Micro-inch of Gold Over 70~100 Micro-inch of Nickel|
|IDC||Brass Plated with 100 Micro-inc of Sn|
Telco Block Accessories
Telco blocks are utilized to connect phone systems to data networks. There are two popular forms of telco blocks: the 66 block and the 110 block. The 66 block is quite common in modern phone systems, as they simplify connecting multiple phone lines. The 66 block is also referred to as B-blocks, M-blocks, and as split-50 blocks. We also have Cable Distribution Spools, or mushroom posts for managing your cross connect wire. It is designed for mounting onto walls or other surfaces to help support and guide your cross connect wire. Our cable distribution spools are also ideal for CAT3 cable for telephone applications.
To learn more about our Telco Block Accessories please visit our overview page. Our Pre-Wired 66 Block with RJ45 Hydra Cables can be combined with a wide array of products such as:
- 66 Block Wood Backboard
- CAT6 110 Field Termination Kits
- CAT6 610 Connecting Block Clips
- Mushroom Board
- 66 Wiring Block
What's in the box?
What's in the box?Minimum Order Requirement:
- Qty 2 - Pre-terminated 66 Wiring Blocks with (6) 8C8P RJ45 Plugs on 7' Cables
