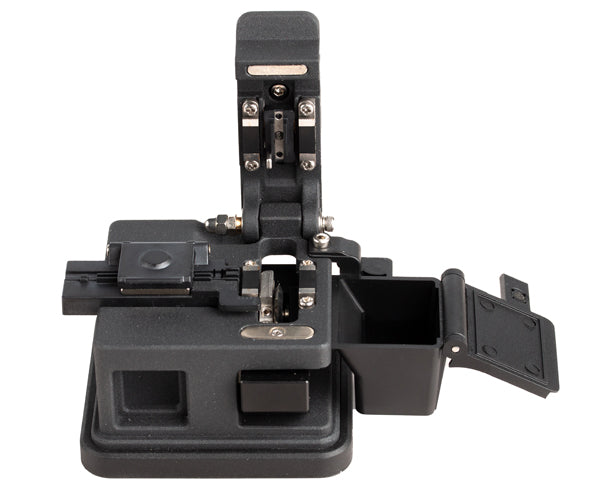

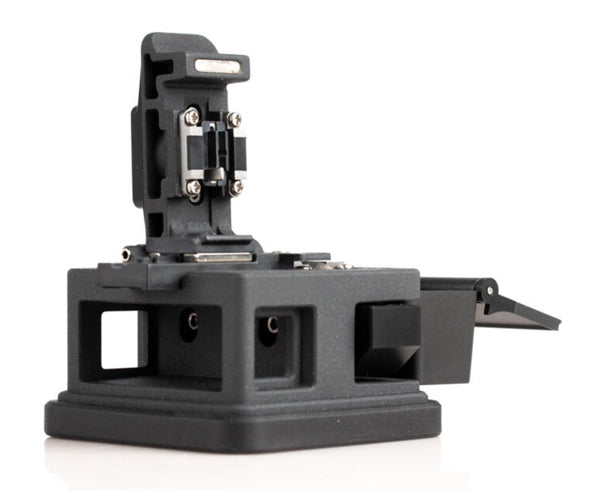

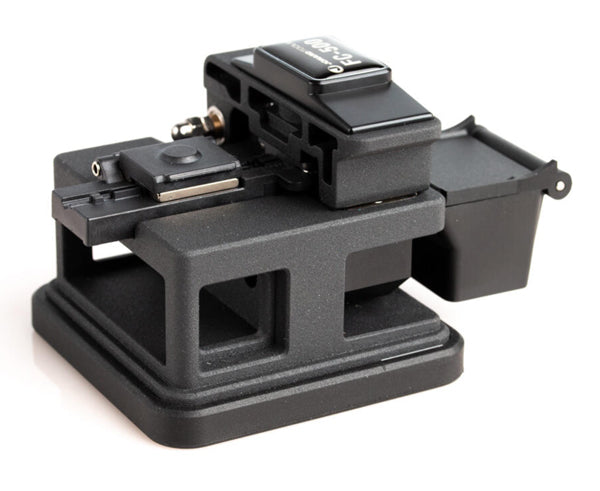

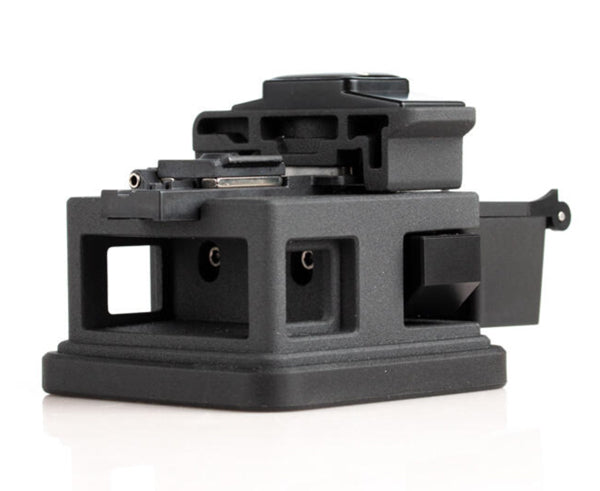

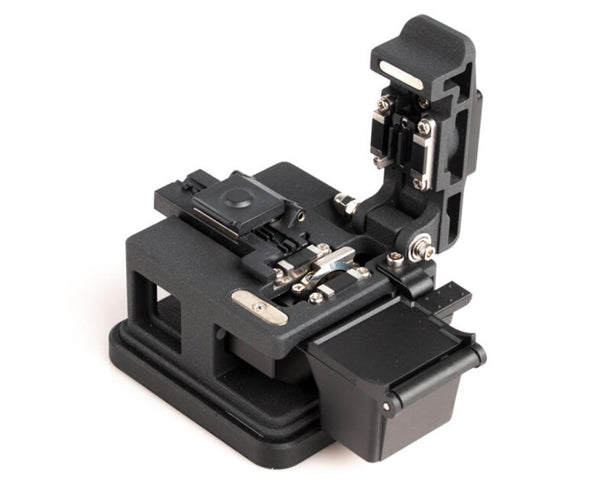

FC-500 Precision Fiber Optic Cleaver
The Jonard Tools FC-500 precision fiber cleaver is designed to provide a precise cleave and prepare a fiber to be fusion spliced for 250 µm and 900 µm coated optical fiber.
Features
Features
- Provides a cleave with a cutting angle of less than 0.5° for optimal fiber preparation for fusion splicing
- Ruggedized design withstands extreme shock levels
- Long life of 48,000 cuts with 16 position blades
- Lightweight and rugged design for long term durability
- Holds 250 µm and 900 µm fiber and comes with built in fiber trash can
- Scaled holder for accurate cleave lengths from 5 to 20 mm (0.20" to 0.79")
- Ideal for fiber technicians, fiber splicers, and anyone that needs to cleave a fiber optic cable prior to performing a fusion splice
Specifications
Specifications
| ITEM | VALUE |
|---|---|
| Applicable Fiber |
Fiber Type: Single Mode Optical Fiber Fiber Type: Multimode Optical Fiber Fiber Count: Single up to 12 Fiber Ribbon Cladding Dia.: Approx. 125 μm |
| Applicable Coating |
Coating Dia.: 250 μm to 900 μm |
| Cleave Length |
Fiber Plate: AD-50 [CD = coating diameter] CD = 250 μm or less: 5 to 20 mm 250 μm < CD < 1000 μm: 10 to 20 mm 1000 μm < CD < 3 mm: 14 to 20 mm Fiber Holder: Approx. 10 mm |
| Cleave Angle |
Single Fiber: < 0.5 degrees |
| Blade Life |
Approx. 48,000 fiber cleaves |
| Physical Description |
Dimensions W: Approx. 100 mm when closing the lever Dimensions D: Approx. 67 mm when closing the lever Dimensions H: Approx. 59 mm when closing the lever Weight: Approx. 260 g |
| Environmental Condition |
Temperature Operate: –10 to 50 °C Temperature Storage: –40 to 80 °C Humidity Operate: 0 to 95% non-condensing Humidity Storage: 0 to 95% non-condensing |
Additional Information
Additional Information
Jonard's FC-500
|
How to Replace the Blade and
|
Jonard Tools FC-500 Call Out Video |
Jonard Tools FC-500 Precision Fiber Cleaver |
What’s In The Box
What’s In The Box
- Qty 1 - FC-500 Precision Fiber Optic Cleaver
