Insulating Bushing For EMT/Rigid Conduit

$1.07
SKU: EMT125
Size
UL Listed Made in USA CSA

Some items may require minimum order quantities which can be changed in your shopping cart.

Description

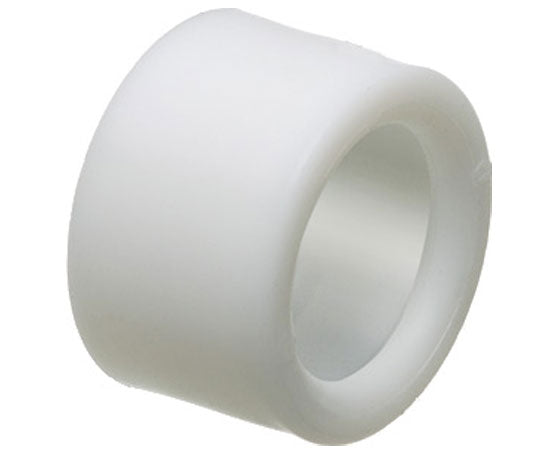

Insulating Bushing For EMT/Rigid Conduit

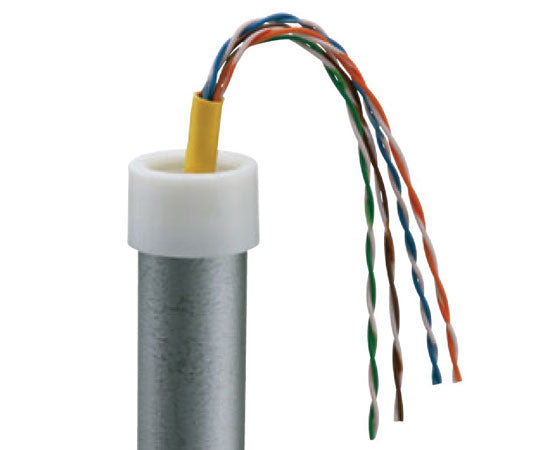

Our Insulating Bushings are used to protect cables from abrasions. This product press fits onto conduit, and holds firmly in place, when cables are pulled through. This product can be substituted for costly fittings when used for cable protection only. Uses include power, computer, data lines, cable TV, audio/video cables, phone/modem, and alarm/security systems.

Features

Features

  • For EMT
  • Listed for use in environmental air handling spaces per 2008 NEC requirements 300-22(c)
  • Meets 2008 NEC requirements for 300-15(c) protection
  • Protect cables from abrasion by the conduit.
  • Press fit. Holds firmly in place when pulling cables.
  • Versatile, Fast, easy installation
  • UL Listed

Specifications

Specifications

Part Number Trade Size DIM A DIM B DIM C
NPNB-EMT100 1" 16" 10.25"
13.25"
NPNB-EMT125 1-1/4" 3.5625"
6.5625"
6.5625"
NPNB-EMT150 1-1/2" 6.5625"
6.5625"
6.5625"
NPNB-EMT200 2" 6.5625"
6.5625"
6.5625"
NPNB-EMT250 2-1/2" 10.875"
7.875"
7.375"
NPNB-EMT300 3" 10.875"
7.875"
7.375"
NPNB-EMT350 3-1/2" 11"
7.875"
10.875"
NPNB-EMT400 4" 11"
7.875"
10.875"

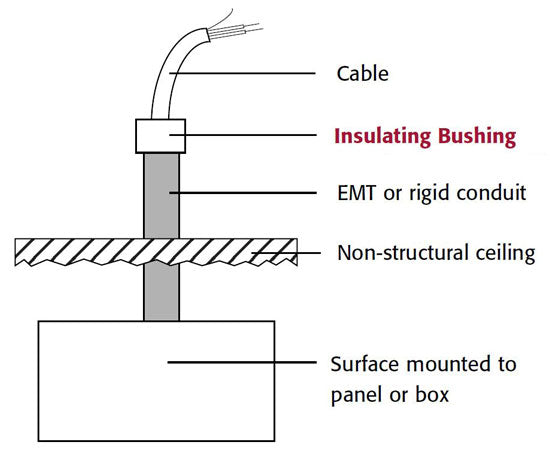

Installation Instructions

What's in the box?

What's in the box?

  • Qty 1 - Press fit Non-Metalic Insulating Bushing for EMT/Rigid
