Push Button Plunger Switch, Open Loop, 9/16" Press Fit w/ Screw Terminals - 10 Pack

$62.40
SKU: AL-GRI-1463-PB
Various lead times may apply to this product. Please contact us for more details.

These products are all Made to Order

Which means they are non-cancelable and non-refundable
Made in USA UL Listed

Description

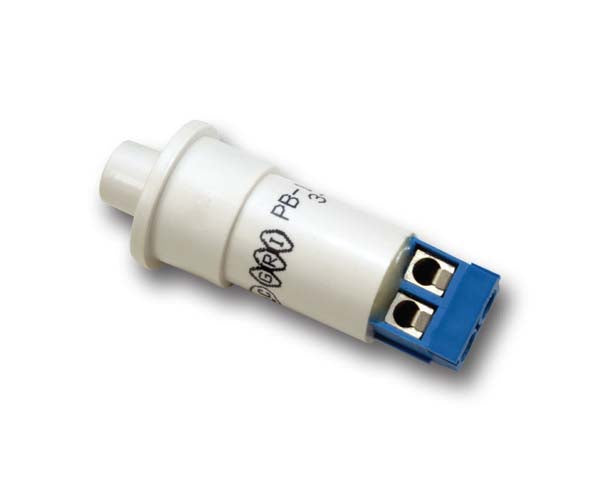

Push Button Plunger Switch, Open Loop, 9/16" Press Fit w/ Screw Terminals - 10 Pack (White)

The Push Button or Plunger actuated series was developed in response to installer request for a direct replacement of an existing and problematic mechanical type contact. The sealed contacts of the reed switch ensure a long service life.

Plunger actuated reed switches have become so popular on new installations that many variations are now being produced. This push button is a press fit design and eliminates the screw mounted flange.

Note: Open Loop or "normal open" means the switch is open when magnet is in close proximity.

Features

Features

  • Recessed Magnetic Contact
  • Plated Contacts Resist Sticking or Freezing
  • Hermetically Sealed

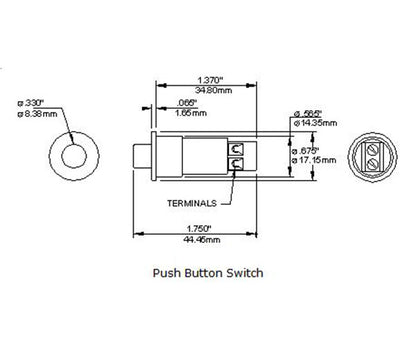

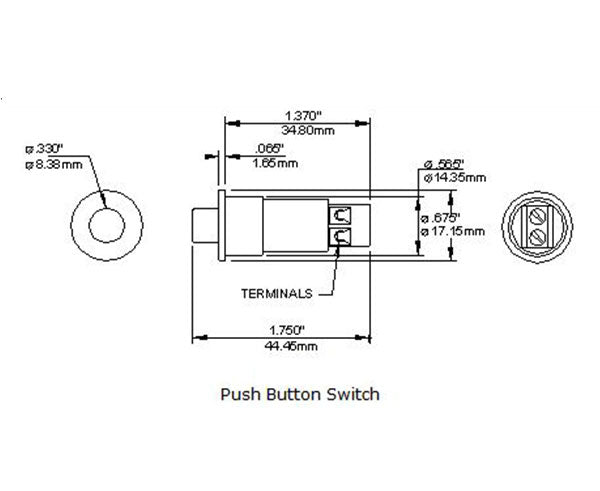

  • 9/16" Press Fit
  • Screw Terminals
  • UL And ULC Approved
  • Open Loop
  • Color: White
  • Made In U.S.A.

Specifications

Technical Specs: Open Loop


Loop Type:   Open
Electrical Config:   N/C
Reed Form:   B
Maximum Intitial Contact Resistance (Ω):   .140
Maximum Contact Rating (W):   5
Maximum Switching Voltage (VDC):   175
Maximum Switching Current (A):   .250
Travel Total:   .270
Pre Travel:   .090 ™ .040

What's in the Box

What's in the Box

  • 10 x Push Button Plunger Switches
