QSFP+ Transceiver Modules, OM4 Multi-mode, 40Gb/s, MPO/MTP Fiber Optical Connector, Cisco Compatible

$359.99
SKU: NPNB-APQPSR4CM01A
Various lead times may apply to this product. Please contact us for more details.
FCC Logo CE Logo RoHS Compliant

Description

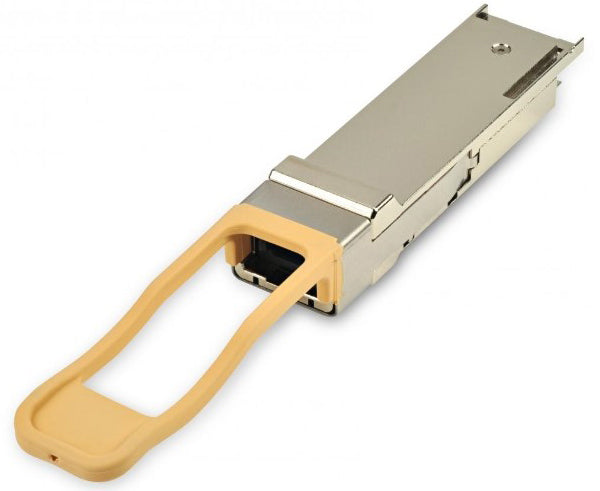

Cisco Compatible MPO/MTP® OM4 40G QSFP+ Transceiver Module

This 40G QSFP (Quad Small Form-Factor Pluggable) portfolio offers customers a wide variety of high-density and low-power 40 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider applications. This Transceiver has 4 independent Full-duplex channels with up to 10.52Gbps data rate per channel. Transceiver can extend the transmission over 150m on OM4 multi-mode ribbon fiber optic cable.

Features

  • 4 independent full-duplex channels up to 10.5Gbps data rate per channel.
  • MTP®/MPO optical connector.
  • Capable of over 150m transmission on OM4 multi-mode ribbon fiber.
  • Single +3.3V power supply.
  • Operating temperature of 0ºC ~ 70ºC

Standards & Compliance's

  • QSFP+ MSA Compliant
  • RoHs Compliant
  • Compliant with IEEE802.3ba
  • Compliant with QSFP+ MSA: SFF-8436

Applications

  • 40G Ethernet
  • Infiniband 4x SDR DDR QDR
  • 40G Telecom Connections
