Description

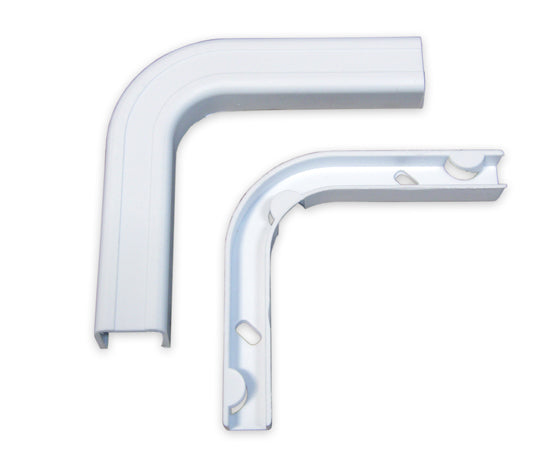

Raceway Duct Flat Elbow Fitting for Latch Duct Molding, 1¾", 1¼", ¾"
Our Raceway Duct Flat Elbow Fittings are designed to allow left and right turns on raceway sections while maintaining proper cable bend radius. This product is great for Cat5e, Cat6, voice and fiber optic cable.
Durability & Strength
Our Raceway Duct Flat Elbow Fittings are made from durable Rigid Flexible PVC that is colored white to blend elegantly into any home or office decor for a sleek, professional installation. It snaps directly to a raceway duct.
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| APPLICATION | INDOOR |
| CHEMICAL RESISTANCE | RETAINS A MINIMUM OF 50% OF TENSILE STRENGTH AFTER 30 DAY EXPOSURE TO 3% H2SO4, .2N NAOH, NH3, 90% ALCOHOL, KEROSENE, 10% LGEPAL |
| FUNGUS RESISTANCE | ASTM G21 ZERO RATING PER GR 3126 REQUIREMENT |
| CRUSH RESISTANCE | 300 LBS. PER GR3126 REQUIREMENT |
| INSTALLATION TEMPERATURE RANGE | -18°C TO 45°C (0°F TO 113°F) |
| DIMENSIONS | 1.25" | .75" | 1.75" |
| COLOR | WHITE |
| MATERIAL | RIGID FLEXIBLE PVC |
| OPERATING TEMPERATURE | -18°C TO 58°C (0°F TO 136°F) |
| SAFETY STANDARD | UL 2024:2014 ED. 5 AND CSA C22.2 #262:2004 ED. 1 OPTICAL FIBER CABLE AND COMMUNICATION CABLE RACEWAY SYSTEMS (SELECT COLORS) |
Additional Information
| THIS FITTING IS COMPARABLE TO THE FOLLOWING PANDUIT, WIREMOLD, TYTON AND DEK PART NUMBERS: | ||||
|---|---|---|---|---|
| SIZE | PANDUIT PART NUMBER | WIREMOLD | TYTON PART NUMBER | DEK PART NUMBER |
| 0.75" | RAFC3 | 2711 | TSR1-25-1 | 043-0025 |
| 1.25" | RAFC5 | 2811 | TSR2-25-1 | N/A |
| 1.75" | RAFC10 | 2911 | TSR3-25-1 | 042-0025 |
What's in the Box
What’s in the Box
- Qty 1 - Raceway Duct Flat Elbow Fitting
