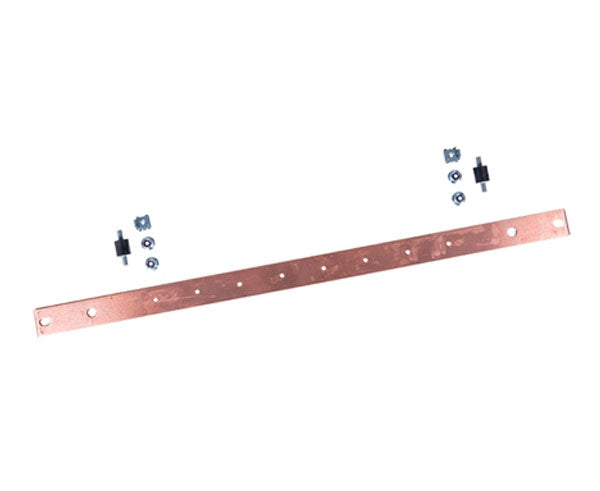

Rack Mount Bus Bar Kit

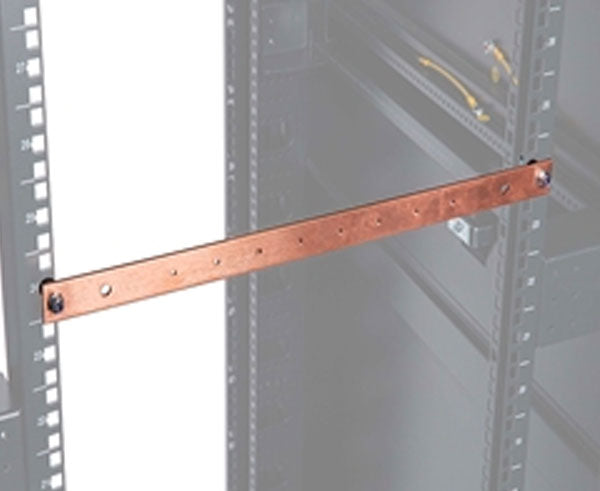

This 19” copper bus bar provides a convenient grounding location for equipment inside a cabinet or on an open frame rack. The 19” x 1” x 0.125” bar is 99.9% pure copper and features (8) 10-32 tapped holes for equipment grounding. Isolating standoffs and 10-32 hardware are included for installation.
Features
Features
- Dimension 19" x 1" x 0.125"
- Made of 99.9% Pure C11000 Electrolytic Tough-Pitch Copper
- 10-32 tapped holes for equipment grounding
- 10-32 hardware are included
Specifications
Specifications
| Material | 99.9% Pure C11000 Electrolytic Tough-Pitch Copper |
| Dimensions (HxWxD) |
19" x 1" x 0.125" |
| Mounting Hardware |
10-32 Included |
| Quantity Per Package |
1 kit |
What's in the Box
What's in the Box
- Qty 1 - Rack Mount Bus Bar Kit
