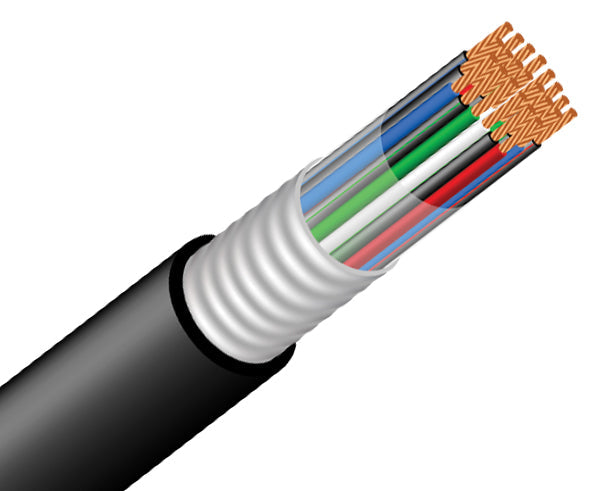

PE-89 Direct Burial Telecom Cable, Foam Filled Skin, 22 AWG, Black - Per Foot

PE-89 Direct Burial Telecom Cable, Foam Filled Skin, 22 AWG, Black - Per Foot

BY Primus Cable

Call for Pricing

SKU: SKU: PE89-3900-6/22

Pairs

 Various lead times may apply to this product. Please contact us for more details.

View full details

This product is sold by the foot. Minimum 1,000FT.

Solid, Annealed Copper, Size 22 AWG

 Core Construction:

Conductors: Solid, annealed copper; sizes 22 AWG
Insulation: Dual insulation consisting of an inner layer of foamed polyolefin surrounded by a solid polyolefin skin, color coded in accordance with telephone industry standards.
Twisted Pairs: Insulated conductors are twisted into pairs with varying lay lengths to minimize crosstalk.
Core Assembly:

25 pairs and less: pairs are assembled together in a single group.

More than 25 pairs: pairs are arranged in groups, each group having a color coded unit binder.

Filling Compound: The entire core assembly in completely filled with ETPR compound, filling the interstices between the pairs and under the core tape.
Core Wrap: Non-hygroscopic dielectric tape applied longitudinally with an overlap.


Sheath:

Aluminum Shield:

Corrugated, copolymer-coated, 0.008" aluminum tape applied longitudinally with an overlap.

The sheath interfaces are flooded with an adhesive water-blocking compound.

Jacket: Black, linear low density polethylene


 Application:

Inteded for duct and direct buried installations where protection against water and mositureentry is required and may also be installed aerially.


 Compliance:

Rural Development Utility Program (RDUP) 7CFR 1755.890 (RUS PE-89)

RoHS Compliant (effective 1/1/10)


 Packaging:

Standard lengths are shipped on non-returnable wood reels.

Non-standard packaging is available upon request.

Coming Soon...

 Nominal Cable Data:

 Pairs:  6
 Size:  22 AWG.
 O.D. (Inches):  0.42
 Weight (Lbs./MFT):  85
 Standard Length (Feet):  5000 Feet


 Core Construction:

Conductors: Solid, annealed copper; sizes 19, 221 and 22 AWG
Insulation: Dual insulation consisting of an inner layer of foamed polyolefin surrounded by a solid polyolefin skin, color coded in accordance with telephone industry standards.
Twisted Pairs: Insulated conductors are twisted into pairs with varying lay lengths to minimize crosstalk.
Core Assembly:

25 pairs and less: pairs are assembled together in a single group.

 More than 25 pairs: pairs are arranged in groups, each group having a color coded unit binder.

Filling Compound: The entire core assembly in completely filled with ETPR compound, filling the interstices between the pairs and under the core tape.
Core Wrap: Non-hygroscopic dielectric tape applied longitudinally with an overlap.


Sheath:

Aluminum Shield:

Corrugated, copolymer-coated, 0.008" aluminum tape applied longitudinally with an overlap.

The sheath interfaces are flooded with an adhesive water-blocking compound.

Jacket: Black, linear low density polethylene


 Application:

Inteded for duct and direct buried installations where protection against water and mositureentry is required and may also be installed aerially.


 Compliance:

Rural Development Utility Program (RDUP) 7CFR 1755.890 (RUS PE-89)

RoHS Compliant (effective 1/1/10)


 Packaging:

Standard lengths are shipped on non-returnable wood reels.

Non-standard packaging is available upon request.
