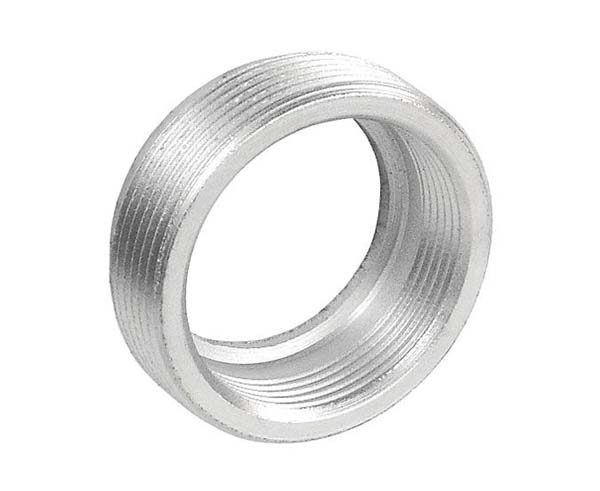

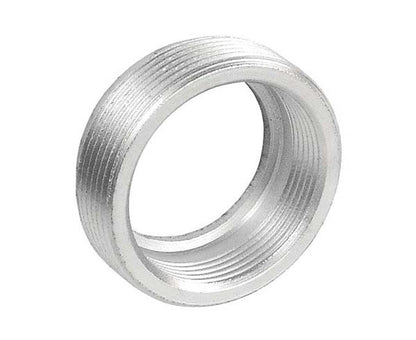

Reducing Bushing - Stainless Steel

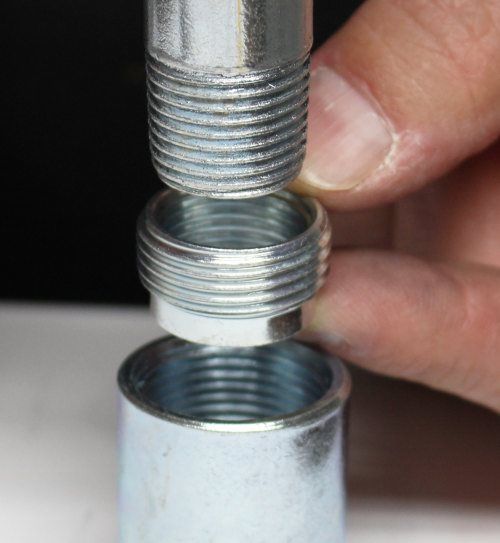

Reducing bushings are used with stainless steel threaded rigid or IMC conduits to reduce the size of female hubs in order to accommodate smaller sized conduits or male threaded hubs.
Features
Features
- Durable Stainless Steel Construction – Built to withstand corrosion, rust, and harsh environments for long‑lasting performance.
- Versatile Conduit Size Reduction – Designed to reduce female hub sizes, allowing seamless connection between larger and smaller conduits.
- Compatible with Rigid and IMC Conduits – Engineered for use with stainless steel threaded rigid or intermediate metal conduits.
- Secure Threaded Design – Provides a tight, reliable fit that ensures electrical continuity and mechanical strength.
- Wide Range of Trade Sizes Available – Offered in multiple size combinations to meet diverse installation requirements.
- Ideal for Electrical and Industrial Applications – Perfect for commercial, industrial, and outdoor conduit systems.
- Easy Installation – Simple to thread and tighten, saving time on job sites.
- High Resistance to Wear and Impact – Maintains integrity under demanding conditions, ensuring safe and efficient conduit transitions.
Specifications
Specifications
| Part Number | Trade Size |
|---|---|
| NPNB-RB-5038SS | 1/2" to 3/8" |
| NPNB-RB-7550SS | 3/4" to 1/2" |
| NPNB-RB-10050SS | 1" to 1/2" |
| NPNB- RB-10075SS | 1" to 3/4" |
| NPNB- RB-12550SS | 1-1/4" to 1/2" |
| NPNB- RB-12575SS | 1-1/4" to 3/4" |
| NPNB- RB-125100SS | 1-1/4" to 1" |
| NPNB-RB-150100SS | 1-1/2" to 1" |
| NPNB-RB-15075SS | 1-1/2" to 3/4" |
| NPNB-RB-20050SS | 2" to 1/2" |
| NPNB-RB-20075SS | 2" to 3/4" |
| NPNB-RB-200100SS | 2" to 1" |
| NPNB-RB-200125SS | 2" to 1-1/4" |
| NPNB-RB-200150SS | 2" to 1-1/2" |
| NPNB-RB-25050SS | 2-1/2" to 1/2" |
| NPNB-RB-25075SS | 2-1/2" to 3/4" |
| NPNB-RB-250100SS | 2-1/2" to 1" |
| NPNB-RB-250125SS | 2-1/2" to 1-1/4" |
| NPNB-RB-250150SS | 2-1/2" to 1-1/2" |
| NPNB-RB-250200SS | 2-1/2" to 2" |
| NPNB-RB-300100SS | 3" to 1" |
| NPNB-RB-300125SS | 3" to 1-1/4" |
| NPNB-RB-300150SS | 3" to 1-1/2" |
| NPNB-RB-300200SS | 3" to 2" |
| NPNB-RB-300250SS | 3" to 2-1/2" |
| NPNB-RB-350200SS | 3-1/2" to 2" |
| NPNB-RB-350250SS | 3-1/2" to 2-1/2" |
| NPNB-RB-350300SS | 3-1/2" to 3" |
| NPNB-RB-400200SS | 4" to 2" |
| NPNB-RB-400250SS | 4" to 2-1/2" |
| NPNB-RB-400300SS | 4" to 3" |
| NPNB-RB-400350SS | 4" to 3-1/2" |
| NPNB-RB-500400SS | 5" to 4" |
| NPNB-RB-600500SS | 6" to 5" |
What's in the box
What's in the box
- Qty 1 - Steel Reducing Bushing - Zinc-Plated
