Recessed 3/4” and 1" Steel Door Switch Set - 180-12/184-12/8080-T Series - 10 Pack

by GRI
SKU: 180-12
Size & Diameter
Loop Type
Various lead times may apply to this product. Please contact us for more details.

These products are all Made to Order

Which means they are non-cancelable and non-refundable


Recessed 3/4” and 1" Steel Door Switch Set - 10 Pack

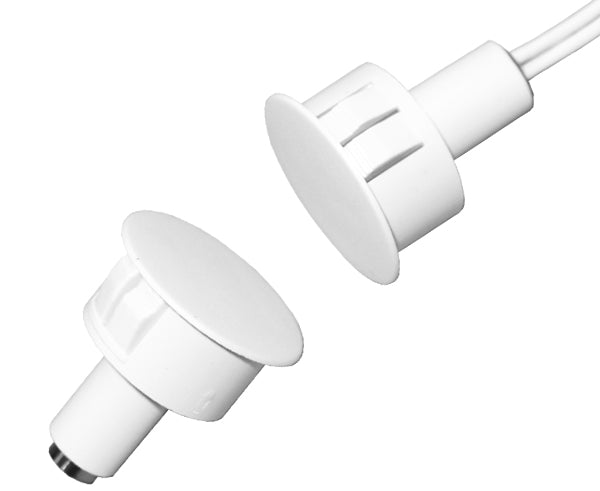

The 180 Series is the industry standard 3/4" diameter recessed steel door switch set with 12" leads. The 184 Series is a 1" diameter switch set.

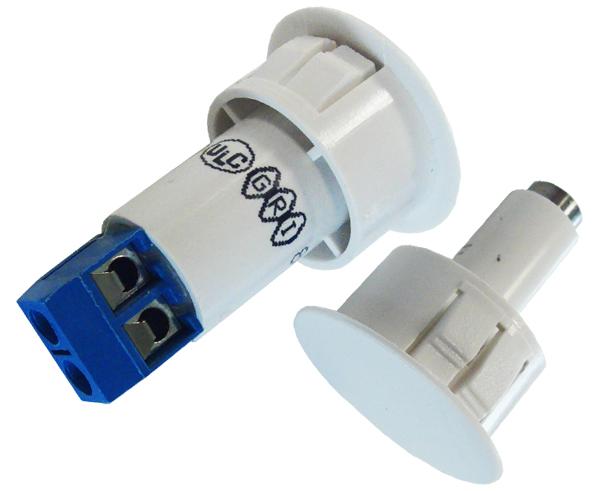

The innovative 8080-T Series is a 3/4" diameter recessed switch set designed for residential, commercial and industrial steel doors and frames. The shorter length and the introduction of PC board type terminals makes the installation of the set quick and simple with no soldering, B connectors or tape to catch during installation or removal, reducing the cost of installation and creating greater profitability.


  • Lifetime Warranty
  • Colors: White, Brown, Grey or Black
  • UL and ULC Approved
  • 180-12 & 184-12 UL 10C Fire Rated
  • Available in Closed Loop, Open Loop and SPDT
  • 3/4" and 1" Diameter Mounting
  • Standard 12" Leads or Terminals
  • Self-Locking
  • Solid, One Piece Design
  • 7/8" Diameter also Available - Call Factory
  • Switches or Magnets are Available Separately
  • Standard 1/2"+ Gap on Steel
  • Wide Gap 1"+ Gap on Steel
  • Supervisory Loops Available
  • Made In U.S.A.


What's In The Box

  • 10 x Magnetic Recessed Switch Sets (Switches + Magnets)
