Description
Description

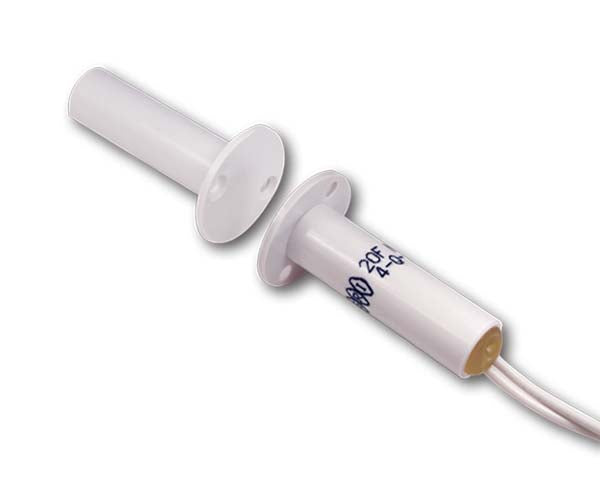

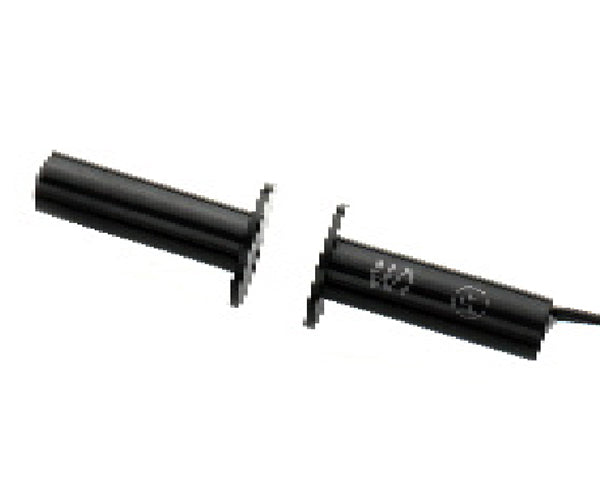

Recessed 3/8” Flanged Switch Set - 10 Pack
The 20F and 20 OF Series are a flush mount design that enable the installer to combine the security of a screw mount flanged switch with the concealment of a press fit switch. They have been used in hollow aluminum frames where inadequate material depth will not reliably retain a press fit switch and in holes that have been drilled or have somehow become slightly oversized. They are available in 1/2" to 1 1/2" gap. Mounting hardware is provided.
Features
Features
- Recessed Magnetic Contact
- Round or Oval Screw Down Flange
- 12” Leads #22AWG Leads
- Longer Leads, Zip Cord or Jacketed Cable Upon Request
- Hermetically Sealed
- Plated Contacts Resist Sticking or Freezing
- Mounting hardware included
- Built-in E.O.L. Resistors and Diodes Upon Request
- Switches and Magnets Available Separately
- Colors: White, Brown, Gray, Black
- Lifetime Warranty
- Made in U.S.A.
Specifications
Specifications
What's In The Box
What's In The Box
- Qty 10 - Magnetic press fit recessed switches with round flanges
- Qty 10- 1/4" x 1" or 3/8" x 1 1/2" rare earth magnets
- Qty 10 - 22AWG leads
