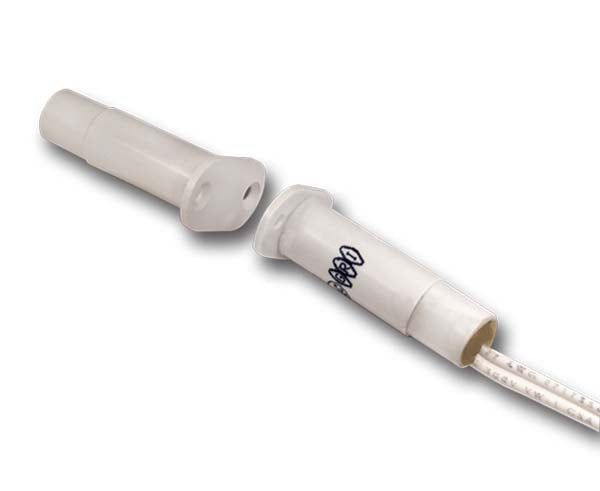

Magnasphere 3/8in Recessed Flanged Switch Set - MS20F/MS20-OF Series - 10 Pack

by GRI
SKU: MS20F-12-W
Various lead times may apply to this product. Please contact us for more details.

These products are all Made to Order

Which means they are non-cancelable and non-refundable

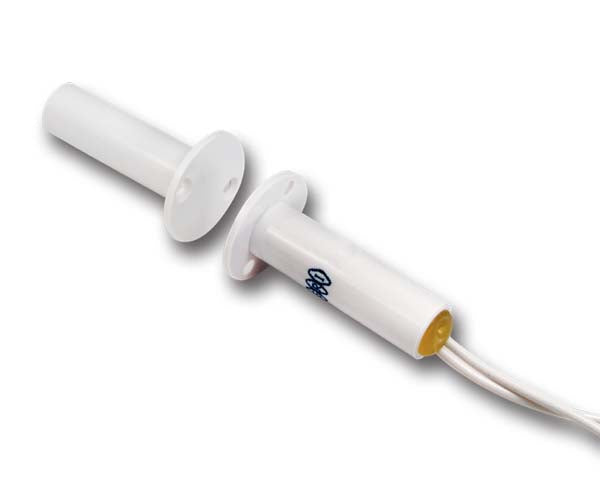

Magnasphere 3/8” Recessed Flanged Switch Set - 10 Pack

This flanged switch set has a flush mount design that enable the installer to combine the security of a screw mount flanged switch with the concealment of a press fit switch. They have been used in hollow aluminum frames where inadequate material depth will not reliably retain a press fit switch and in holes that have been drilled or have somehow become slightly oversized. Mounting hardware is provided.

Magnasphere’s patented technology utilizes the principal of Spherical Magnetism. The heart of the switch is a magnetic sphere, or ball contact. This sphere is housed in a durable metal housing. Completing the switch is a seal that contains the contacting electrode, insulated from the magnetic perimeter by a time proven ceramic to metal bond. The case or seal provides the second contact point required to complete the electrical circuit. The seal/electrode cap is welded to the housing in an inert atmosphere providing a hermetically sealed contact.


  • Higher Level of Security
  • Spherical Magnetism
  • Resistant to Magnetic Tamper and Defeat
  • Hermetically Sealed
  • Round or Oval Screw Down Flange
  • Built-In E.O.L. Resistors and Diodes Upon Request
  • Switches and Magnets Available Separately
  • Colors: White, Brown, Gray, Black
  • Lifetime Warranty
  • Standard Gap 3/8”
  • Made in U.S.A.


What's In The Box

  • 10 x Magnetic press fit recessed switches with round/oval flanges
  • 10 x 1/4" x 1" or 3/8" x 1 1/2" rare earth magnets
  • 10 x 22AWG leads
