Miniature Surface Mount Switch Sets - 1100 Series - 10 Pack

by GRI
$65.60
SKU: 1100A-12
Size & Diameter
Gap
Loop Type
Various lead times may apply to this product. Please contact us for more details.

These products are all Made to Order

Which means they are non-cancelable and non-refundable

Description

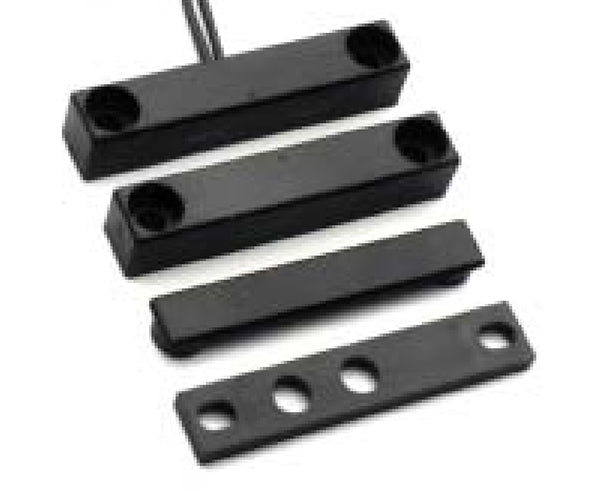

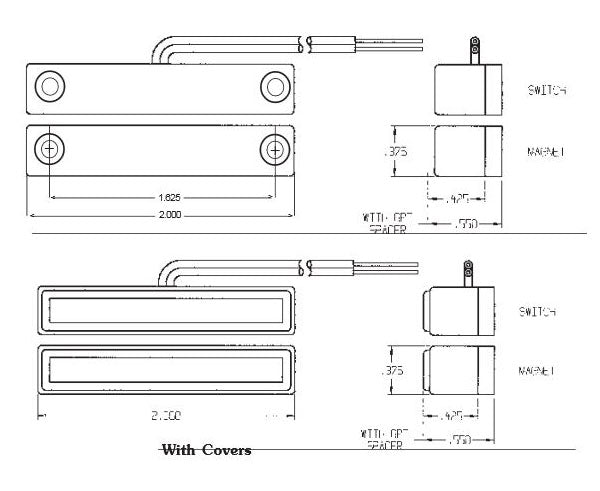

Miniature Surface Mount Switch Sets - 10 Pack

The 1100 Series offers the installer convenience and versatility with its smaller size and attractive design allowing it to be used in both residential or commercial applications. With its Standard Gap of over 1" and a wide gap of 1 1/2", the 1100 gives even more options for usage.

Packaged with one spacer, applicable mounting hardware, the 1100 also has a cover which gives a finished look to the installation, plus adds the option for private labeling.

Features

Features

  • One Inch Plus Standard Gap
  • Surface Mount Magnetic Contact For Residential and Light Commercial Applications
  • Screw Mount
  • 12” #22AWG Leads
  • Longer Leads, Zip Cord or Jacketed Cable Upon Request
  • Hermetically Sealed
  • Plated Contacts Resist Sticking or Freezing
  • Attractive Covers, Spacers, Double Stick Tape and Mounting Hardware Included
  • Built-in E.O.L. Resistors and Diodes Upon Request
  • Supervisory Loops Upon Request
  • Switches & Magnets Available Separately
  • Private Labeling Upon Request
  • Colors: White, Brown, Gray
  • Lifetime Warranty
  • Made In U.S.A.

Specifications

Specifications


What's In The Box

What's In The Box

  • 10 x Surface Mount Magnetic Reed Switches
  • 10 x Magnets
  • Covers, Mounting Screws + Adhesive
