Reed Switch Set, Open Loop, Miniature 1/4" Recessed Press Fit w/ Cable Leads - 10 Pack

$57.80
SKU: NPNB-60R-12-W
Gap

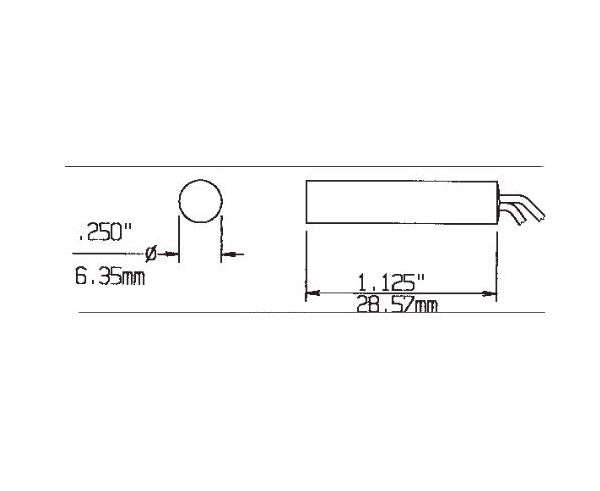

Size & Diameter in Inches
Various lead times may apply to this product. Please contact us for more details.
Made in USA UL Listed

Description

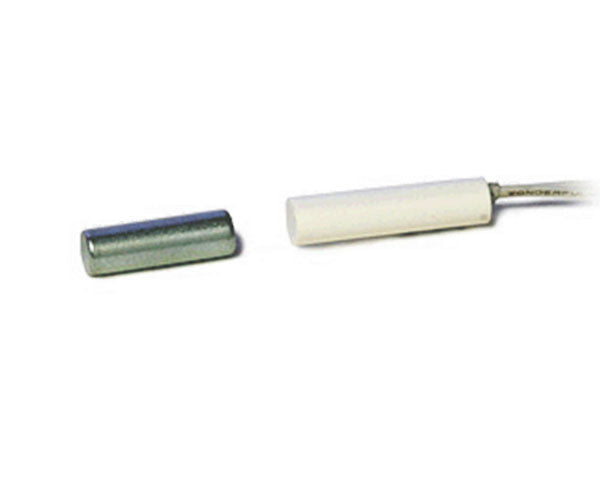

Open Loop, Miniature 1/4" Recessed Press Fit Reed Switch Set w/ Cable Leads - 10 Pack (White)

The miniature 1/4" recessed reed switch sets with standard leads are 1/4" diameter magnetic switch sets designed for applications where a small diameter recessed reed switch set is required. This makes the magnetic switch set desirable in residential installations where no sign of an alarm system should be seen or where there is not room to install a larger diameter reed switch set. It is a straight cylindrical magnetic switch set for flush or counter sunk installations.

Note: Open Loop or "normal open" means the switch is open when magnet is in close proximity.

Features

Features

  • For Residential And Light Commercial Applications
    Where Aesthetics Are A Requirement
  • Plated Contacts Resist Sticking or Freezing
  • Recessed Magnetic Contact
  • Multiple Choice Gap Size
  • Press To Fit
  • Standard 12", 36" Or 72" Leads
  • Hermetically Sealed
  • Open Loop
  • UL and ULC approved
  • Made In U.S.A.
  • Color: White

Specifications

Specifications

    Technical Specs:


    Loop Type:   Open
    Electrical Config:   N/C
    Reed Form:   B
    Maximum Intitial Contact Resistance (Ω):   .140
    Maximum Contact Rating (W):   5
    Maximum Switching Voltage (VDC):   175
    Maximum Switching Current (A):   .250
    Standard Gap:   1/2" +
    Wide Gap:   3/4" +

    What's in the box?

    What's in the box?

    • Qty 10 - Recessed Reed Switch Sets (Switches + Magnets)
