These products are all Made to Order
Which means they are non-cancelable and non-refundable
Description
Description

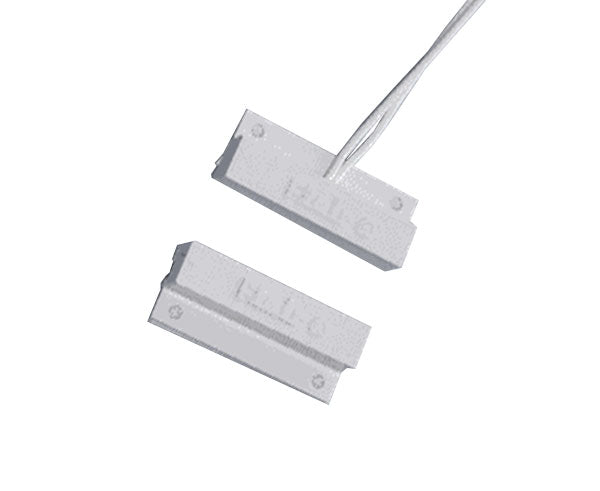

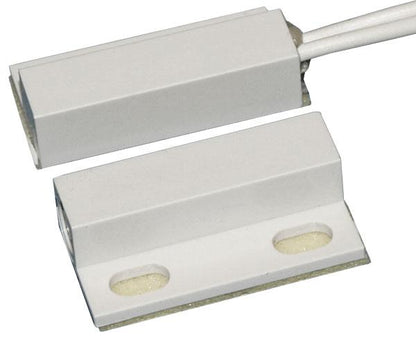

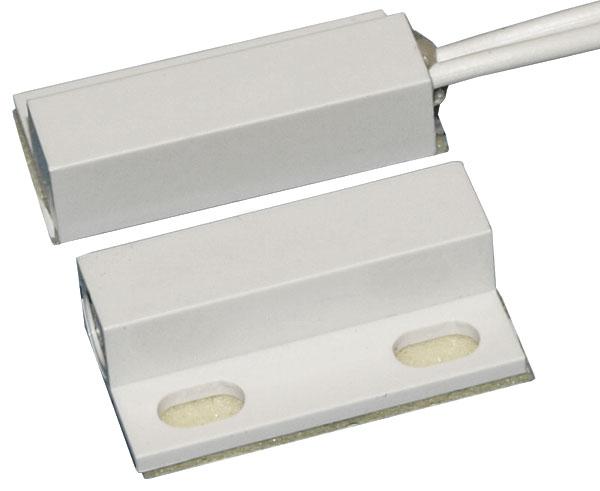

Miniature Surface Mount Switch Sets - 10 Pack

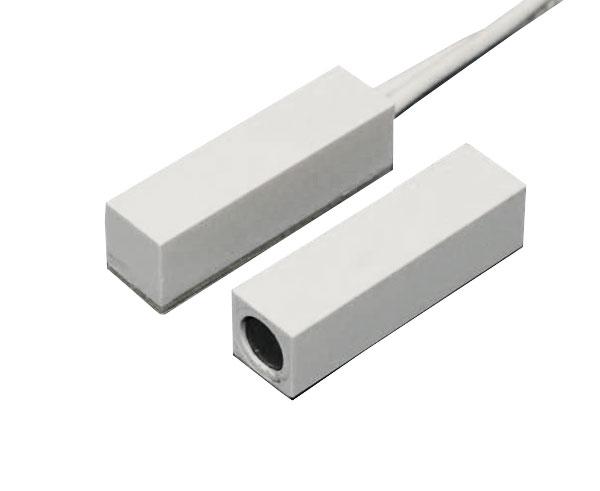

The 50, 50F and 55F Series switch sets are the most chosen configurations for residential installations. A low profile plus self adhesive 3M tape make installing the sets quick and simple. The 50F and 55F come with a breakaway flange for applications where screw mounts are advisable. The 50 type is self adhesive only. The 50 and 50F have 12" leads exiting the case on the end. The 55F has 12" leads exiting from the middle of the case.
Available in Open Loop, Closed Loop and SPDT, Regular and Wide Gap, White, Brown and Gray. All mounting hardware included
Features
Features
- Excellent For Residential Applications
- Surface Mount Magnetic Contact
- Self Stick or Breakaway Screw Down Flange
- Center or End 12” #22AWG Leads
- Longer Leads, Zip Cord or Jacketed Cable Upon Request
- Hermetically Sealed
- Plated Contacts Resist Sticking or Freezing
- Mounting Hardware Included
- Built-in E.O.L. Resistors and Diodes Upon Request
- Supervisory Loops Upon Request
- Switches and Magnets Available Separately
- Lifetime Warranty
- Colors: White, Brown, Gray, Almond
- Made In U.S.A.
Specifications
Specifications
What's In The Box
What's In The Box
- Qty 10 - Surface Mount Magnetic Reed Switches
- Qty 10 - Magnets
- Qty 1 - Mounting Hardware
