Description

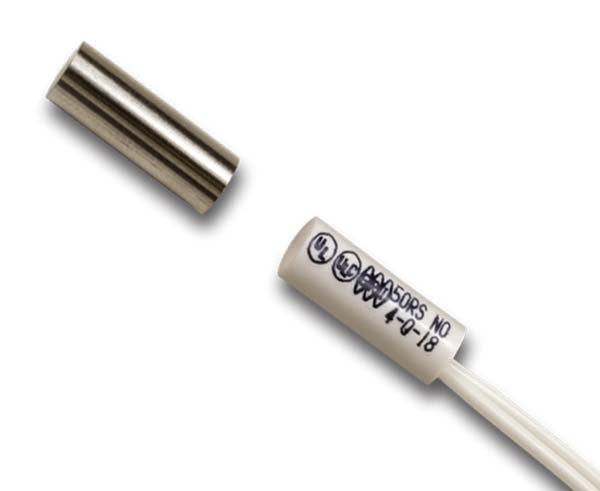

SPDT Open/Closed, 1/2" Recessed Magnetic Switch w/ Cable Leads + Magnet - 10 Pack (White)

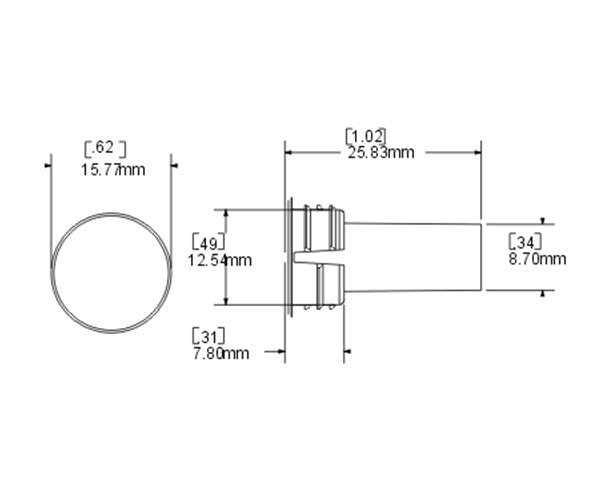

This recessed SPDT "Open/Closed" style magnetic reed switch with #22AWG leads is larger than 3/8" but smaller than 3/4". We introduce the newest innovative switch design, the one-half inch diameter, flush mount. This new design is in response to requests from our customers for a switch that would give them additional "working room" for extra wire, E.O.L. resistors, etc., yet would more readily install in the increasingly popular hollow core windows. Designed with a 1/2" diameter contact, manufactured from a special polyvinyl material with a unique collar design that will "press-fit" into wooden or vinyl clad windows with a "snap-in" fit for hollow core vinyl or aluminum windows. You have the choice between multiple gap sizes and cable lead length options.
Note: SPDT Open/Closed means the switch has common, open and closed sides.
Features
Features
- Designed for Hollow Core Doors & Windows
- Installs Firmly in Wood, Vinyl And Aluminum
- Plated Contacts Resist Sticking Or Freezing
- Hole Size Allows for Extra Wire, etc.
- 12", 36" Or 72" #22AWG Leads
- Multiple Choice Gap Width
- Recessed Magnetic Contact
- Press Or Snap Fit
- Hermetically Sealed
- SPDT Open/Closed Loop
- Made In U.S.A.
- Color: White
Specifications
Specifications
Technical Specs: |
|||
| Loop Type: | Open/Closed | ||
| Electrical Config: | SPDT | ||
| Reed Form: | C | ||
| Maximum Intitial Contact Resistance (Ω): | .140 | ||
| Maximum Contact Rating (W): | 5 | ||
| Maximum Switching Voltage (VDC): | 175 | ||
| Maximum Switching Current (A): | .250 | ||
| Standard Gap: | Up To 1" | ||
| Wide Gap: | Up To 1 1/4" | ||
| Wide Gap 1" + | 1" + | ||
What's in the box?
What's in the box?
- Qty 10 - Magnetic Recessed Switch Sets (Switches + Magnets)
