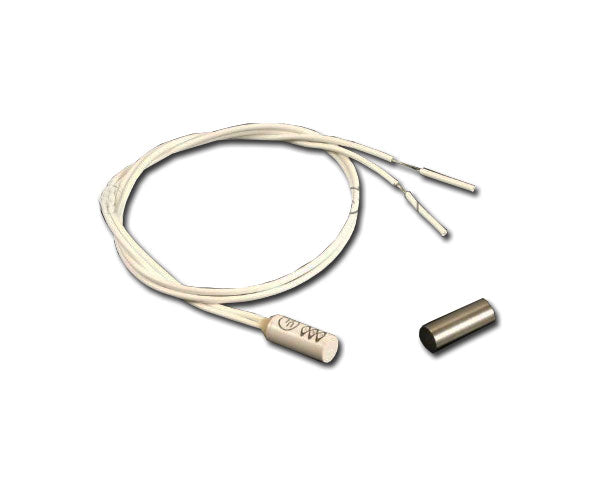

Reed Switch Set, Super Miniature Recessed with 1/2" Wide Gap, 12" Leads - Open Loop - 10 Pack

$76.00
SKU: NPNB-60RS-12WG
Various lead times may apply to this product. Please contact us for more details.

Super Miniature Recessed Reed Switch Set, 1/2™ Wide Gap, Open Loop

The Super Mini Recessed Switch series includes 1/4" diameter switches with recessed magnetic contacts. This recessed magnetic switch is ideal for applications requiring miniature switches like thin framed windows and doors. Measuring only .562" in length, this recessed magnetic switch can be installed where standard switches are too large.

The mini recessed magnetic switch is commonly used in the manufacture of alarm screens. It is hermetically sealed with plated contacts that resist freezing or sticking.

Features

  • Comes with M-17 1/4" x 5/8" bare magnet
  • Ideal for thin framed doors and windows
  • Ideal in jobs for which a regular size switch is too Long
  • Recessed magnetic contact
  • Wide 1/2" gap
  • Standard 12" leads
  • Hermetically sealed
  • Plated contacts resist sticking or freezing
  • Open loop
  • UL and ULC approved
  • Color: white
  • Made In U.S.A.

Technical Specs:


Loop Type:   Open
Electrical Config:   N/C
Reed Form:   B
Maximum Intitial Contact Resistance (Ω):   .140
Maximum Contact Rating (W):   5
Maximum Switching Voltage (VDC):   175
Maximum Switching Current (A):   .250
Standard Gap:   1/4" +
Wide Gap:   1/2" +
Extra Wide Gap:   3/4" +

What's in the Box

  • (10) - Magnetic recessed switches
  • (10) - M-17 1/4" x 5/8" bare magnets
  • (10) - 12" 22 AWG leads
