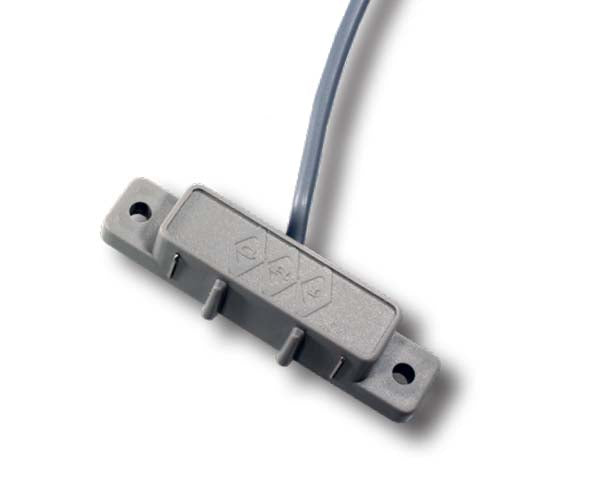

Remote Terminal Sensor + Case - Normally Closed For A Closed Loop Circuit 12 Volts DC
Remote Terminal Sensor - Normally Closed For A Closed Loop Circuit 12 Volts DC
Remote Terminal Sensor - Normally Closed For A Closed Loop Circuit 12 Volts DC with one Remote Sensor Case With Terminal Connections NPNB-2600T-PHS.
Undetected water damage, such as that caused by leaking pipes or corroded water heaters, cost homeowners tens of thousands of dollars each year. Such repairs are time consuming and costly to correct. Applications could include computer room sub-floor areas, telephone equipment rooms, bathrooms, laundry rooms, any areas adjacent to a water storage tank or piping. Also evaporative air conditioners, drip pans, overflows and/or drains. Using no mechanical parts, the Water Sensors are triggered by a moisture bridge across the sensor contacts. The Water Sensors can be installed to detect a layer of water as minute as 1/16 of an inch in depth.
Closed Loop Sensors use an external power source to energize a built-in relay contact so battery power is not recommended. Used in a closed loop configuration, an alarm condition will occur when moisture is detected, or if power to the sensor is lost, and if the sensor should fail. The relay output can be wired directly to any alarm panel or can be used to actuate an external device, i.e. transmitter, annunciator, etc.
- Remote Terminal Sensor
- Normally Closed For A Closed Loop Circuit 12 Volts DC
- Includes 1 Remote Sensor Case With Terminal Connections
- Made In U.S.A.
Technical Specs: Closed Loop
|Operating Voltage (Volts DC)||12|
|Operating Current (mA)||10|
|Contact Resistance (m Ω)||100|
|Switching Voltage (Volts DC Max.)||200|
|Switching Current (mA Max.)||500|
|Carry Current (Amp Max)||1|
|Power (VA Max)||10|
|Wire Contacts||Red Wire||+12 Volts DC|
|Black Wire||- Ground|
|Green Wire||Relay Contact|
|White Wire||Relay Contact|
|*Note: Battery Power Not Recommended.|
What's in the box?
What's in the box?
- Qty 1 - Remote Terminal Sensor
- Qty 1 - Remote Sensor Case With Terminal Connections
