Resistor Pack, Terminal Block, Dual, 2-1K - 10 Pack

by GRI
$65.80
SKU: 6644T
Various lead times may apply to this product. Please contact us for more details.

These products are all Made to Order

Which means they are non-cancelable and non-refundable

Description

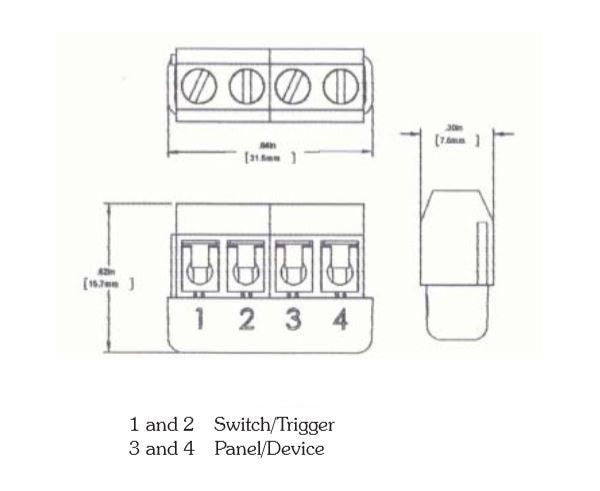

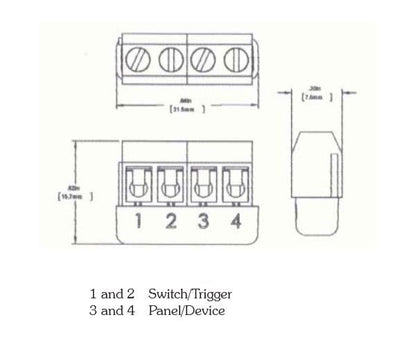

Resistor Pack, Terminal Block, Dual, 2-1K - 10 Pack

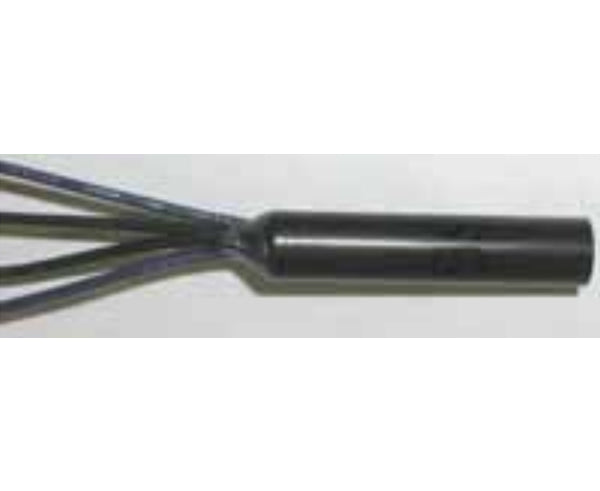

Resistor only packs can be custom designed to your specifications using commonly available values. Available in, or without a case. Our very popular 6644 features 2 - 1K 1/8 watt 5% carbon film resistors in our 50R brown case with 2 blue and 2 black 12-inch leads.

The ideal position for the end of line resistor (E.O.L.) is at the farthest point from the panel in the zone loop. This will confirm the integrity of most, if not all, of the wiring between the panel and the last device installed on the zone loop, thus preventing any intentional or accidental compromise of the security zone loop. The closer the E.O.L. is mounted to the panel in the wiring loop, the greater the possibility of compromise of the unprotected loop wiring after the resistor position. Door and window contacts with built-in resistors are the absolute best and easiest way of placing the end of line resistor in that ideal position. Resistors are available in most all popular values in 1/8 or 1/4 watt depending on size constraints. Multi-resistor configurations in conjunction with built-in switches are offered, as well as resistor only packages. Most popular security panel resistor values available. Please state value when ordering.

Features

  • Supervision For Open and Closed Loop Systems
  • Eliminates Soldering on the Job
  • Standard Switch Uses 1/8 or 1/4 Watt Resistors
  • Closed Loop Switches Have Resistors In Series To Switch
  • Open Loop Switches Have Resistors Parallel To Switch
  • Resistor Only Packs Are Available For Retro-Fits
  • Available In Standard Colors
  • Made In U.S.A.

Specifications


What's In The Box

  • 10 x Resistor Packs
