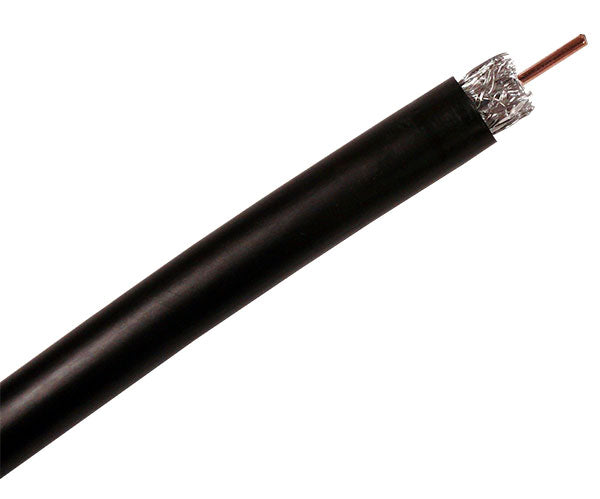

RG11 Coaxial Cable, Direct Burial, CATV, Outdoor, Dual Shield - 60% AL Braid Shielding; Bonded AL Foil, 14 AWG CCS, 1,000', Black

$163.34
SKU: CC-4555-11D
RohHS Compliant

Description

RG11 Direct Burial Coaxial Cable, for CATV Networking

Our RG11 Coaxial Cable is widely utilized for wiring satellite, digital CATV, and HDTV television networks, requiring a higher level of shielding for superior signal retention. With a denser jacket and a thicker conductor compared to RG6, the RG11 Coax Cable enables data transfer at twice the speed. We provide RG11 dual shield cable to maximize signal retention, ensuring even sharper and clearer digital pictures. Operating at 75 Ohms and sweep tested at 3GHz, the RG11 Coaxial Cable guarantees reliable performance for high-quality signal transmission. This cable is compatible with one of our RG11 connectors.

Applications

Coaxial Cable is used to transmit radio frequency energy. The advantage of coaxial is that the electromagnetic field carrying the signal occurs only in the space between the inner and outer conductors. With that said, it allows the cable to be installed next to metal objects without power loss. Coaxial Cable also provides protection of the signal from external electromagnetic interference. Coaxial Cables connects radio transmitters and receivers to their antennas, computer network (Internet) connections, digital audio (S/PDIF), and distributing cable television signals. Because of its durability and thicker copper conductor, RG11 coax cable is meant for long direct burial runs. This is an excellent solution for Tv cable wire projects.

Product Quality

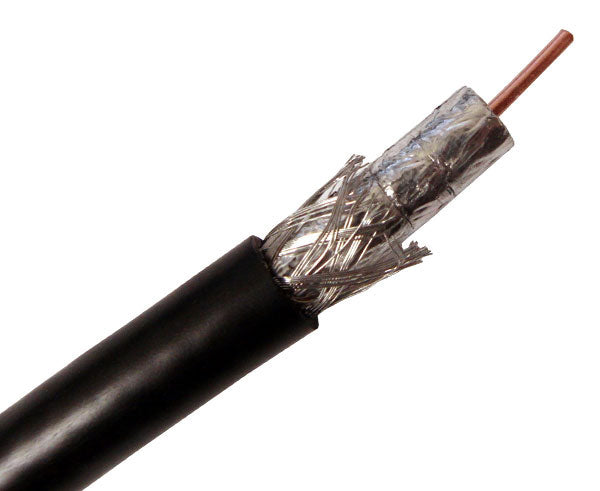

Our high-quality RG11 CATV Dual Shield Direct Burial Coaxial Cable consists of a 14 AWG solid Copper Clad Steel (CCS) inner conductor that transmits the signal. It is wrapped in dielectric polyethylene insulation. This RG11 coaxial cable comes with 60% aluminum wire braided shield. This is covered with a flame-rated PE jacket (CM). The RG11 maintains better signal and works at a higher frequency then the RG6 but it is a thicker cable making it less flexible.

4555 rg11 coax cable for tv cable wire

Where to use Dual Shielded DB Coaxial Cable

Our RG11 Direct Burial Coaxial Cable is made for outdoor Cable Television (CATV), audio/video networking, digital HDTV, TV antennas, and digital satellite installations. The cable's jacket is designated CL2 for outdoor coaxial cable used for networking projects that can handle moisture and sun exposure. The RG11 Coaxial Cable tops out at 75 ohms and does not keep a high Gigahertz.

Container and Trucking Quotes
To avoid excessive shipping charges on 10 or more of this product please call 951-824-1571 or email support@primuscable.com to get a shipping quote.

Features

Features

  • Higher signal quality for television, cable, and Internet
  • 14 AWG Solid CCS Conductors
  • 60% AL Braid Shielding & 100% AL Foil Bonded
  • Outdoor Rated Direct Burial Coaxial Cable
  • Direct Burial in Conduit Applications
  • 3 GHz Sweep-Tested
  • Impedance 75 Ohm
  • Excellent for CATV, Satellite, HDTV, TV Antenna, & Distribution
  • PE Jacket
  • UV Resistant Jacket
  • Improved Audio and Video Performance

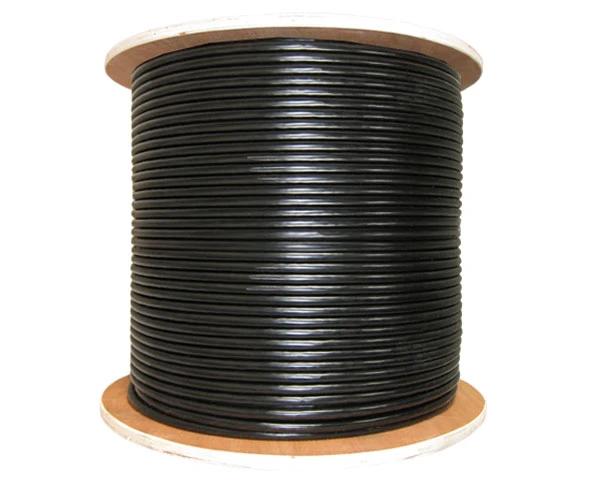

  • Supplied 1,000' Increments on Wooden Spool

Applications:

  • WLL
  • GPS
  • WLAN
  • WISP
  • WiMax
  • SCADA
  • Mobile Antennas

Specifications

Specifications


Physical Construction

Conductor Size 14 AWG
Conductor Material Copper Clad Steel CCS
Dielectric Material Foam
Shielding 60% AL Braiding & 100% AL Foil Bonded
Outer Jacket Material PE & UV Resistance

Electrical Characteristics

Nominal Impedance 75 Ohm
Nominal Velocity of Propagation 85%
Nominal Capacitance 50 Pf/M
Nominal Conductor DC Resistance DCR @ 20°C 102 Ohm/Km
Maximum Operating Voltage-UL 300 VRMS

Mechanical Characteristics

Storage Temperature Range -20°C to +60°C
Installation Temperature Range 0°C to +45°C
Operating Temperature Range -20°C to +60°C
Maximum Recommended Pulling Tension 260lbs
Minimum Bend Radius/Minor Axis 4in

Additional Information

Additional Information

To learn more about our RG11 Bulk Coaxial Cable here is a link to a page containing more information on our premium RG11 Bulk Coaxial Cable.

What's in the Box

What's in the Box

  • Qty - (1) RG11 Direct Burial 14 AWG Black CATV Coaxial Cable, 1,000ft on Wooden Spool
