Description
RG11 Riser CMR Coax Cable, 14 AWG CCS for CATV Surveillance System,
Our RG11 Coaxial Cable is frequently used for wiring satellite, digital CATV, and HDTV television networking requiring a higher level of shielding for signal retention. The RG11 Coax Cable has a denser jacket and thicker conductor compared to the RG6, enabling it to transfer data at double the speed. We offer RG11 dual shield cable to maximize signal retention for even sharper, clearer digital pictures. Remember to add one of our RG11 Connectors.
Applications
Coaxial Cable is used to transmit radio frequency energy. The advantage of coaxial is that the electromagnetic field carrying the signal occurs only in the space between the inner and outer conductors. With that said, it allows the cable to be installed next to metal objects without power loss. Coaxial Cable also protects the signal from external electromagnetic interference. Coaxial Cables connect radio transmitters and receivers to their antennas, computer network (Internet) connections, digital audio (S/PDIF), and distribute cable television signals. Because of its durability and thicker copper conductor, RG11 coax cable is meant for long direct burial runs. This is an excellent solution for TV cable wire projects.
Product Quality

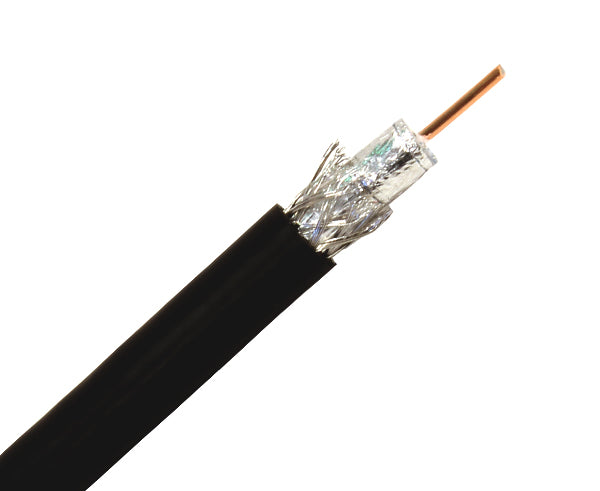

Our high-quality RG11 CATV Dual Shield Riser Coaxial Cable consists of a 14 AWG solid Copper Clad Steel (CCS) inner conductor that transmits the signal. It is wrapped in dielectric polyethylene insulation. This RG11 Coaxial Cable comes with a 60% aluminum wire braided shield and Bonded AL Foil. This is covered with a flame-rated PVC jacket (CMR). The RG11 maintains a better signal and works at a higher frequency than the RG6, but it is a thicker cable, making it less flexible.
Where to use Dual Shielded Riser Coaxial Cable
Our RG11 Riser Coaxial Cable is made for Cable Television (CATV), audio/video networking, digital HDTV applications, TV antennas, and digital satellite installations. The cable's jacket is designated CMR, CL2R for coaxial cable used for networking projects that run between floors in non-plenum areas. The RG11 Coaxial Cable tops out at 75 ohms and sweep-tested 3GHz.
RG11 Coaxial Cable CATV Options |
||||||
|---|---|---|---|---|---|---|
| Solid BC Conductor | Solid CCS Conductor | |||||
| Plenum BC (CMP) | Direct Burial CCS (CMX) | Indoor/Outdoor CCS (CM) | Riser CCS (CMR) | Plenum CCS (CMP) | ||
Features
Features
- Higher Signal Quality for Television, Cable, and Internet
- 14 AWG CCS Conductors
- 60% AL Braid Shielding + AL Foil
- Sun Resistant UV Rated Jacket for Outdoor
- Excellent For CATV, Satellite, Audio/Video, and HDTV
- Entry Point Feeder System
- Flame Retardant Jacket
- CL2R, CMR Rated Jacket
- UL-Listed
- 75 Ohm
- Sweep-Tested 3GHz
- Improved Audio and Video Performance
Applications:
- WLL
- GPS
- WLAN
- WISP
- WiMax
- SCADA
- Mobile Antennas
Specifications
Specifications
Physical Construction |
|
|---|---|
| Inner Conductor Material | Solid Copper Clad Steel (CCS) |
| Inner Conductor Size | 14 AWG |
| Insulation Material | Foamed PE |
| Shield Material | AL Foil Bonded + 60% AL Wire Braiding AL Foil Bonded + 40% AL Wire Braiding |
| Jacket Material | PVC |
Electrical Characteristics |
|
|---|---|
| Nominal Capacitance | 50 Pf/m |
| Nominal Impedance | 75 ± 3 Ohm |
| Nominal Velocity of Propagation | 85% |
Mechanical Characteristics |
|
|---|---|
| Operating Temperature | N/A |
Additional Information
Additional Information
To learn more about our RG11 Bulk Coaxial Cable, here is a link to a page containing more information on our premium RG11 Bulk Coaxial Cable.
What's in the Box
What's in the Box

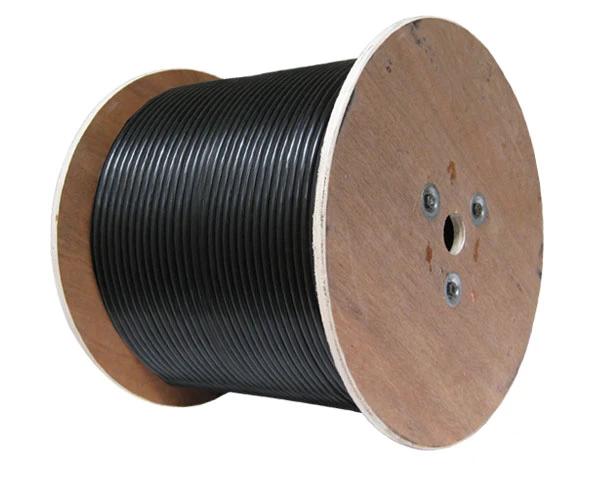

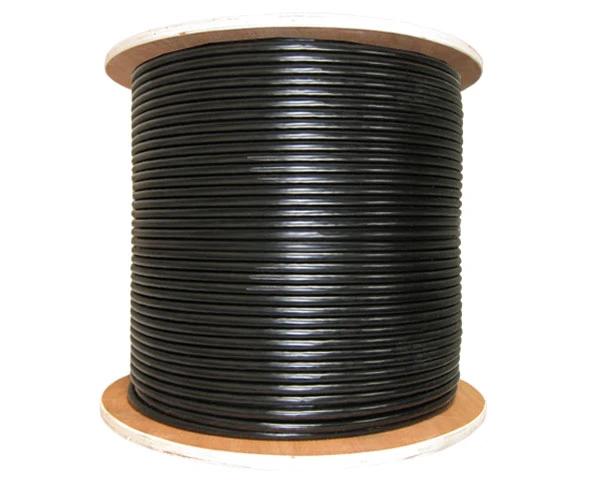

- Qty - (1) RG11 Riser Coax Cable, 14 AWG CCS, CATV, Black, 1,000' Increments on Wooden Spool
