RG11 Plenum Coaxial Cable, CATV, 14 AWG Solid BC, 65% AL Braid + AL Foil Shielding, 1,000ft, White
RG11 Dual Shield Plenum CMP Coax Cable, 14 AWG BC for CATV Surveillance System
Our RG11 Coaxial Cable is commonly used for wiring satellite, digital CATV and HDTV television networking since it requires higher level of shielding for signal retention. The RG11 Coax Cable has a denser jacket and thicker conductor than RG6, so it can transfer data at double the speed. We supply RG11 dual shield cable to maximize signal retention for even sharper, clearer digital pictures. The RG11 Coaxial Cable tops out at 75 Ohms and sweep tested at 3GHz. Don't forget to add on one of our RG11 Connectors.
Coaxial Cable is used to transmit radio frequency energy. The advantage of coaxial is that the electromagnetic field carrying the signal occurs only in the space between the inner and outer conductors. With that said, it allows the cable to be installed next to metal objects without power loss. Coaxial Cable also provides protection of the signal from external electromagnetic interference. Coaxial Cables connects radio transmitters and receivers to their antennas, computer network (Internet) connections, digital audio (S/PDIF), and distributing cable television signals.

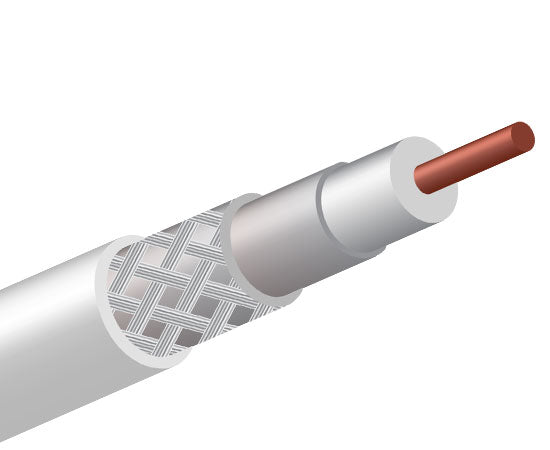

Our high quality RG11 CATV Dual Shield Plenum CMP Coaxial Cable consists of a 14 AWG solid Bare Copper (BC) inner conductor that transmits the signal. It is wrapped in a dielectric polyethylene insulation. This RG11 Coaxial Cable comes with 65% aluminum wire braided shield and Bonded AL Foil. This is covered with a flame rated PVC jacket (CMP). The RG11 maintains better signal and works at a higher frequency then the RG6 but it is a thicker cable making it less flexible.
Where to use Dual Shielded Plenum Coaxial Cable
Our RG11 Plenum Coaxial Cable is made for Cable Television (CATV), audio/video networking, digital HDTV applications, TV antennas, and digital satellite installations. The cable's jacket is designated CMP, CL2P for Coaxial Cable use in plenum areas. The RG11 Coaxial Cable tops out at 75 ohms and sweep-tested 3GHz.
A plenum space is the open area above the drop ceiling or below the floor that is used for air circulation in buildings. This could be a problem if there is ever a fire. Using non-plenum cables in a plenum space can spread fire and toxic smoke throughout a building. Plenum cable uses a flame-retardant jacket that is made of special plastics to prevent the release of harmful smoke. Plenum cable is mostly used in commercial applications such as schools and hospital buildings that house a large population of people. It also is required in most multi-floor business buildings with large plenum space areas.
RG11 Coaxial Cable CATV Options
|Solid BC Conductor||Solid CCS Conductor|
|Plenum BC (CMP)||Direct Burial CCS (CMX)||Indoor/Outdoor CCS (CM)||Riser CCS (CMR)||Plenum CCS (CMP)|
- Premium RG11 plenum Coaxial Cable
- Suitable for Digital HDTV, Cable Television (CATV), Digital Satellite, Audio/Video
- Sweep-Tested to 3.0 GHz.
- 75 Ohm
- 14 AWG Solid Bare Copper Center Conductor
- Aluminum Foil Bonded + 65% Aluminum Braid Shielding
- Plenum, CMP, CL2P Rated Jacket
- Meets current NEC guidelines, CATVP, CMP
- RoHS compliant
- 1,000', White
|Inner Conductor Material:||Solid Bare Copper (BC)|
|Inner Conductor Size:||14 AWG|
|Insulation Material:||Foamed FEP|
|Nominal Velocity of Propagation:||84%|
|Nominal Capacitance:||15.8 pF/ft|
|Nominal Impedance:||75 Ohm|
To learn more about our RG11 Bulk Coaxial Cable here is a link to a page containing more information on our premium RG11 Bulk Coaxial Cable. If you need assistance selecting a compatible connector, please contact us.
What's in the Box
What's in the Box
- 1,000' of White RG11 CATV CMP Dual Shield Plenum Coaxial Cable
