CCTV RG59 Coaxial Cable: 20 AWG Bare Copper, 95% Bare Copper Braid Shielding, 1000ft, Black

$121.79
SKU: CC1-3586BK-591BC
UL Listed logo ROHS Compliant logo

Description

RG59 Coaxial Cable for CCTV Wiring

The RG59 Coaxial Cable is commonly used to connect CCTV surveillance cameras and for radio frequency applications. With a CL2-designated jacket, it's perfect for in-wall installations and has a 75 Ohm resistance.

Applications

Coaxial Cable serves as a conduit for transmitting radio frequency energy, offering a distinct advantage: the electromagnetic field carrying the signal is confined to the space between the inner and outer conductors. This characteristic enables the cable to be installed adjacent to metal objects without experiencing power loss. Additionally, Coaxial Cable provides a shield against external electromagnetic interference, ensuring the integrity of the transmitted signal. It serves as the connection between radio transmitters and receivers and their respective antennas, facilitates computer network (Internet) connections, supports digital audio (S/PDIF), and distributes cable television signals. As such, RG59 Coax cable emerges as an optimal solution for TV cable wiring or coaxial Internet connections.

Product Quality

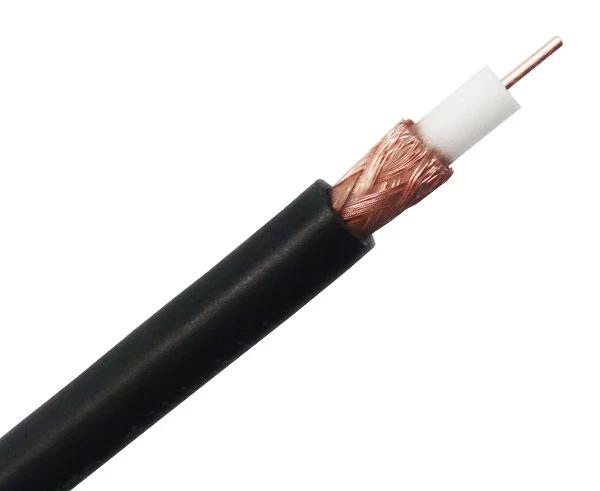

Our premium Coaxial Cable features a 20 AWG solid bare copper core conductor for optimal signal transmission. Encasing the conductor is a dielectric polyethylene insulation, complemented by 95% bare copper braided shielding. The cable is then encased in a flame-rated PVC jacket. Rest assured, our cables are UL-listed and comply with RoHS regulations.

RG59 Coaxial Cable - CCTV - 20 AWG BC, 95% BC Braid Shielding, 1000ft, Black



Where to use Coax Cable

A broad range of applications exist for coaxial cabling. It is widely used with home entertainment equipment such as TV, VCR, DVR, satellite receivers. It is also used with security cameras, and GPS Systems.

Container and Trucking Quotes
To avoid excessive shipping charges on 10 or more of this product please call 951-824-1571 or email support@primuscable.com to get a shipping quote.

Features

Features

  • Coaxial Cable for Radio Frequency Transmission of CCTV Audio/Video, and Surveillance Applications
  • Designated CL2 for In-Wall Installation
  • Foam PE Insulation with Black FR-PVC Approved for General Purpose Usage
  • 95% Bare Copper Braided Shielding for Signal Protection
  • 20 AWG Solid Bare Copper Center Conductor
  • Flame Rated PVC Jacket & UV Resistant
  • Ideal for CCTV Surveillance Applications
  • UL Listed
  • 75 Ohms
  • Common Connectors to Use are BNC, Type F, and RCA
  • Supplied in 1000' Pull Box

Specifications

Specifications

Additional Information

Additional Information

Where to use Coax Cable

To learn more about our RG59 Bulk Coaxial Cable here is a link to a page containing more information on our premium RG59 Bulk Coaxial Cable.

What's in the Box

What's in the Box

  • RG59 Coax Cable, Indoor, 20 AWG BC Conductor, 95% BC Braid Shielding

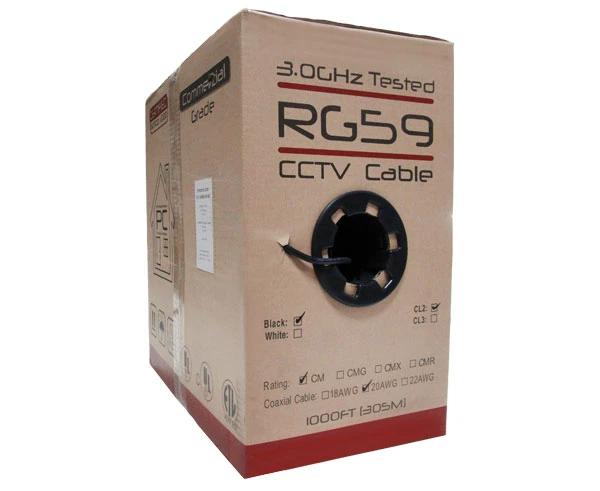

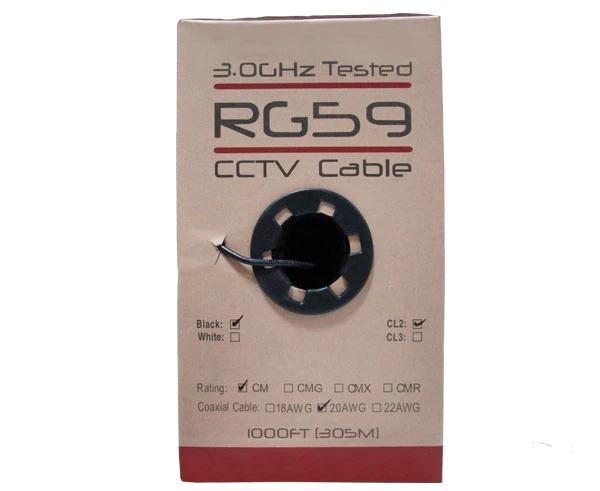

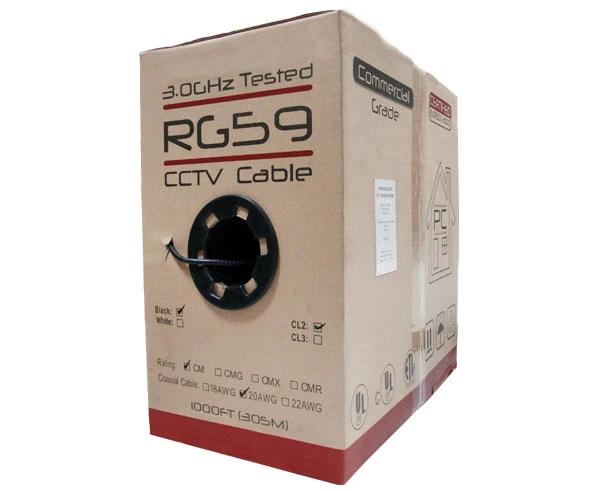

  • 1000 ft Pull Box
