1000ft RG59 Coaxial Cable for CCTV: 20 AWG Bare Copper, 95% CCA Braid Shielding, Black or White Options

$125.00
SKU: CC-1040BK-591BC
Color: Black
UL-Listed logo ETL-Verified logo ROHS Compliant logo

Description

Indoor RG59 Coaxial Cable for your CCTV Surveillance System

Our CCTV RG59 Coaxial Cable is a standard choice for wiring CCTV surveillance cameras and radio frequency applications. Featuring a CM jacket tailored for in-wall installation, this cable maintains a maximum resistance of 75 Ohms, making it unsuitable for high Gigahertz frequency support.

This cable is compatible with our CN3-2147-BNC RG59 Connector or CN3-2148-BNC RG59 Connector.

Applications

Coaxial Cable is used to transmit radio frequency energy. The advantage of coaxial is that the electromagnetic field carrying the signal occurs only in the space between the inner and outer conductors. With that said, it allows the cable to be installed next to metal objects without power loss. Coaxial Cable also provides protection of the signal from external electromagnetic interference. Coaxial Cables connects radio transmitters and receivers to their antennas, computer network (Internet) connections, digital audio (S/PDIF), and distributing cable television signals. This makes RG59 Coax cable an ideal solution for tv cable wire or coax cable for internet usage.

Product Quality

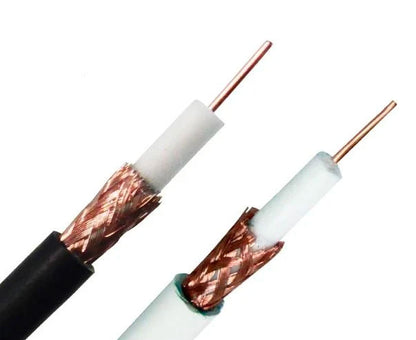

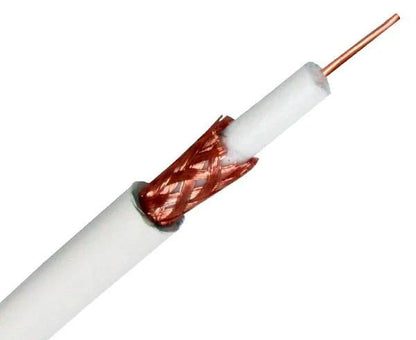

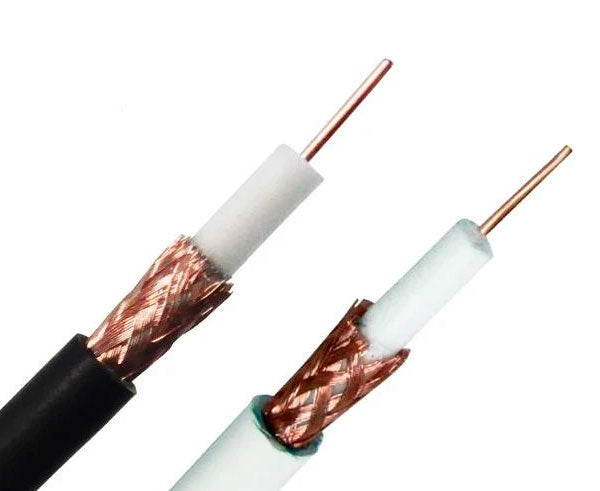

Our high quality Coaxial Cable consists of a 20 AWG solid bare copper inner conductor that transmits the signal. It is surrounded with a dielectric polyethylene insulation and 95% CCA braided shielding. This is covered with a flame rated PVC jacket. Our cables are UL listed and RoHS Compliant.

RG59 Coaxial Cable - CCTV - 20 AWG BC, 95% CCA Braid Shielding, 1000ft, Black or White

Where to use Coaxial Cable

A broad range of applications exist for coaxial cabling. It is widely used with home entertainment equipment such as TV, VCR, DVR, satellite receivers. It is also used with security cameras, and GPS Systems.

Container and Trucking Quotes
To avoid excessive shipping charges on 10 or more of this product please call 951-824-1571 or email support@primuscable.com to get a shipping quote.

Features

Features

  • Coaxial Cable Distribution of Audio/Video, Radio Frequency, and CCTV Transmissions
  • Designated CM for In-Wall Installation
  • RG59U Type Coaxial Cable
  • 20 AWG Solid Bare Copper Center Conductor for Optimal Signal Transmission
  • 95% CCA Wire Braiding
  • Flame Rated PVC Jacket
  • Polyethylene Dielectric
  • 75 Ohms
  • Indoor Cable Application (Non-Conduit per NEC) for CCTV
  • ETL Verified
  • UL Standard UL444: CM
  • RoHS Compliance
  • Black Jacket is UV Resistant
  • Supplied in 1000' Pull Box
  • Comes in Black or White

Specifications

Specifications

Additional Information

Additional Information

Where to use Coaxial Cable

To learn more about our RG59 Bulk Coaxial Cable here is a link to a page containing more information on our premium RG59 Bulk Coaxial Cable.

What's in the Box

What's in the Box

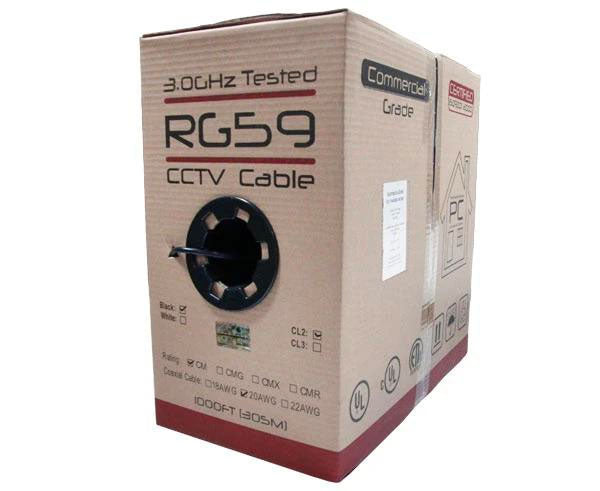

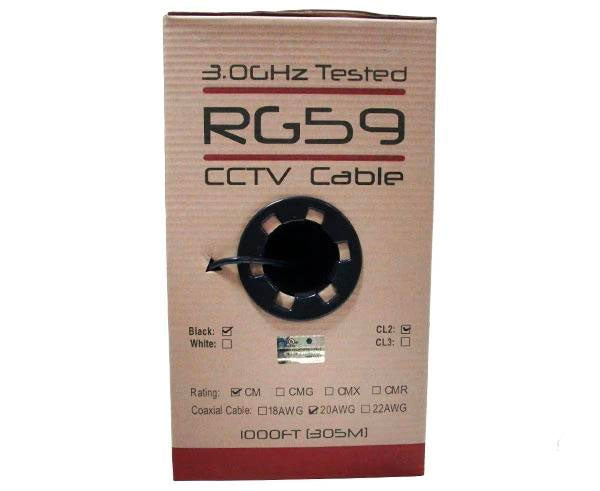

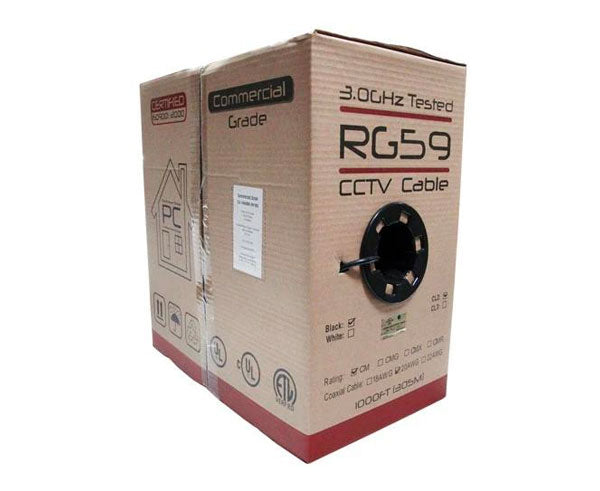

  • 1000' Pull Box of RG59 Coaxial Cable, Indoor, 20AWG BC Conductor, 95% CCA Braid
