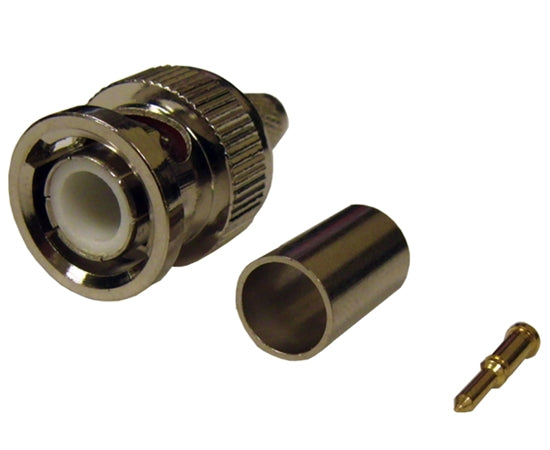

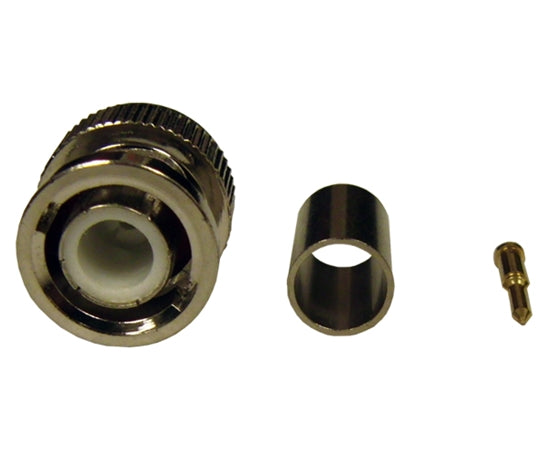

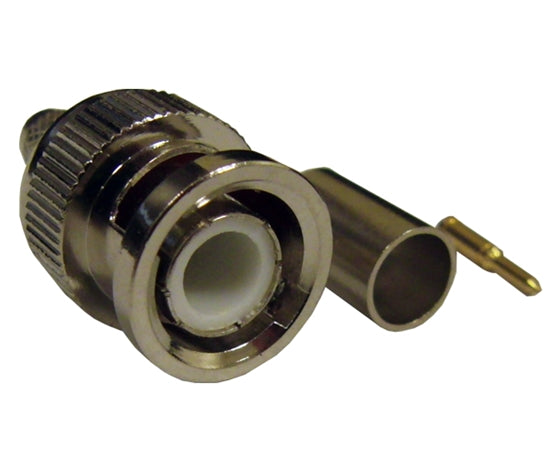

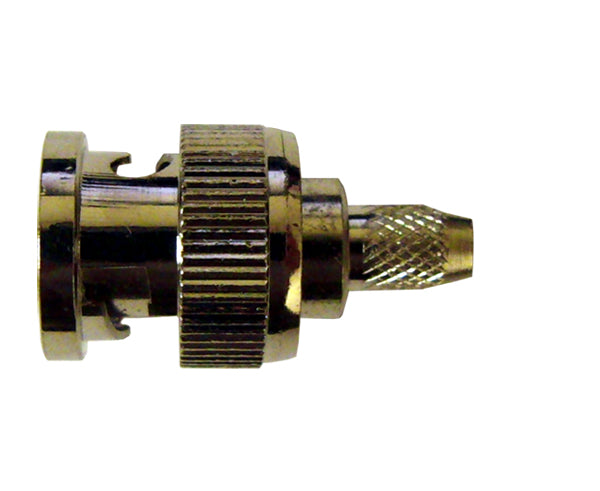

BNC RG59 Connector, Male 3-pc Crimp-on Style, Gold Plated Center Pin

$0.60
SKU: CN3-2149-BNC
Various lead times may apply to this product. Please contact us for more details.

Description

RG59 Coax Cable BNC Connector for Your Surveillance System Application

This 3-piece Crimp-On BNC Male Connector is utilizing RG59 coaxial cable when wiring CCTV surveillance systems. Common applications include: radio frequency, television, surveillance video cameras, and test instruments as well.

RG59 connectors for CCTV surveillance applications have a 75 Ohm impedance to maintain signal clarity. A BNC connector consists of two bayonet lugs on the female connector, and is connected with a simple quarter turn of the coupling nut.

Where to use Coaxial Cable

A broad range of applications exist for coaxial cabling. It is widely used with home entertainment equipment such as Cable Television (CATV), Digital HDTV, Audio / Video, and Digital Satellite. It is also used with security cameras, and GPS Systems.

Applications

Coaxial Cable is used to transmit radio frequency energy. The advantage of coaxial is that the electromagnetic field carrying the signal occurs only in the space between the inner and outer conductors. With that said, it allows the cable to be installed next to metal objects without power loss. Coaxial Cable also provides protection of the signal from external electromagnetic interference. Coaxial Cables connects radio transmitters and receivers to their antennas, computer network (Internet) connections, digital audio (S/PDIF), and distributing cable television signals.

Features

Features

  • Crimp style termination to RG59 coaxial cable
  • BNC Male Connector
  • Crimp-on Type
  • Gold plated center contacts minimize signal loss
  • True 75 Ohm BNC interface
  • 3 Piece type
  • Need Crimping Tool

Additional Information

Additional Information

To learn more about our BNC Coaxial Cable Connectors here is a link to a page containing more information on our premium BNC Coaxial Cable Connectors.

What's In The Box

What's In The Box

  • Qty 1 - RG59 3-piece Crimp-On BNC Male Connector
