RG59 Siamese Coaxial Cable: 20 AWG Bare Copper, 95% Bare Copper Braid, 18/2 Stranded Bare Copper, for CCTV

$289.00
SKU: CC1-1030WH-591SW
Length
Color: White
UL Listed logo ROHS Compliant logo

Minimum Quantity Order May Apply
1000' Supplied on a Wooden Spool

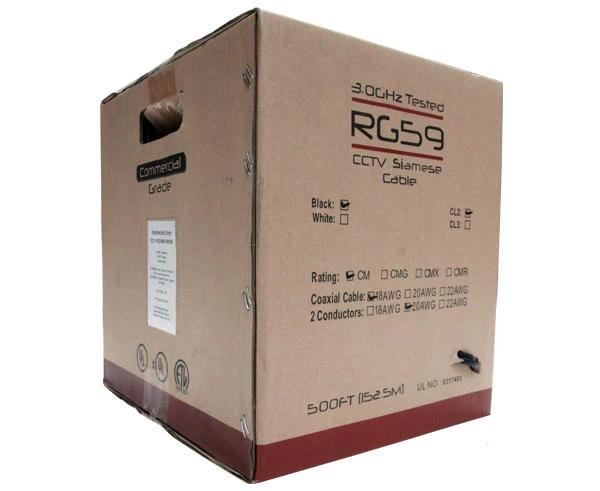

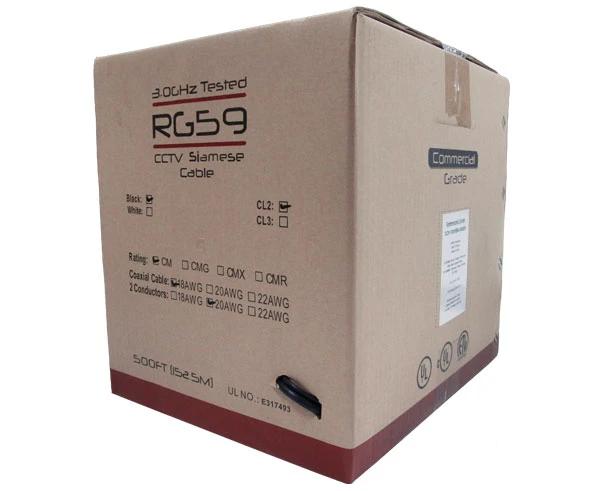

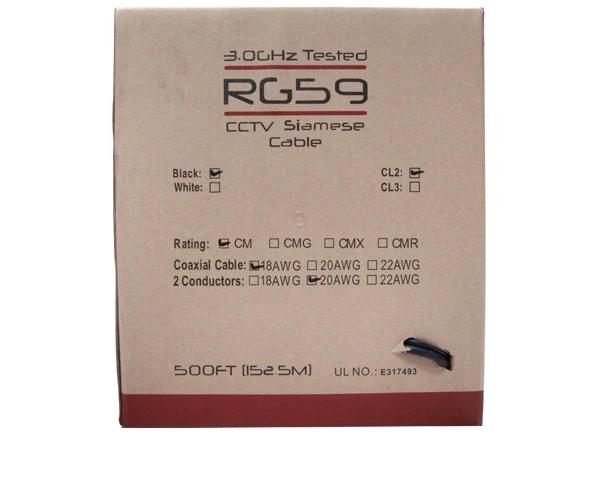

500' Supplied in a Reel in Box

Description

RG59 Siamese Coaxial Cable for Indoor CCTV Networking

The RG59 Siamese Coaxial Cable for CCTV systems efficiently transmits data and power in a single installation, commonly used for surveillance cameras and radio frequency applications. Its CL2-designated jacket is ideal for in-wall setups. With a maximum resistance of 75 Ohms, this cable is not suitable for high Gigahertz frequencies. Remember to add on one of our RG59 connectors.

Applications

Siamese Coaxial Cable serves as a conduit for transmitting radio frequency energy. Its key advantage lies in confining the electromagnetic field carrying the signal solely within the space between the inner and outer conductors. Consequently, it permits installation adjacent to metal objects without experiencing power loss. Additionally, Siamese-Coaxial Cable safeguards the signal from external electromagnetic interference. It facilitates connections between radio transmitters and receivers to antennas, computer network (Internet) connections, digital audio (S/PDIF), and the distribution of cable television signals.

Product Quality

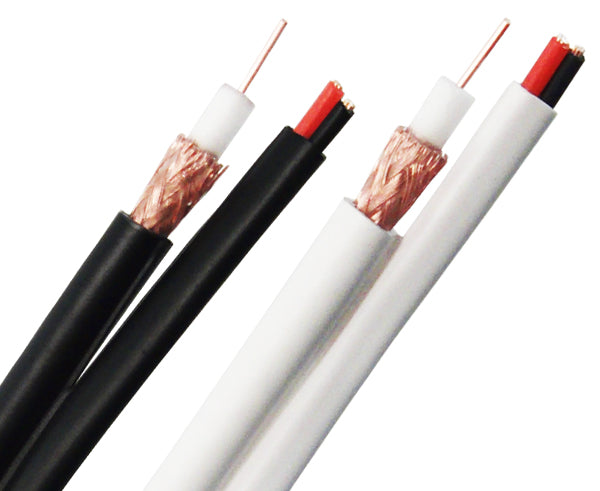

Siamese Coaxial Cable consists of a 20 AWG solid bare copper center conductor that transmits the signal. It is surrounded by Cellular Polyethylene Dielectric insulation and 95% bare copper braided shielding. It includes 2x 18 AWG stranded bare copper conductor with HDPE black & red insulation. This is covered with a CM-rated jacket. Our cables are UL-listed, ETL Verified, and RoHS Compliant.

RG59 Siamese Coaxial Cable, CCTV, 20 AWG BC, 95% BC Braid, 18/2 Stranded BC

Where to use Siamese Coaxial Cable

A broad range of applications exist for coaxial cabling. It is widely used with entertainment equipment such as TV, VCR, DVR, satellite receivers. It is also used with security cameras, and GPS Systems. Since this RG59 Siamese Coaxial Cable has a solid copper conductor and two stranded bare copper power wires, it is the perfect cable choice for any CCTV transmission or surveillance system to run power and data in a single pass. This RG59 siamese coaxial cable is available in both white or black jacket. The 500' is supplied on a reel in box or on a spool. The 1000' is supplied on a wooden spool. This makes RG59 Coax cable an ideal solution for tv cable wire or coax cable for internet usage.

Container and Trucking Quotes
To avoid excessive shipping charges on 10 or more of this product please call 951-824-1571 or email support@primuscable.com to get a shipping quote.

Features

Features

  • Data and Power CCTV Surveillance Cameras and Radio Frequency Applications.
  • 20 AWG Solid Bare Copper Center Conductor for Optimal Signal Integrity
  • Polyethylene Dielectric
  • 95% Bare Copper Braided Shielding to Prevent Signal Loss
  • 2x 18 AWG Stranded Copper Conductors
  • 1 GHz Sweep Test
  • Common Connectors to use are BNC, Type F, and RCA
  • Designated CL2 for In-Wall Installation
  • 75 Ohms
  • CM Rated
  • Flame Rated PVC Jacket
  • The black Jacket is UV Resistant
  • UL Listed
  • RoHS Compliant
  • The 500' is supplied on a reel in box or on a spool. The 1000' is supplied on a wooden spool.
  • Supplied in Black or White

Specifications

Specifications

Additional Information

Additional Information

Where to use Siamese Coaxial Cable

To learn more about our RG59 Bulk Coaxial Cable here is a link to a page containing more information on our premium RG59 Bulk Coaxial Cable.

What's in the Box

What's in the Box

  • RG59 Siamese Coaxial Cable, Indoor, 20 AWG, 2x 18 AWG Stranded Copper Power Wires, Black or White
  • 500' Supplied on a Reel in Box or on a Spool
  • 1000' Supplied on a Wooden Spool
