RG6 CATV Dual Shield Direct Burial Coaxial Cable, 18 AWG CCS, CM, 60percent AL Wire Braid, AL Foil Shield, Black, 925FT

SKU: SP-CC-3031BK-6D-925FT
No Returns Non-refundable Icon
This product is not your standard 1000ft spool. It has 75 feet cut from it. The remaining cable is still in great shape, practically new. This item is for sale as is.
ROHS Compliant logo Made in USA

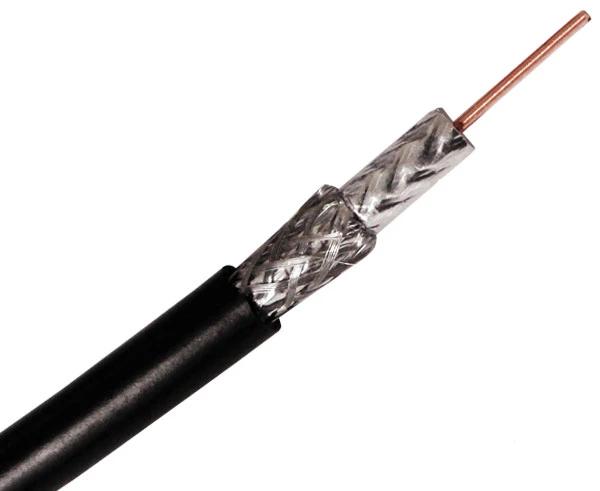

RG6 Outdoor Dual Shield Direct Burial Coaxial Cable, 18 AWG CCS, CM, 60% AL Wire Braid, AL Foil Shield

Our RG6 Coaxial Cable is commonly used for wiring satellite, digital CATV and HDTV television networking since it requires higher level of shielding for signal retention. The RG6 coax cable has a denser jacketing and thicker conductor then RG59, so it can transfer data at double the speed. We supply RG6 dual shield and quad shield cable to maximize signal retention for even sharper, clearer digital pictures. The RG6 Coaxial Cable tops out at 75 Ohms and sweep tested at 3GHz.


Coaxial Cable is used to transmit radio frequency energy. The advantage of coaxial is that the electromagnetic field carrying the signal occurs only in the space between the inner and outer conductors. With that said, it allows the cable to be installed next to metal objects without power loss. Coaxial Cable also provides protection of the signal from external electromagnetic interference. Coaxial Cables connects radio transmitters and receivers to their antennas, computer network (Internet) connections, digital audio (S/PDIF), and distributing cable television signals.

Product Quality

Our high quality RG6 CATV Dual Shield Direct Burial Coaxial Cable consists of an 18 AWG solid Copper Clad Steel (CCS) inner conductor that transmits the signal. It is wrapped in a dielectric polyethylene insulation. This RG6 coaxial cable comes with 60% aluminum wire braided shield. This is covered with a flame rated PE jacket (CM).

Where to use Dual Shielded DB Coaxial Cable

Our RG6 Direct Burial Coaxial Cable is made for outdoor Cable Television (CATV), audio/video networking applications, digital HDTV applications, CATV, outdoor and direct burial TV antennas, and digital satellite installations. The cable's jacket is designated CL2 for outdoor coaxial cable used for networking projects like outdoor CCTV systems require cable with adequate jacketing and insulation to handle moisture and sun exposure. The RG6 Coaxial Cable tops out at 75 ohms and does not keep a high Gigahertz.

Container and Trucking Quotes
To avoid excessive shipping charges on 10 or more of this product please call 951-824-1571 or email to get a shipping quote.



  • High-grade RG6 Dual Shield Direct Burial Coaxial Cable
  • Suitable for Outdoor Cable Television (CATV), Audio & Video Networking Applications
  • Sweep-Tested to 3.0 GHz
  • 75 Ohm
  • 18 AWG Solid Copper Clad Steel (CCS)
  • 100% Aluminum Foil Bonded
  • 60% Aluminum Wire Braiding
  • RoHS compliant
  • Supplied on wooden spool, Increments of a 1,000'
  • Foam Dielectric Core
  • CM Rated
  • PE Outer Jacket Material



Physical Characteristics

Conductor Size: 18 AWG
Conductor Material: Solid Copper Clad Steel (CCS)
Dielectric Material: Foam
Shielding: 100% AL Foil + 60% AL Wire Braid
Outer Jacket Material: PE

Electrical Characteristics

Nominal Impedance: 75 Ohm
Nominal Velocity of Propagation: 83%
Nominal Capacitance: 16.2 Pf/ft
Nominal Conductor DC Resistance DCR @ 20™C: 102 Ohm/km
Maximum Operating Voltage-UL: 350 VRMS

Mechanical Characteristics

Storage Temperature Range: N/A
Installation Temperature Range: N/A
Operating Temperature Range: -30™C to +60™C
Maximum Recommended Pulling Tension: 110 lbs.

Additional Information

Additional Information

To learn more about our RG6 Bulk Outdoor Coaxial Cable here is a link to a page containing more information on our premium RG6 Bulk Coaxial.

What's in the Box

What's in the Box

  • RG6 CATV Direct Burial Dual Shield Coaxial Cable, 18 AWG CCS, 60% AL Braid, 100% AL Foil
  • Supplied in black, 1,000' Increments on Wooden Spool
