RG6 Coaxial Cable for CCTV, 18 AWG Solid BC, CM, 95% BC Wire Braiding, 1,000ft, Black
Description
RG6 Coax Cable, 95% BC Wire Braid, 18 AWG BC, for CCTV Transmission and Audio/Video Applications
Our RG6 Coaxial Cable is widely used for the installation of satellite, digital CATV, and HDTV television networks, due to it requiring a higher level of shielding for optimal signal retention. Distinguished by a denser jacket and a thicker conductor compared to RG59, the RG6 coaxial cable facilitates data transfer at twice the speed. We offer both RG6 dual shield and quad shield cables to ensure maximize signal retention for an even sharper and clearer digital image. The RG6 Coaxial Cable is designed with a 75-ohm impedance and undergoes sweep testing at 3GHz.
This cable is compatible with our CN3-1594-59 BNC RG59 and CN2-7887-RG6 F-Type RG6 Connectors.
Applications
Coaxial Cable is used to transmit radiofrequency energy. The advantage of coaxial is that the electromagnetic field carrying the signal occurs only in the space between the inner and outer conductors. With that said, it allows the cable to be installed next to metal objects without power loss. Coaxial Cable also provides protection of the signal from external electromagnetic interference. Coaxial Cables connect radio transmitters and receivers to their antennas, computer network (Internet) connections, digital audio (S/PDIF), and distributing cable television signals. This makes RG6 Coax cable an ideal solution for tv cable wire or coax cable for internet usage.
Product Quality

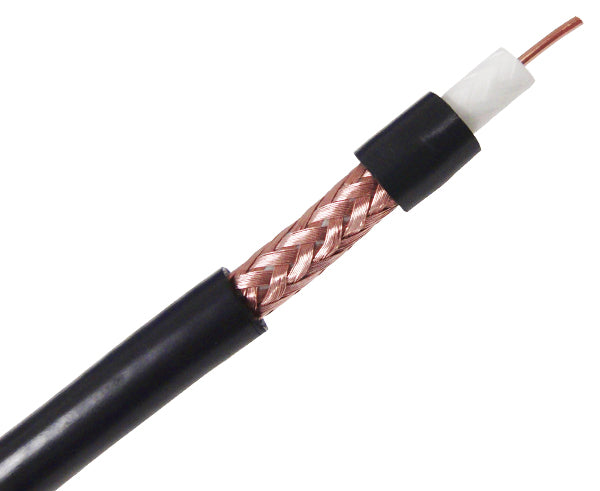

Our high-quality RG6 CCTV Coaxial Cable consists of an 18 AWG solid Bare Copper (BC) inner conductor that transmits the signal. It is wrapped in dielectric polyethylene insulation. This RG6 coaxial cable comes with a 95% solid bare copper wire braided shield. This is covered with a flame-rated PVC jacket (CM). Our cables are UL listed and RoHS Compliant.
Where to use Coaxial Cable
A broad range of applications exists for coaxial cabling. It is widely used with entertainment equipment such as Cable Television (CATV), Digital HDTV, Audio / Video, and Digital Satellite receivers in commercial settings such as schools and hospitals. It is also used with security cameras and GPS Systems. Since this RG6 Coaxial Cable has a solid copper conductor it is the perfect cable choice for any CCTV transmission or surveillance system and helps eliminate signal loss.
RG6 Coaxial Cable Options |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
CCTV |
CATV |
||||||||
| Single Conductor | Siamese | Single Conductor | Siamese | Single Conductor | Single Conductor | Single Conductor | Single Conductor | Single Conductor+ Messengar |
Single Conductor |
| Solid BC (CM) |
Solid BC (CM) |
Plenum BC (CMP) |
Plenum Siamese BC (CMP) |
Plenum BC (CMP) |
Plenum CCS (CMP) |
Solid BC (CMR) |
Solid CCS (CMR) |
Solid CCS (CMR) |
Outdoor CCS (CMX) |
Features
Features
- Premium RG6 Coaxial Bulk Cable
- Suitable For CCTV Transmission and Audio/Video Applications
- Sweep-Tested to 3.0 GHz
- 75 Ohm
- 18 AWG Solid Bare Copper (BC) Conductor
- 95% Bare Copper (BC) Wire Braiding Shield
- PVC Jacket
- Improved Audio and Video Performance
- Meets Current NEC Guidelines, CCTV, CM, CL2
- c(UL)us
- RoHS Compliant
- Supplied in 1000' Increments
- Supplied in a Pull Box
- UV Resistant Jacket
Specifications
Specifications
Physical Characteristics |
|
|---|---|
| Conductor Size: | 18 AWG |
| Conductor Material: | Solid Bare Copper (BC) |
| Dielectric Material: | Foam PE |
| Shielding: | 95% Bare Copper Wire Braiding |
| Outer Jacket Material: | FR PVC & UV Resistance |
Electrical Characteristics |
|
|---|---|
| Nominal Impedance: | 75 Ohm |
| Nominal Velocity of Propagation: | 83% |
| Nominal Capacitance (Pf/ft): | 16.2 |
| Maximum Operating Voltage-UL: | 350 VRMS |
Mechanical Characteristics |
|
|---|---|
| Operating Temperature Range: | -20™C to +60™C |
| Maximum Recommended Pulling Tension: | 110 lbs |
| Minimum Bend Radius/Minor Axis: | 3 in. |
Additional Information
Additional Information
To learn more about our RG6 Bulk Coaxial Cable here is a link to a page containing more information on our premium RG6 Bulk Coaxial Cable.
What's in the Box
What's in the Box
- 1,000ft Pull Box of Black RG6 Coaxial Bulk Cable, 18 AWG BC, 95% Bare Copper Wire Braiding
