RG6 Coaxial Cable, Dual Shield CMR, 18 AWG CCS, AL Foil Bonded + 60% AL Braid, Black or White, 1000ft and 500ft

SKU: CC-1017BK-6B
Color: Black
UL Listed    RohHS Compliant    ETL_Listed


RG6 Dual Shielded Coax Cable, for Digital HDTV and CATV

Our RG6 Coaxial Cable is ideal for installing satellite, digital CATV, and HDTV television networks due to its superior shielding and signal retention capabilities. Its denser jacket and thicker conductor compared to RG59 enable double the data transfer speed. To further enhance signal retention and ensure crystal-clear digital imagery, our RG6 coaxial cable comes in dual shield and quad shield options. Its 75-ohm impedance and 3GHz sweep testing ensure reliable performance.

This cable is compatible with our CN3-1594-59 BNC RG59 and CN2-7887-RG6 F-Type RG6 Connectors.


Coaxial Cable is used to transmit radio frequency energy. The advantage of coaxial is that the electromagnetic field carrying the signal occurs only in the space between the inner and outer conductors. With that said, it allows the cable to be installed next to metal objects without power loss. Coaxial Cable also provides protection of the signal from external electromagnetic interference. Coaxial Cables connects radio transmitters and receivers to their antennas, computer network (Internet) connections, digital audio (S/PDIF), and distributing cable television signals. This makes RG6 cable an ideal solution for coax cable for internet usage.

Product Quality

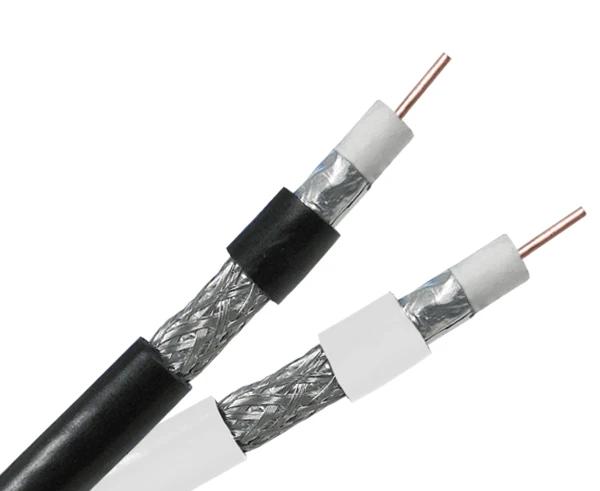

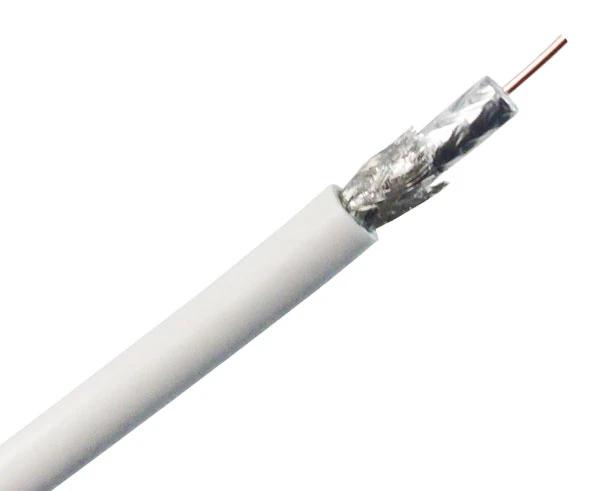

Our high-quality RG6 Coaxial Cable consists of an 18 AWG solid Copper-Clad Steel (CCS) inner conductor that transmits the signal. It is wrapped in dielectric polyethylene insulation. This RG6 dual-shielded coaxial cable comes with aluminum foil bonded and a 60% aluminum braided shield. This is covered with a flame-rated PVC jacket. Our cables are UL-listed and RoHS Compliant.

1017 rg6 coax cable for internet

Where to use Coaxial Cable

A broad range of applications exist for coaxial cabling. It is widely used with home entertainment equipment such as Cable Television (CATV), Digital HDTV, Audio / Video, and Digital Satellite. It is also used with security cameras and GPS Systems.

Container and Trucking Quotes
To avoid excessive shipping charges on 10 or more of this product please call 951-824-1571 or email to get a shipping quote.



  • High-grade RG6, RG6U Coaxial Cable
  • Suitable for Digital HDTV, Digital Satellite, Cable Television CATV, and Audio/Video Applications
  • Gas-Injected Cellular Polyethylene Dielectric
  • Sweep-Tested to 3GHz
  • 75 Ohm Impedance
  • 18 AWG Solid Copper Clad Steel (CCS)
  • 95% Aluminum Foil Bonded
  • 60% Aluminum Braid Shield
  • UL-Listed
  • CMR Rated and RoHS Compliant
  • PVC Outer Jacket Material
  • Black Jacket is UV-Resistant

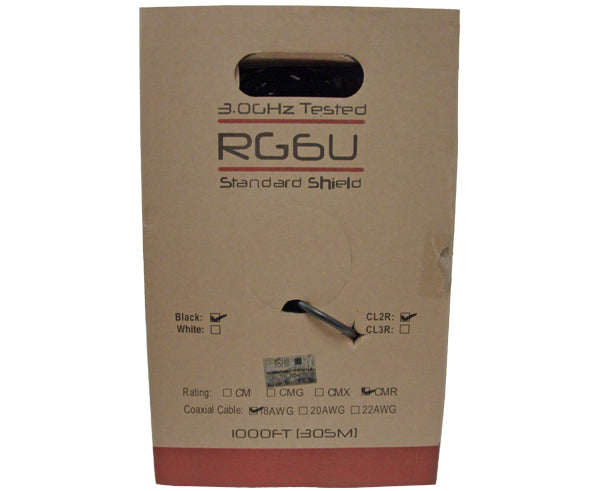

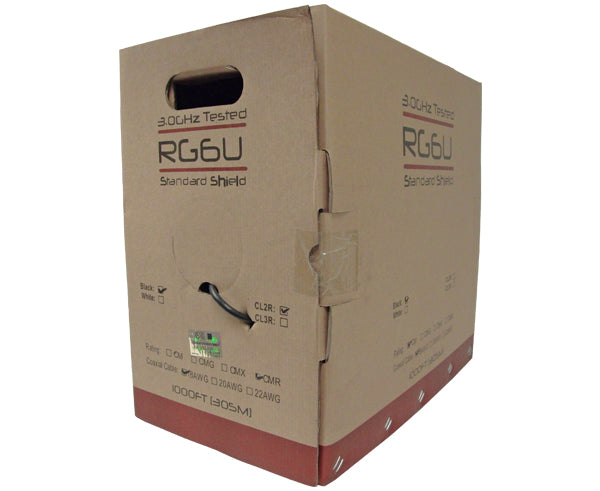

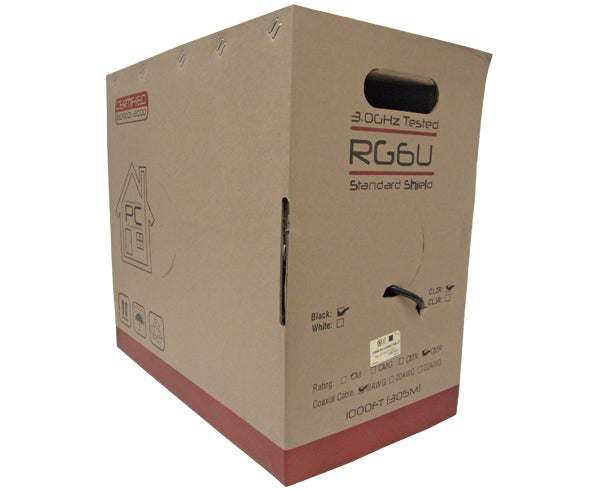

  • Supplied in Pull Boxes
  • Sold in 500' and 1000' Lengths



Physical Characteristics

Conductor Size 18 AWG
Conductor Material Solid Copper Clad Steel (CCS)
Insulation Material Foam PE
Foil Shielding 95% AL Foil Bonded
Braid Shielding 60% AL Braiding
Outer Jacket Material PVC - Polyvinyl Chloride Black Jacket

Electrical Characteristics

Nominal Impedance 75 Ohm
Nominal Velocity of Propagation 85%
Nominal Capacitance 53 Pf/M
Nominal Conductor DC Resistance N/A
Maximum Operating Voltage-UL 300 VRMS
Structure Return Lost 20dB

Mechanical Characteristics

Storage Temperature Range -20ºC to +60ºC
Installation Temperature Range 0ºC to +45ºC
Operating Temperature Range -20ºC to +60ºC
Maximum Recommended Pulling Tension 126 lbs.
Minimum Bend Radius/Minor Axis 2.750 in.

Additional Information

Additional Information

To learn more about our RG6 Bulk Coaxial Cable here is a link to a page containing more information on our premium RG6 Bulk Coaxial Cable.

What's in the Box

What's in the Box

  • RG6 Dual Shield Coaxial Cable, 18 AWG CCS, 60% AL Braid, 1,000FT/500FT, Black or White
