RG6 Coaxial Cable, Dual Shielded Riser CMR, 18 AWG BC, 100% Bonded AL Foil + 60% AL Braid, 1,000ft, Black or White
Description
RG6 Dual Shield Riser CMR Coax Cable for Digital HDTV, CATV and Digital Satellite
Our RG6 Coaxial Cable is commonly used for wiring satellite, digital CATV and HDTV television networking since it requires higher level of shielding for signal retention. The RG6 coax cable has a denser jacketing and thicker conductor then RG59, so it can transfer data at double the speed. We supply RG6 dual shield and quad shield cable to maximize signal retention for even sharper, clearer digital pictures. The RG6 Coaxial Cable tops out at 75 Ohms and sweep tested at 3GHz.
This cable is compatible with our CN3-1594-59 BNC RG59 and CN2-7887-RG6 F-Type RG6 Connectors.
Applications
Coaxial Cable is used to transmit radio frequency energy. The advantage of coaxial is that the electromagnetic field carrying the signal occurs only in the space between the inner and outer conductors. With that said, it allows the cable to be installed next to metal objects without power loss. Coaxial Cable also provides protection of the signal from external electromagnetic interference. Coaxial Cables connects radio transmitters and receivers to their antennas, computer network (Internet) connections, digital audio (S/PDIF), and distributing cable television signals. This makes RG6 cable an ideal solution for coax cable for internet usage.
Product Quality

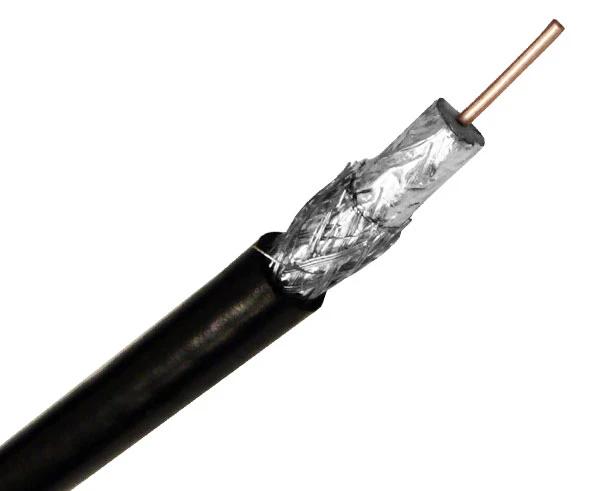

Our high quality RG6 Coaxial Cable consists of an 18 AWG solid Bare Copper (BC) inner conductor that transmits the signal. It is wrapped in a dielectric polyethylene insulation. This RG6 dual shielded Riser CMR coaxial cable comes with bonded aluminum foil and 60% aluminum braided shield. This is covered with a flame rated PVC jacket. Our cables are UL listed and RoHS Compliant. This high grade shielded RG6 coaxial cable is well suited for vertical CATV installations.
Where to use Coaxial Cable
A broad range of applications exist for coaxial cabling. It is widely used with home entertainment equipment such as Cable Television (CATV), Digital HDTV, Audio / Video, and Digital Satellite. It is also used with security cameras, and GPS Systems.
RG6 Coaxial Cable Options |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
CCTV |
CATV |
||||||||
| Single Conductor | Siamese | Single Conductor | Siamese | Single Conductor | Single Conductor | Single Conductor | Single Conductor | Single Conductor+ Messengar |
Single Conductor |
| Solid BC (CM) |
Solid BC (CM) |
Plenum BC (CMP) |
Plenum Siamese BC (CMP) |
Plenum BC (CMP) |
Plenum CCS (CMP) |
Solid BC (CMR) |
Solid CCS (CMR) |
Solid CCS (CMR) |
Outdoor CCS (CMX) |
Features
Features
- High-grade RG6, RG6U Coaxial Cable
- Riser CMR Jacket
- Suitable for Digital HDTV, Digital Satellite, Cable Television CATV, and Audio/Video Applications
- Sweep-Tested to 3GHz
- 75 Ohm Impedance
- 18 AWG Solid Bare Copper (BC)
- 100% Aluminum Foil Bonded
- 60% Aluminum Braid Shield
- UL Listed
- CMR, CL2 and RoHS Compliant
- FR-PVC Outer Jacket Material
- Black Jacket is UV Resistant

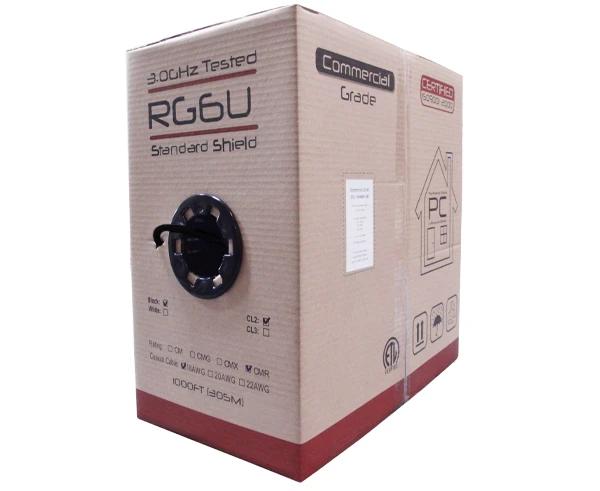

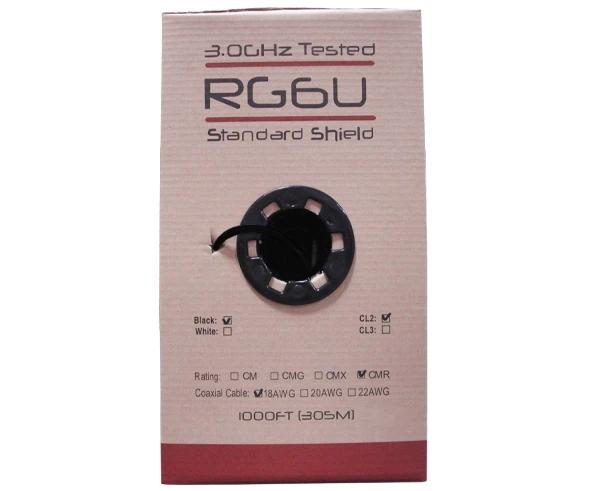

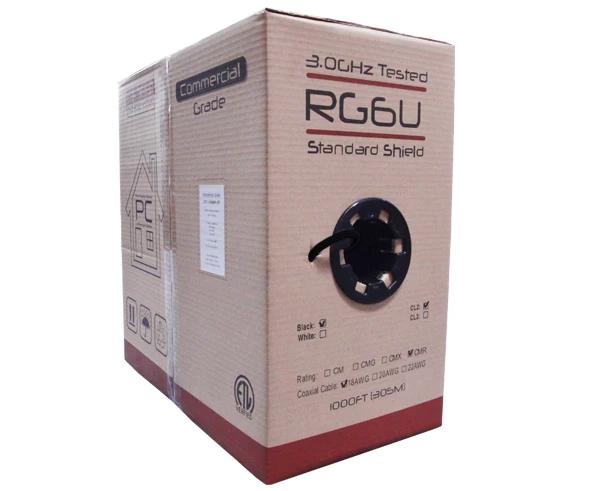

- Supplied in Pull Boxes
- Sold in 1000' Lengths
Specifications
Specifications
Physical Construction |
|
|---|---|
| Inner Conductor Material: | Solid Bare Copper |
| Inner Conductor Size: | 18 AWG |
| Dielectric Material: | Foamed PE |
| Outer Jacket Material: | FRPVC & UV Resistance |
| Shielding: | AL Foil + 60% AL Wire Braiding |
Electrical Characteristics |
|
|---|---|
| Nominal Impedance: | 75 Ohm |
| Nominal Velocity of Propagation: | 84% |
| Nominal Capacitance: | 15.8 Pf/ft |
| Nominal Conductor DC Resistance DCR @ 20™C: | 21.1 Ohm / 1 km |
| Maximum Operating Voltage-UL: | N/A |
Mechanical Characteristics |
|
|---|---|
| Operating Temperature: | -20™C +60™C |
Additional Information
Additional Information
To learn more about our Bulk RG6 Coaxial Cable here is a link to a page containing more information on our premium RG6 Coaxial Cable.
What's in the Box
What's in the Box
- RG6 Dual Shield CMR Coaxial Cable, 18 AWG BC, 60% AL Braid, 1,000™, Black or White
